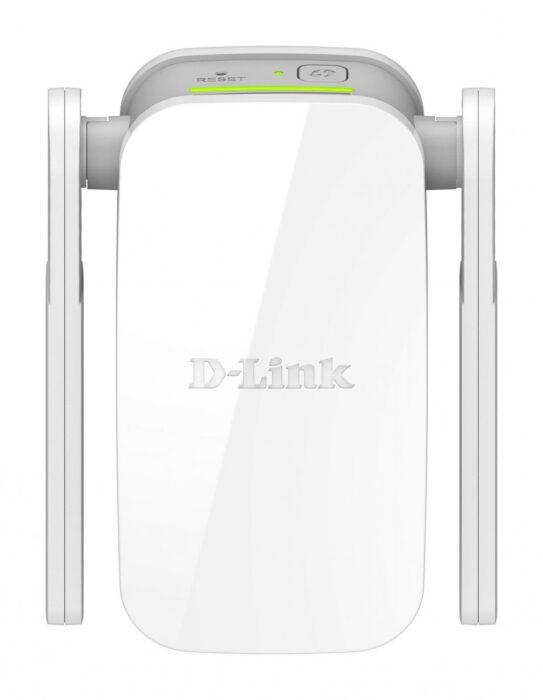

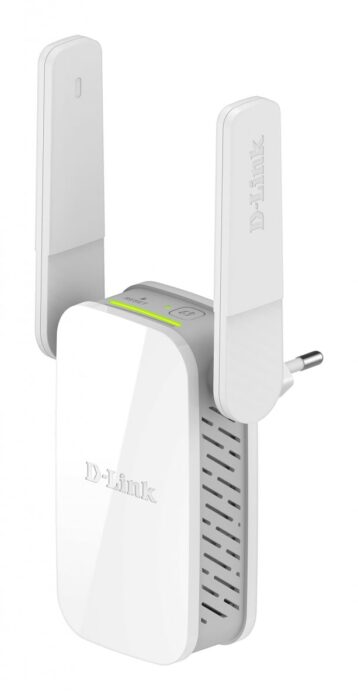

D-Link DAP-1610 Network Transmitter & Receiver White 10, 100 Mbit/s

The D-Link DAP-1610 is a network transmitter and receiver with a data transfer rate of 1167 Mbit/s. It supports Ethernet LAN data rates of 10 and 100 Mbit/s and features an external antenna for optimal connectivity. This device is compatible with 10/100Base-T(X) cabling technology and adheres to networking standards such as IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, and IEEE 802.3ab. It also complies with Wi-Fi standards 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, and Wi-Fi 4 (802.11n). The product is presented in a white color and includes LED indicators for signal strength, status, and WPS. It is certified by FCC, CE, UL, and IC. The device operates on an AC input voltage range of 100 – 240 volts with an AC input frequency of 50 – 60 Hz.

Performance

Type
Type
Network transmitter & receiver
show more


Data transfer rate
Data transfer rate
1167 Mbit/s
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100 Mbit/s
show more


WPS push button
Yes
show more


Plug and Play
Plug and Play
Yes
show more

Antenna

Antennas quantity
2
show more


Antenna type
Antenna type
External
show more

Network

Cabling technology
Cabling technology
10/100Base-T(X)
show more


Networking standards
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab
show more


Wi-Fi
Wi-Fi
Yes
show more


Wi-Fi standards
Wi-Fi standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
show more


Wi-Fi data rate (max)
1167 Mbit/s
show more


Wi-Fi band
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
show more


Web-based management
Web-based management
Yes
show more


Security algorithms
Security algorithms
WPA, WPA2
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more

Design

Product colour
Product colour
White
show more


LED indicators
Signal strength, Status, WPS
show more


Reset button
Yes
show more


Certification
FCC, CE, UL, IC
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 35 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
97.9 mm
show more


Depth
Depth
50.7 mm
show more


Height
Height
48.7 mm
show more


Weight
Weight
120 g
show more

Packaging data

Package width
Package width
104 mm
show more


Package depth
Package depth
161 mm
show more


Package height
Package height
94 mm
show more


Package weight
Package weight
313 g
show more

Logistics data

Master (outer) cases per pallet (sea)
50 pc(s)
show more


Pallet gross weight (sea)
361 kg
show more


Pallet height (air)
120.6 cm
show more


Products per pallet (sea)
1000 pc(s)
show more


Pallet height (sea)
192 cm
show more


Harmonized System (HS) code
85176990
show more


Shipping (inner) case gross weight
6.98 kg
show more


Pallet gross width
110 cm
show more


Pallet gross length
120 cm
show more


Shipping (inner) case net weight
6.26 kg
show more


Shipping (inner) case length
50.1 cm
show more


Shipping (inner) case width
22.7 cm
show more


Products per shipping (inner) case
20 pc(s)
show more


Pallet gross weight (air)
221.4 kg
show more


Products per pallet (air)
600 pc(s)
show more


Master (outer) cases per pallet (air)
30 pc(s)
show more


Shipping (inner) case height
35.7 cm
show more
