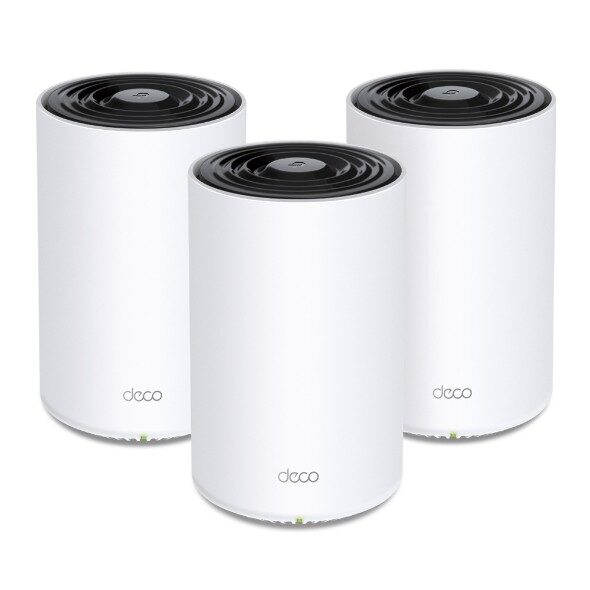

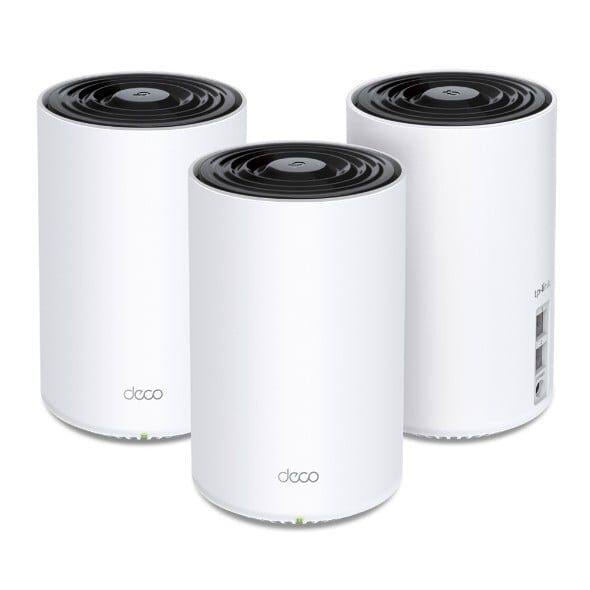

TP-LINK Deco X68 AX3600 Wi-Fi 6 Tri-Band Whole-Home Mesh System, 3-pack

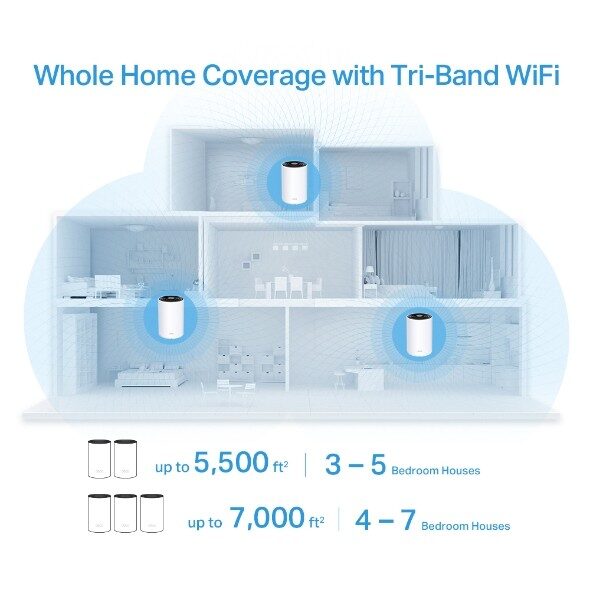

The Deco X68 (3-pack) is a tri-band whole-home mesh system that offers extensive Wi-Fi coverage throughout multiple rooms and floors. Each unit in the system has a compact design with dimensions of 105 mm in width, 105 mm in depth, and 168 mm in height, and features a sleek white finish. The internal antennas are designed to provide robust and wide-ranging network coverage. With the latest Wi-Fi 6 technology, the system supports multiple Wi-Fi standards, including 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), and Wi-Fi 6 (802.11ax), ensuring compatibility with a broad range of devices. The tri-band frequencies include 2.4 GHz and two 5 GHz bands, which help optimize bandwidth distribution and enhance connection stability. Powered by a 1.5 GHz processor, the system includes security features like an SPI firewall and supports TP-Link ID for cloud services, improving user control and network management. The AC adapter works with a voltage range of 100 – 240 V and operates at a frequency of 50/60 Hz, with a 12 V output voltage. LED indicators for power status are included to provide visual feedback on system operation.

Design

Product colour
Product colour
White
show more


LED indicators
Power
show more


Antenna type
Antenna type
Internal
show more


Antennas quantity
5
show more


Number of devices supported
Number of devices supported
150
show more


Transmit power
CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz); FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz)
show more


Reset button
Yes
show more

Wireless LAN features

Wi-Fi band
Wi-Fi band
Tri-band (2.4 GHz / 5 GHz / 5 GHz)
show more


Top Wi-Fi standard
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
show more


Wi-Fi standards
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
show more


WLAN data transfer rate (first band)
574 Mbit/s
show more


WLAN data transfer rate (second band)
1201 Mbit/s
show more


WLAN data transfer rate (third band)
1802 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
show more


Security algorithms
Security algorithms
WPA, WPA2, WPA3
show more


Number of guest networks (2.4 GHz)
1
show more


Point-to-point protocol over Ethernet (PPPoE)
Point-to-point protocol over Ethernet (PPPoE)
Yes
show more


Static IP
Yes
show more


Dynamic IP
Yes
show more


Tagged VLAN
Yes
show more


IGMP snooping
Yes
show more


IGMP proxy
Yes
show more


Dynamic DNS (DDNS)
Yes
show more

Features

Built-in processor
Built-in processor
Yes
show more


Processor frequency
Processor frequency
1.5 GHz
show more


Processor cores
Processor cores
4
show more


Cloud services supported
TP-Link ID
show more


Quality of Service (QoS) support
Yes
show more


Port forwarding
Yes
show more


Firewall security
Firewall security
SPI Firewall
show more


BeamForming
Yes
show more


Transmitting power (CE)
<20 dBm (2.4 GHz) <23 dBm (5 GHz)
show more


Transmitting power (FCC)
<30 dBm (2.4 GHz) <30 dBm (5 GHz)
show more


NAT functionality
Port Forwarding
UPnP
show more


Universal Plug and Play (UPnP)
Yes
show more


DHCP server
DHCP server
Yes
show more


DHCP client
DHCP client
Yes
show more


Parental control features
Content filter, Custom profiles, Pause the Internet, Time controls
show more


Parental control
Yes
show more


Firmware upgradeable via
Network
show more


Supported WAN type
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
show more


MU-MIMO technology
Yes
show more


MIMO
Yes
show more


Operating modes
Router, Access Point
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


DC-in jack
DC-in jack
Yes
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50/60 Hz
show more


AC adapter output voltage
12 V
show more


AC adapter output current
2.5 A
show more

Certificates

Certification
CE, FCC, IC, RoHS, RCM, JPA, JRF, VCCI
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
105 mm
show more


Depth
Depth
105 mm
show more


Height
Height
168 mm
show more

Packaging content

Number of products included
Number of products included
3 pc(s)
show more


AC adapter included
Yes
show more


Number of units included
3 pc(s)
show more


Ethernet cable
Yes
show more

Logistics data

Harmonized System (HS) code
85171800
