D-Link DEM-410T Network Transceiver Module Copper 10000 Mbit/s SFP+

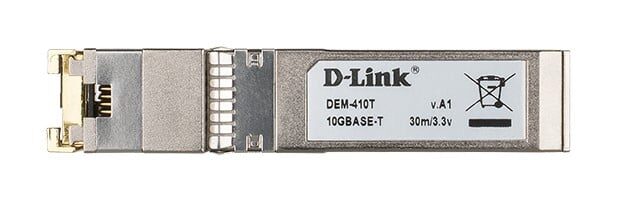

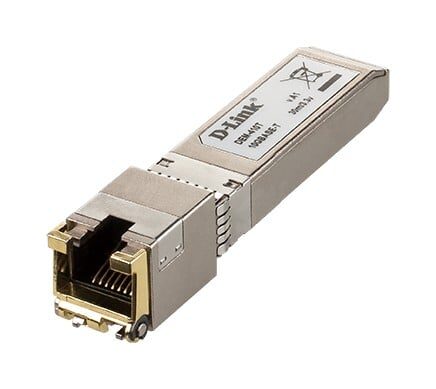

The D-Link DEM-410T is a copper SFP transceiver designed for rapid data transfer with a maximum rate of 10,000 Mbit/s. It utilizes an SFP+ interface and features a distinctive gold and silver color scheme. This product is built for longevity with a mean time between failures (MTBF) of 217,186 hours. It operates with an input voltage of 3.3 V and adheres to important compliance certificates, including RoHS. Additionally, it meets safety standards such as LVD and is certified by CE, FCC, and VCCI. The transceiver's dimensions are compact, with a width of 13.7 mm, a depth of 68 mm, and a height of 8.5 mm.

Performance

SFP transceiver type
Copper
show more


Maximum data transfer rate
Maximum data transfer rate
10000 Mbit/s
show more


Interface type
SFP+
show more


SFP transceiver standard
T
show more


Maximum transfer distance
Maximum transfer distance
30 m
show more


Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
10 Gigabit Ethernet
show more


Networking standards
Networking standards
IEEE 802.3ab, IEEE 802.3an
show more


Fiber ethernet cabling technology
10GBASE, 1000BASE
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more

Features

Product colour
Product colour
Gold, Silver
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
217186 h
show more

Power

Input voltage
Input voltage
3.3 V
show more

Certificates

Compliance certificates
RoHS
show more


Safety
Safety
LVD
show more


Certification
CE, FCC, VCCI
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 60 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
13.7 mm
show more


Depth
Depth
68 mm
show more


Height
Height
8.5 mm
show more


Weight
Weight
20 g
show more

Packaging data

Package width
Package width
74 mm
show more


Package depth
Package depth
131 mm
show more


Package height
Package height
49 mm
show more


Package weight
Package weight
64 g
show more

Logistics data

Pallet gross weight (sea)
272 kg
show more


Pallet height (air)
199 cm
show more


Pallet gross width
122 cm
show more


Master (outer) cases per pallet (sea)
60 pc(s)
show more


Products per pallet (sea)
3000 pc(s)
show more


Shipping (inner) case gross weight
4.2 kg
show more


Pallet height (sea)
199 cm
show more


Shipping (inner) case length
36 cm
show more


Pallet gross length
102 cm
show more


Shipping (inner) case height
31 cm
show more


Shipping (inner) case width
26 cm
show more


Shipping (inner) case net weight
3.2 kg
show more


Products per shipping (inner) case
50 pc(s)
show more


Master (outer) cases per pallet (air)
60 pc(s)
show more


Pallet gross weight (air)
272 kg
show more


Products per pallet (air)
3000 pc(s)
show more


Harmonized System (HS) code
85369010
show more
