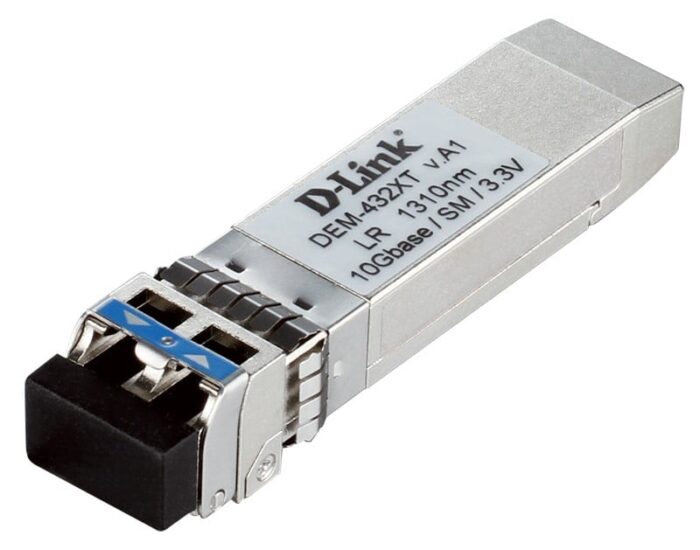

D-Link DEM-432XT Network Transceiver Module, Fiber Optic, 10000 Mbit/s, SFP+, 1310 nm

The D-Link DEM-432XT is a fiber optic SFP transceiver designed for high-speed data transfer with a maximum rate of 10,000 Mbit/s. It features an SFP+ interface and comes in a gold, metallic finish. The product boasts a mean time between failures (MTBF) of 4,650,000 hours, ensuring reliability and longevity. It operates with a maximum voltage of 3.3 V and a maximum current of 300 A. The transceiver complies with RoHS standards and meets safety certifications including UL, TUV, and CDRH. It is also certified by CE, FCC, VCCI, and MSA. The dimensions of the transceiver are 14.8 mm in width, 11.8 mm in depth, and 56.5 mm in height.

Performance

SFP transceiver type
Fiber optic
show more


Maximum data transfer rate
Maximum data transfer rate
10000 Mbit/s
show more


Interface type
SFP+
show more


Single-mode fiber (SMF) supported
Yes
show more


Multi-mode fiber (MMF) supported
No
show more


Fiber optic connector
Fiber optic connector
LC
show more


Fiber cable diameters supported (core/cladding)
9/125 µm
show more


SFP transceiver standard
LR
show more


Maximum transfer distance
Maximum transfer distance
10000 m
show more


Wavelength
Wavelength
1310 nm
show more


Tx power (min)
-8.5 dBmW
show more


Tx power (max)
0.5 dBmW
show more


Rx power (min)
-12.6 dBmW
show more


Rx power (max)
0.5 dBmW
show more


Link budget
10.1 dB
show more


Networking standards
Networking standards
IEEE 802.3ae
show more


Fiber ethernet cabling technology
10GBASE
show more


Duplex system
Duplex system
Full
show more

Features

Product colour
Product colour
Gold, Metallic
show more


Hot-Plug support
Hot-Plug support
Yes
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
4650000 h
show more

Power

Maximum voltage
3.3 V
show more


Maximum current
Maximum current
300 A
show more

Certificates

Compliance certificates
RoHS
show more


Safety
Safety
UL, TUV, CDRH
show more


Certification
CE, FCC, VCCI, MSA
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 70 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
5 – 85%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
14.8 mm
show more


Depth
Depth
11.8 mm
show more


Height
Height
56.5 mm
show more


Weight
Weight
19.5 g
show more

Packaging data

Package width
Package width
74 mm
show more


Package depth
Package depth
131 mm
show more


Package height
Package height
49 mm
show more


Package weight
Package weight
64 g
show more

Logistics data

Pallet gross weight (sea)
272 kg
show more


Pallet height (air)
199 cm
show more


Pallet gross width
122 cm
show more


Master (outer) cases per pallet (sea)
60 pc(s)
show more


Products per pallet (sea)
3000 pc(s)
show more


Shipping (inner) case gross weight
4.2 kg
show more


Pallet height (sea)
199 cm
show more


Shipping (inner) case length
36 cm
show more


Pallet gross length
102 cm
show more


Shipping (inner) case height
31 cm
show more


Shipping (inner) case width
26 cm
show more


Shipping (inner) case net weight
3.2 kg
show more


Products per shipping (inner) case
50 pc(s)
show more


Master (outer) cases per pallet (air)
60 pc(s)
show more


Pallet gross weight (air)
272 kg
show more


Products per pallet (air)
3000 pc(s)
show more


Harmonized System (HS) code
85369010
show more
