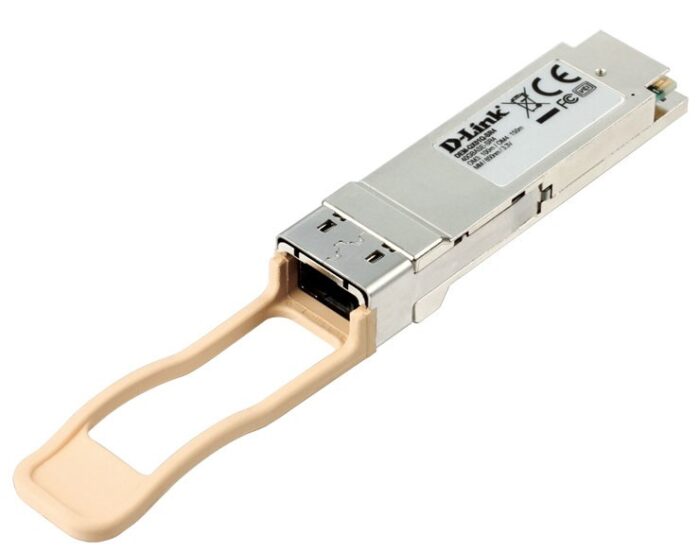

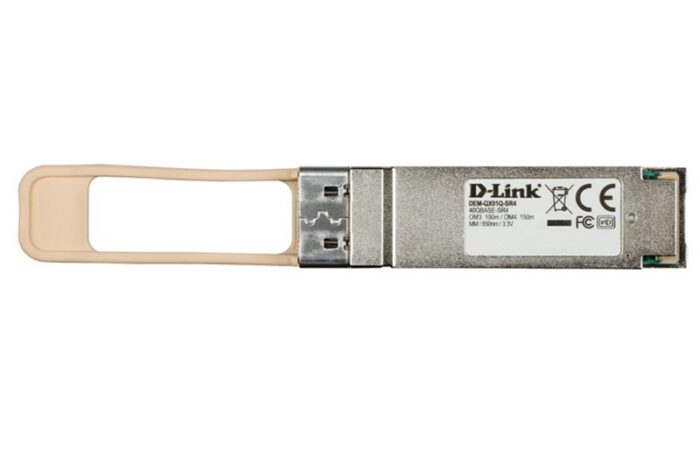

D-Link DEM-QX01Q-SR4 Network Transceiver Module, Fiber Optic, 40000 Mbit/s, QSFP+, 850 nm

The D-Link DEM-QX01Q-SR4 is a fiber optic SFP transceiver designed for high-speed data transfer. It boasts a maximum data transfer rate of 40,000 Mbit/s and utilizes a QSFP+ interface type. The transceiver comes in a beige and metallic color scheme. It operates with a maximum voltage of 3.3 V and a maximum current of 0.35 A. This product adheres to various compliance standards, including RoHS, and holds certifications such as FCC Class B, CE Class B, VCCI Class B, FDA/CDRH, TUV, CSA, and MSA. The dimensions of the transceiver are 18.4 mm in width, 115.8 mm in depth, and 13.3 mm in height.

Performance

SFP transceiver type
Fiber optic
show more


Maximum data transfer rate
Maximum data transfer rate
40000 Mbit/s
show more


Interface type
QSFP+
show more


Single-mode fiber (SMF) supported
No
show more


Multi-mode fiber (MMF) supported
Yes
show more


Fiber optic connector
Fiber optic connector
MPO
show more


SFP transceiver standard
SR4
show more


Maximum transfer distance
Maximum transfer distance
150 m
show more


Wavelength
Wavelength
850 nm
show more


Tx power (min)
-7.6 dBmW
show more


Tx power (max)
2.4 dBmW
show more


Rx power (min)
-9.5 dBmW
show more


Rx power (max)
2.4 dBmW
show more


Link budget
11.9 dB
show more


Ethernet interface type
40 Gigabit Ethernet
show more


Networking standards
Networking standards
IEEE 802.3ba
show more


Fiber ethernet cabling technology
40GBASE
show more


Digital Diagnostics Monitoring (DDM)
Yes
show more

Features

Product colour
Product colour
Beige, Metallic
show more


Hot-Plug support
Hot-Plug support
Yes
show more

Power

Maximum voltage
3.3 V
show more


Maximum current
Maximum current
0.35 A
show more

Certificates

Compliance certificates
RoHS
show more


Certification
FCC Class B
CE Class B
VCCI Class B
FDA/CDRH
TUV
CSA
MSA
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 70 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 75 °C
show more


Operating relative humidity (H-H)
0 – 85%
show more


Storage relative humidity (H-H)
0 – 85%
show more

Weight & dimensions

Width
Width
18.4 mm
show more


Depth
Depth
115.8 mm
show more


Height
Height
13.3 mm
show more


Weight
Weight
40 g
show more

Packaging content

Quantity per pack
1 pc(s)
show more

Packaging data

Package width
Package width
74 mm
show more


Package depth
Package depth
131 mm
show more


Package height
Package height
49 mm
show more


Package weight
Package weight
64 g
show more

Logistics data

Pallet gross weight (sea)
272 kg
show more


Pallet height (air)
199 cm
show more


Pallet gross width
122 cm
show more


Master (outer) cases per pallet (sea)
60 pc(s)
show more


Products per pallet (sea)
3000 pc(s)
show more


Shipping (inner) case gross weight
4.2 kg
show more


Pallet height (sea)
199 cm
show more


Shipping (inner) case length
36 cm
show more


Pallet gross length
102 cm
show more


Shipping (inner) case height
31 cm
show more


Shipping (inner) case width
26 cm
show more


Shipping (inner) case net weight
3.2 kg
show more


Products per shipping (inner) case
50 pc(s)
show more


Master (outer) cases per pallet (air)
60 pc(s)
show more


Pallet gross weight (air)
272 kg
show more


Products per pallet (air)
3000 pc(s)
show more


Harmonized System (HS) code
85369010
