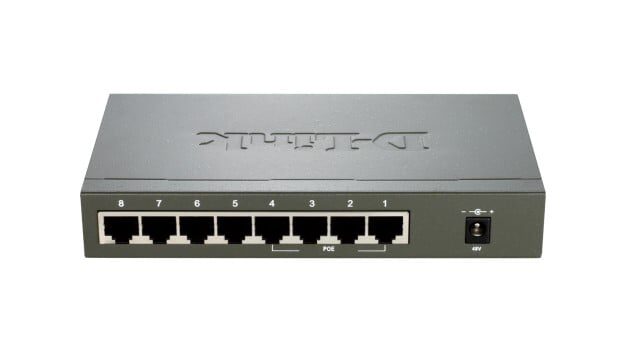

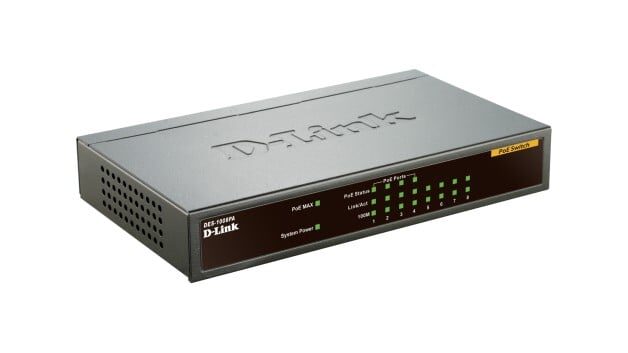

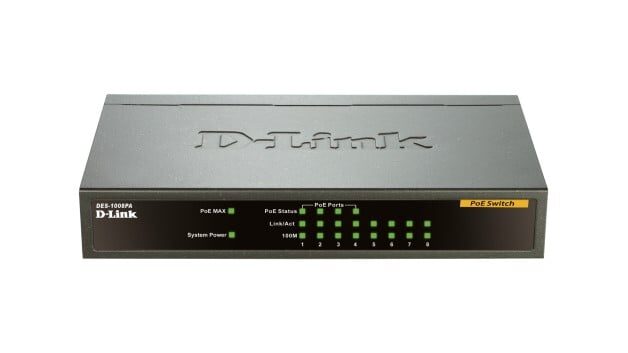

D-Link DES-1008PA Network Switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

The D-Link DES-1008PA is an unmanaged switch that features 8 Fast Ethernet (10/100) RJ-45 ports. It supports full duplex communication and has a MAC address table capable of holding up to 1000 entries. With a switching capacity of 1.6 Gbit/s, it adheres to networking standards including IEEE 802.3, IEEE 802.3af, IEEE 802.3u, and IEEE 802.3x. Additionally, it is equipped with Power over Ethernet (PoE) capabilities.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more


Fast Ethernet (copper) ports quantity
8
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
1.6 Gbit/s
show more


MAC address table
MAC address table
1000 entries
show more


Store-and-forward
Yes
show more


Maximum data transfer rate
1 Gbit/s
show more


Packet buffer memory
0.09 MB
show more

Design

Product colour
Product colour
Black
show more


LED indicators
LAN, PoE, Power
show more


Safety
Safety
LVD
show more

Power

Power source
Power source
DC
show more


Input current
1.25 A
show more


Input voltage
Input voltage
51 V
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
4
show more


Power over Ethernet (PoE) power per port
15 W
show more


Total Power over Ethernet (PoE) budget
52 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
10 – 95%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
170.2 mm
show more


Depth
Depth
99.1 mm
show more


Height
Height
27.9 mm
show more


Weight
Weight
454 g
show more

Packaging data

Package width
Package width
208 mm
show more


Package depth
Package depth
250 mm
show more


Package height
Package height
68 mm
show more


Package weight
Package weight
1.19 kg
show more

Technical details

Pallet gross weight (sea)
628.5 kg
show more


Pallet height (air)
191.5 cm
show more


Pallet gross width
120 cm
show more


Master (outer) cases per pallet (sea)
48 pc(s)
show more


Products per pallet (sea)
480 pc(s)
show more


Shipping (inner) case gross weight
12.7 kg
show more


Pallet height (sea)
191.5 cm
show more


Pallet gross length
110 cm
show more


Products per pallet (air)
480 pc(s)
show more


Shipping (inner) case length
37.5 cm
show more


Shipping (inner) case width
26.5 cm
show more


Shipping (inner) case net weight
11.9 kg
show more


Products per shipping (inner) case
10 pc(s)
show more


Master (outer) cases per pallet (air)
48 pc(s)
show more


Pallet gross weight (air)
628.5 kg
show more


Shipping (inner) case height
43 cm
show more

Certificates

Certification
FCC, CE, VCCI
show more

Logistics data

Harmonized System (HS) code
85176990
show more
