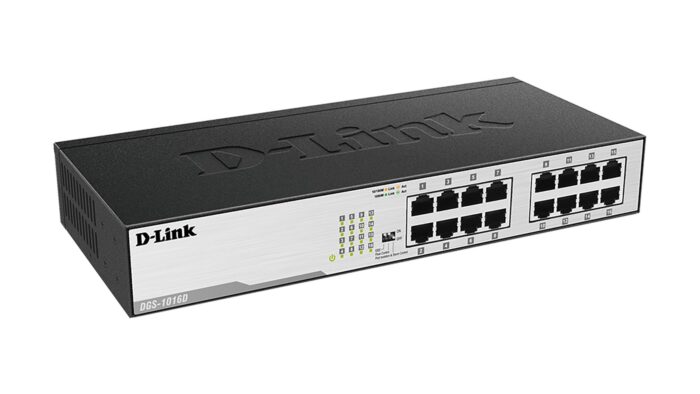

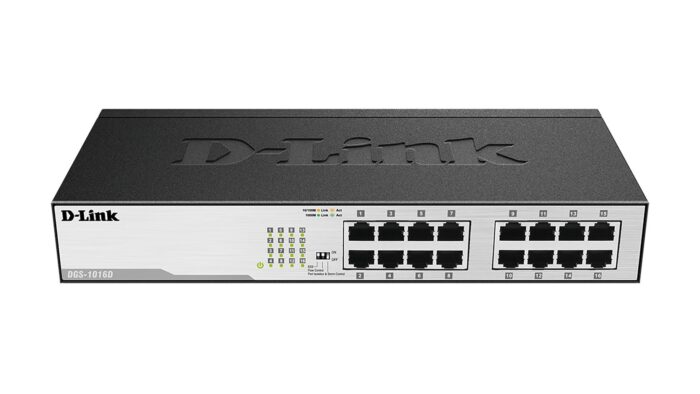

D-Link DGS-1016D Network Switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Black, Silver

The D-Link DGS-1016D is an unmanaged switch featuring Gigabit Ethernet RJ-45 ports capable of 10/100/1000 Mbps. It includes 16 ports and supports full duplex operation. The switch has a MAC address table that can handle up to 8000 entries and offers a switching capacity of 32 Gbit/s. It complies with networking standards such as IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x. For power, it uses an AC-in jack connector. The unit is designed for rack mounting and has a 1U form factor.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Power connector
AC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more


Full duplex
Full duplex
Yes
show more


MAC address auto-learning supported
Yes
show more


Active link detection
Yes
show more


MAC address auto-aging supported
Yes
show more


Flow control support
Yes
show more


Broadcast storm control
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
32 Gbit/s
show more


Forwarding rate
23.81 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Number of queues
8
show more


Jumbo frames support
Yes
show more


Jumbo frames
10000
show more


Packet forwarding rate (10 Mbps)
1488000 pps
show more


Packet forwarding rate (100 Mbps)
148800 pps
show more


Packet forwarding rate (1 Gbps)
14880 pps
show more


Packet buffer memory
0.5 MB
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black, Silver
show more


Housing material
Housing material
Metal
show more


LED indicators
Activity, Link, Power, Speed
show more


Electromagnetic compatibility
Electromagnetic compatibility
ICES-003 Class A, FCC Class A, RCM Class A, BSMI Class A, CE Class A, VCCI A, CCC, KCC
show more

Performance

Noise level
Noise level
0 dB
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
1882372 h
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Input current
0.2 A
show more


Power consumption (max)
Power consumption (max)
10.07 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Heat dissipation
Heat dissipation
34.3 BTU/h
show more

Weight & dimensions

Width
Width
280 mm
show more


Depth
Depth
125 mm
show more


Height
Height
44 mm
show more


Weight
Weight
1.02 kg
show more

Certificates

Certification
cUL/UL
CE LVD
CCC
CB
BSMI
show more
