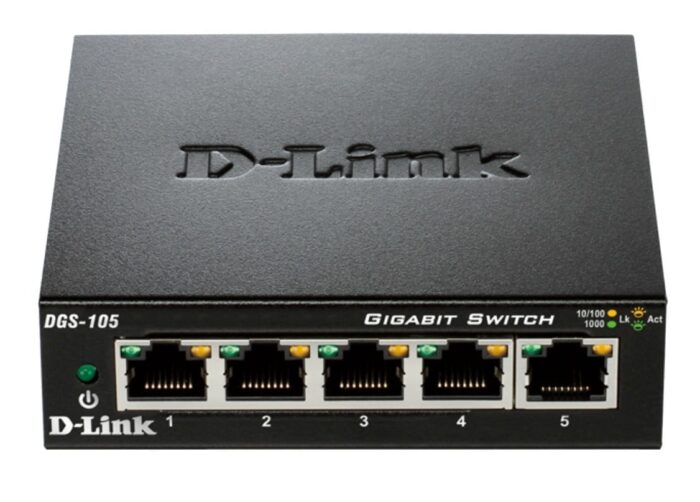

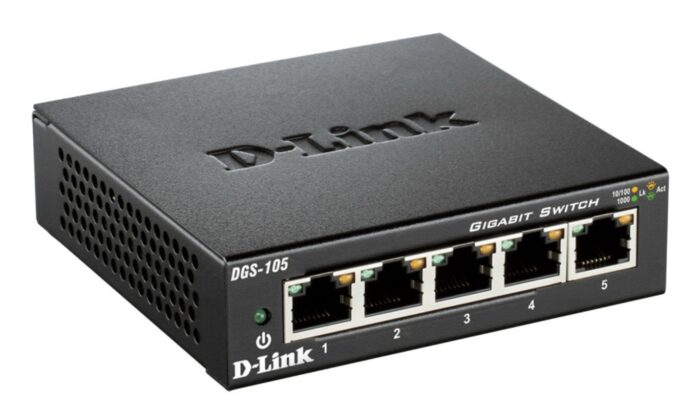

D-Link DGS-105 5-Port 10/100/1000 Gigabit Metal Housing Desktop Switch

⁦D-Link DGS-105 5-Port 10/100/1000 Gigabit Metal Housing Desktop Switch⁩ – תמונה ⁦2⁩

D-Link DGS-105 5-Port 10/100/1000 Gigabit Metal Housing Desktop Switch

Name: D-Link DGS-105 5-Port 10/100/1000 Gigabit Metal Housing Desktop Switch - Tact Technologies Solutions | טאקט | ציוד IT ותקשורות, ציוד תואם OEM ורכיבים אלקטרוניים.
Brand: OWC
Availability: InStock

The D-Link DGS-105 is an unmanaged switch designed for Layer 2 network applications. It features five Gigabit Ethernet RJ-45 ports, supporting data transfer rates of 10/100/1000 Mbps and full duplex communication. The switch includes a MAC address table with a capacity of 2000 entries and offers a switching capacity of 10 Gbit/s. It complies with several networking standards, including IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, and IEEE 802.3x. The device is powered via a DC-in jack.

Management features

Switch type

Unmanaged

Switch layer

Quality of Service (QoS) support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

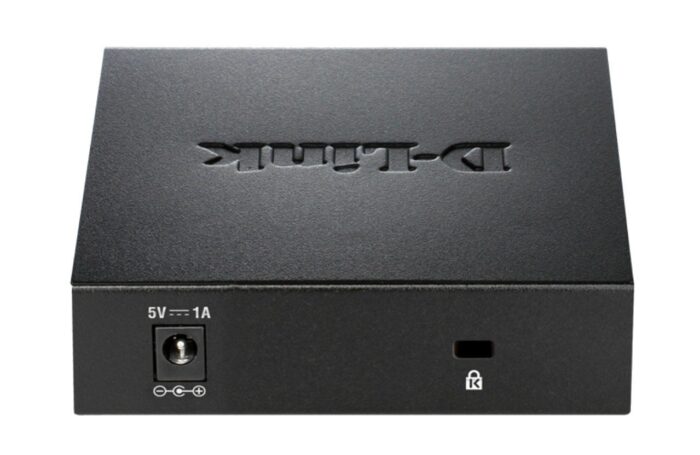

Power connector

DC-in jack

Network

Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Copper ethernet cabling technology

1000BASE-T, 100BASE-TX, 10BASE-T

Full duplex

Yes

Auto MDI/MDI-X

Yes

Flow control support

Yes

Data transmission

Supported data transfer rates

10/100/1000 Mbps

Switching capacity

10 Gbit/s

MAC address table

2000 entries

Store-and-forward

Yes

Maximum data transfer rate

1 Gbit/s

Jumbo frames support

Yes

Packet buffer memory

0.128 MB

Security

MAC address filtering

Yes

Design

Rack mounting

Product colour

Black

Housing material

Metal

Performance

Mean time between failures (MTBF)

1688338 h

Power

Input current

1 A

Input voltage

5 V

Power consumption (typical)

2.1 W

Other features

Data transfer rate

2000 Mbit/s

Dimensions (WxDxH)

100 x 98 x 28 mm

Connectivity technology

Wired

Operational conditions

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-10 – 70 °C

Operating relative humidity (H-H)

10 – 90%

Storage relative humidity (H-H)

5 – 90%

Weight & dimensions

Width

100 mm

Depth

98 mm

Height

28 mm

Weight

267 g

Packaging data

Package width

170 mm

Package depth

220 mm

Package height

62 mm

Package weight

450 g

Technical details

Pallet gross weight (sea)

439.8 kg

Pallet height (air)

2.04 m

Pallet gross width

110 cm

Master (outer) cases per pallet (sea)

75 pc(s)

Products per pallet (sea)

750 pc(s)

Shipping (inner) case gross weight

5.53 kg

Pallet height (sea)

2.04 m

Pallet gross length

120 cm

Products per pallet (air)

750 pc(s)

Shipping (inner) case length

33.5 cm

Shipping (inner) case width

23 cm

Shipping (inner) case net weight

5 kg

Products per shipping (inner) case

10 pc(s)

Master (outer) cases per pallet (air)

75 pc(s)

Pallet gross weight (air)

439.8 kg

Shipping (inner) case height

36.6 cm

Certificates

Certification

FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS

Logistics data

Harmonized System (HS) code

85176990
