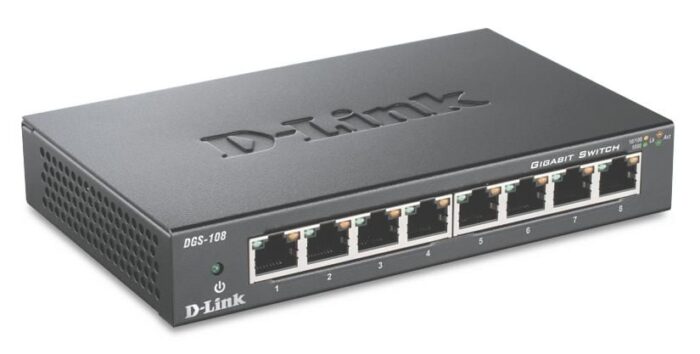

D-Link DGS-108 Black

The D-Link DGS-108 is a basic switch featuring 8 RJ-45 Ethernet ports. It supports full duplex communication and has a MAC address table capacity of 8000 entries. The switching capacity of this device is 16 Gbit/s. It adheres to various networking standards, including IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, and IEEE 802.3x. The switch is powered through a DC-in jack.

Management features

Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
Yes
show more


Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

Supported data transfer rates
Supported data transfer rates
10/100/1000 Mbps
show more


Switching capacity
Switching capacity
16 Gbit/s
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Maximum data transfer rate
1 Gbit/s
show more


Jumbo frames support
Yes
show more


Packet buffer memory
0.128 MB
show more

Security

MAC address filtering
MAC address filtering
Yes
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Link, Power
show more

Performance

Mean time between failures (MTBF)
Mean time between failures (MTBF)
2053751 h
show more

Power

Input current
1 A
show more


Input voltage
Input voltage
5 V
show more


Power consumption (typical)
Power consumption (typical)
2.8 W
show more

Other features

Data transfer rate
Data transfer rate
2000 Mbit/s
show more


Dimensions (WxDxH)
Dimensions (WxDxH)
162 x 102 x 28 mm
show more


Connectivity technology
Connectivity technology
Wired
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Weight
Weight
440 g
show more

Packaging data

Included power plug types
EU
show more


Package width
Package width
208 mm
show more


Package depth
Package depth
250 mm
show more


Package height
Package height
68 mm
show more


Package weight
Package weight
654 g
show more

Technical details

Pallet gross weight (sea)
398.9 kg
show more


Pallet height (air)
196.7 cm
show more


Pallet gross width
120 cm
show more


Master (outer) cases per pallet (sea)
48 pc(s)
show more


Products per pallet (sea)
480 pc(s)
show more


Shipping (inner) case gross weight
7.79 kg
show more


Pallet height (sea)
196.7 cm
show more


Pallet gross length
110 cm
show more


Products per pallet (air)
480 pc(s)
show more


Shipping (inner) case length
37 cm
show more


Shipping (inner) case width
26 cm
show more


Shipping (inner) case net weight
7.1 kg
show more


Products per shipping (inner) case
10 pc(s)
show more


Master (outer) cases per pallet (air)
48 pc(s)
show more


Pallet gross weight (air)
398.9 kg
show more


Shipping (inner) case height
44.3 cm
show more

Certificates

Certification
FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
