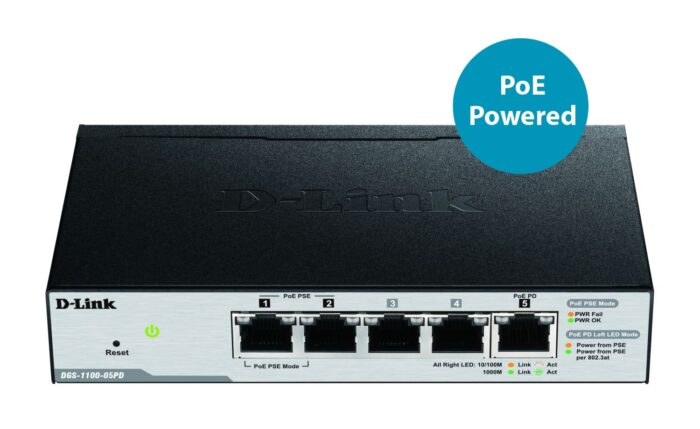

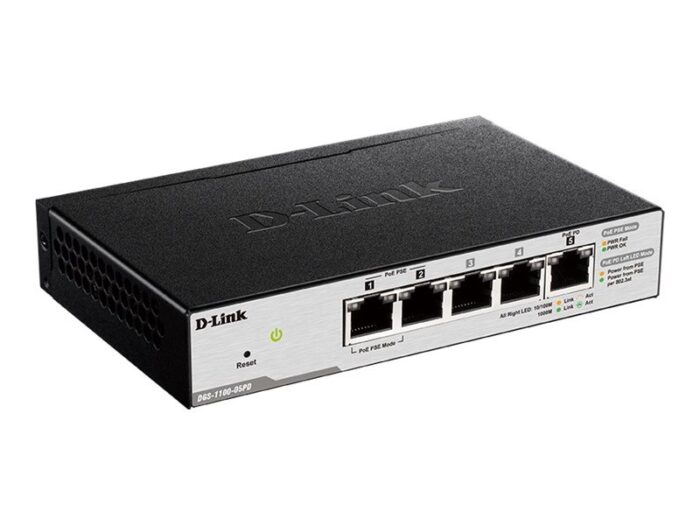

D-Link DGS-1100-05PD 5-Port Gigabit PoE Smart Switch with One PD Port

The D-Link DGS-1100-05PD is a managed switch designed for Layer 2 networking. It features five RJ-45 Ethernet ports that support Gigabit Ethernet speeds of 10/100/1000 Mbps. The switch can manage up to 2000 MAC address entries and offers a switching capacity of 10 Gbit/s. It adheres to several networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, and IEEE 802.3z. Additionally, it supports Power over Ethernet (PoE), allowing it to supply power to compatible devices through the Ethernet cables.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3z
show more


10G support
10G support
No
show more


Port mirroring
Yes
show more


Cable length detection
Yes
show more


Flow control support
Yes
show more


Broadcast storm control
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Tagged VLAN, Port-based VLAN
show more

Data transmission

Switching capacity
Switching capacity
10 Gbit/s
show more


Throughput
7.44 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Number of trunks
4
show more


Number of queues
4
show more


Jumbo frames support
Yes
show more


Jumbo frames
9216
show more


Packet buffer memory
1 MB
show more

Security

IGMP snooping
Yes
show more


Security algorithms
Security algorithms
SNMP
show more

Multicast features

Multicast support
Yes
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more


Safety
Safety
cUL, CE LVD, CB, BSMI, CCC
show more

Performance

Flash memory
2 MB
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
2346941 h
show more

Power

Power consumption (max)
Power consumption (max)
23.92 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
2
show more


Power over Ethernet (PoE) power per port
15.4 W
show more


Total Power over Ethernet (PoE) budget
18 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
0 – 90%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
150 mm
show more


Depth
Depth
97 mm
show more


Height
Height
28 mm
show more


Weight
Weight
380 g
show more

Packaging data

Package width
Package width
139 mm
show more


Package depth
Package depth
210 mm
show more


Package height
Package height
53 mm
show more


Package weight
Package weight
615 g
show more

Certificates

Certification
FCC Class B, CE Class B, VCCI Class B, BSMI, CCC
show more

Technical details

Pallet gross weight (sea)
608.9 kg
show more


Pallet height (air)
132.5 cm
show more


Pallet gross width
120 cm
show more


Master (outer) cases per pallet (sea)
44 pc(s)
show more


Products per pallet (sea)
880 pc(s)
show more


Shipping (inner) case gross weight
13.2 kg
show more


Pallet height (sea)
2 m
show more


Pallet gross length
110 cm
show more


Products per pallet (air)
560 pc(s)
show more


Shipping (inner) case length
56.8 cm
show more


Shipping (inner) case width
44.5 cm
show more


Shipping (inner) case net weight
12.3 kg
show more


Products per shipping (inner) case
20 pc(s)
show more


Master (outer) cases per pallet (air)
28 pc(s)
show more


Pallet gross weight (air)
396.4 kg
show more


Shipping (inner) case height
17 cm
show more

Logistics data

Harmonized System (HS) code
85176990
