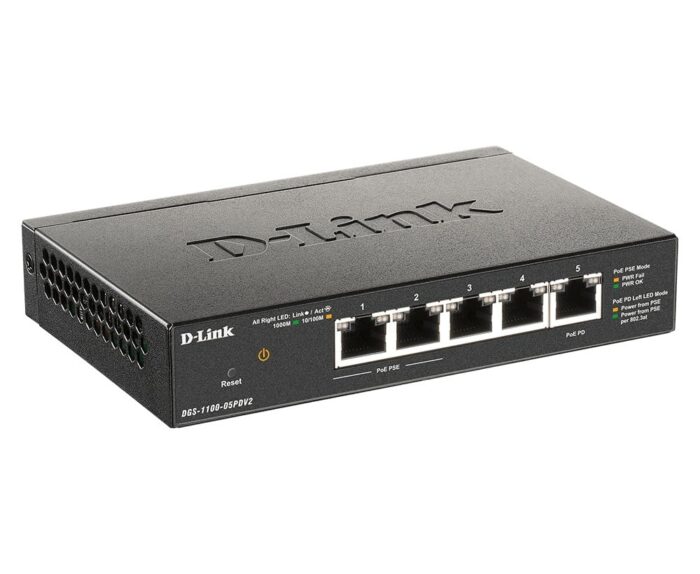

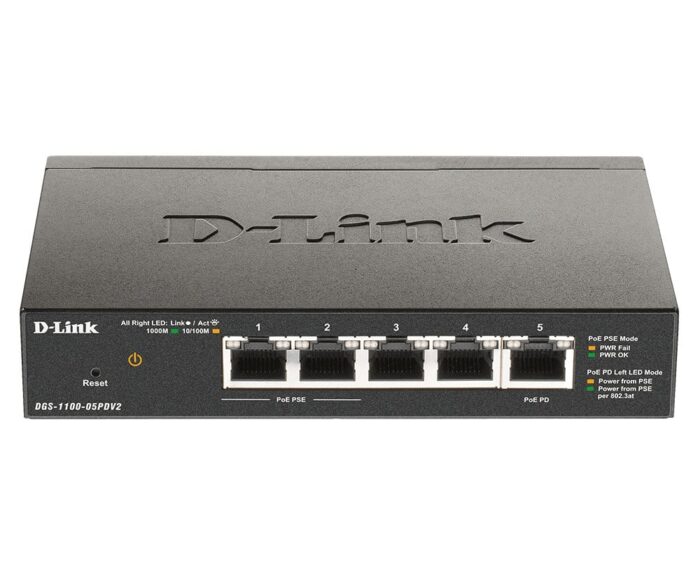

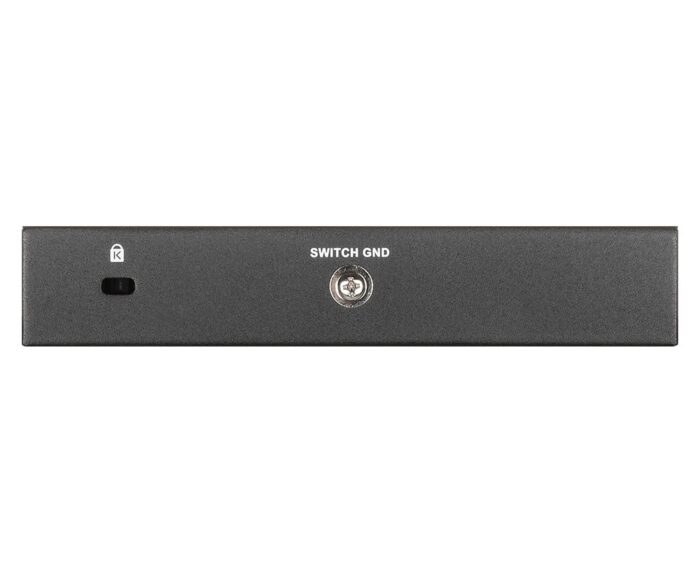

D-Link DGS-1100-05PDV2 Network Switch Managed Gigabit Ethernet Power over Ethernet PoE Black

D-Link Gigabit Smart Managed Switches DGS-1100 Series offer a managed switch type ideal for efficient network management. This model includes five RJ-45 Gigabit Ethernet ports, supporting 10/100/1000 Mbps speeds for basic switching needs. The switch operates in full duplex and can handle a MAC address table with up to 2000 entries, providing a robust switching capacity of 10 Gbit/s. It is compliant with several networking standards, including IEEE 802.3, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3u, and 802.3x, ensuring compatibility with a variety of network devices and technologies. Additionally, it supports Power over Ethernet (PoE), allowing you to power compatible devices directly through the network cable for added convenience and flexibility.

Management features

Switch type
Switch type
Managed
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
5
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Port mirroring
Yes
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10000 Mbit/s
show more


Head-of-line (HOL) blocking
Yes
show more


Auto-negotiation
Yes
show more


Broadcast storm control
Yes
show more


Flow control support
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN
show more


Number of VLANs
4094
show more

Data transmission

Switching capacity
Switching capacity
10 Gbit/s
show more


Forwarding rate
7.44 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Number of trunks
1
show more


Number of queues
4
show more


Jumbo frames
9216
show more


Packet buffer memory
1 MB
show more

Security

DHCP features
DHCP client
show more


IGMP entries
128
show more


IGMP snooping
Yes
show more


MAC address entries
Static MAC address entries
show more


Queue scheduling algorithms
Weighted Round Robin (WRR)
show more


Static port security
Yes
show more


SSH/SSL support
Yes
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more

Performance

Flash memory
2 MB
show more


Noise level
Noise level
0 dB
show more


Fanless
Yes
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
2357475 h
show more

Power

Power source
Power source
PoE
show more


Power supply included
Power supply included
No
show more


Power consumption (typical)
Power consumption (typical)
3.24 W
show more


Power consumption (max)
Power consumption (max)
24.08 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
2
show more


Power over Ethernet (PoE) power per port
18 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
0 – 90%
show more


Storage relative humidity (H-H)
0 – 95%
show more

Weight & dimensions

Width
Width
150 mm
show more


Depth
Depth
97 mm
show more


Height
Height
28 mm
show more


Weight
Weight
380 g
show more

Certificates

Compliance certificates
BSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI
show more

Logistics data

Harmonized System (HS) code
85176990
