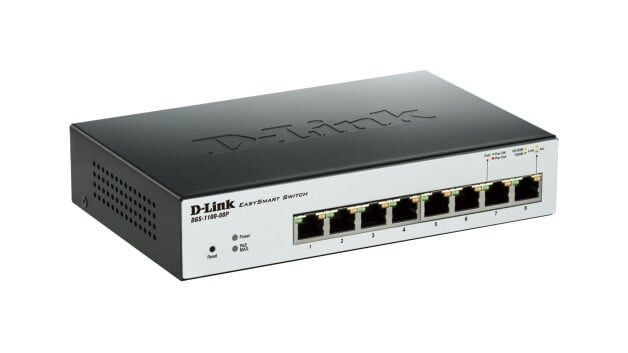

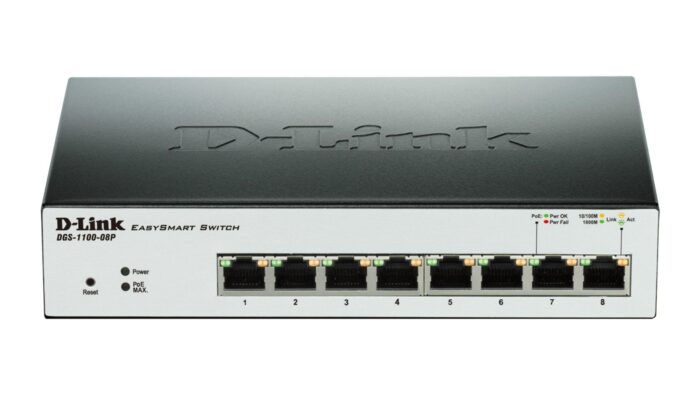

D-Link DGS-1100-08P 8-Port PoE Gigabit Smart Switch

The D-Link DGS-1100-08P is a managed switch designed for Layer 2 networking. It features eight Gigabit Ethernet (10/100/1000) RJ-45 ports for basic switching needs. The switch has a MAC address table that can accommodate up to 8000 entries and offers a switching capacity of 16 Gbit/s. It supports various networking standards, including IEEE 802.3ab, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3u, and IEEE 802.3x. Additionally, the device is equipped with a DC-in jack power connector and supports Power over Ethernet (PoE) functionality.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3ab, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Voice VLAN, Tagged VLAN, Port-based VLAN
show more

Data transmission

Switching capacity
Switching capacity
16 Gbit/s
show more


Throughput
11.9 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Jumbo frames support
Yes
show more


Jumbo frames
9216
show more

Security

DHCP features
DHCP client
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


Reset button
Yes
show more


LED indicators
Yes
show more


Safety
Safety
UL/cUL, CE LVD
show more

Performance

Flash memory
2 MB
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
10 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
190 mm
show more


Depth
Depth
120 mm
show more


Height
Height
28 mm
show more


Weight
Weight
710 g
show more

Packaging data

Package width
Package width
180 mm
show more


Package depth
Package depth
210 mm
show more


Package height
Package height
74 mm
show more


Package weight
Package weight
1.09 kg
show more

Technical details

Pallet gross weight (sea)
806.6 kg
show more


Pallet height (air)
129.9 cm
show more


Pallet gross width
120 cm
show more


Master (outer) cases per pallet (sea)
30 pc(s)
show more


Products per pallet (sea)
600 pc(s)
show more


Shipping (inner) case gross weight
26.2 kg
show more


Pallet height (sea)
2.08 m
show more


Pallet gross length
110 cm
show more


Products per pallet (air)
360 pc(s)
show more


Shipping (inner) case length
44.6 cm
show more


Shipping (inner) case width
39.7 cm
show more


Shipping (inner) case net weight
25.1 kg
show more


Products per shipping (inner) case
20 pc(s)
show more


Master (outer) cases per pallet (air)
18 pc(s)
show more


Pallet gross weight (air)
491.5 kg
show more


Shipping (inner) case height
38.8 cm
show more

Certificates

Certification
• FCC Class A
• CE Class A
• VCCI Class A
show more

Logistics data

Harmonized System (HS) code
85176990
show more
