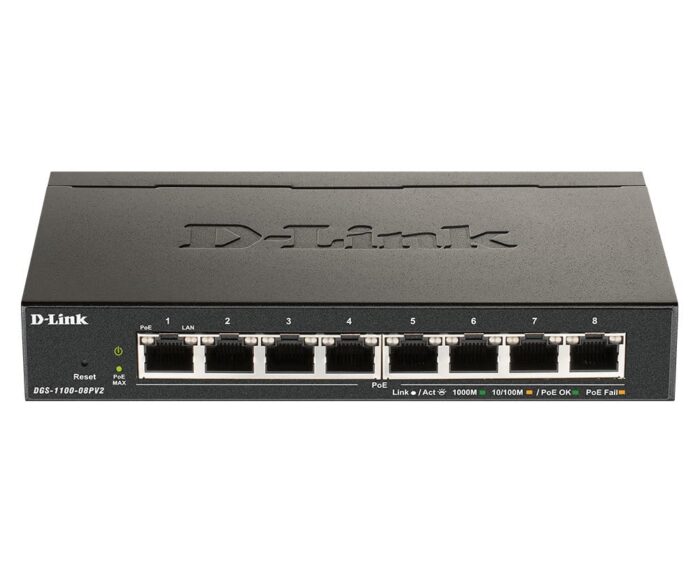

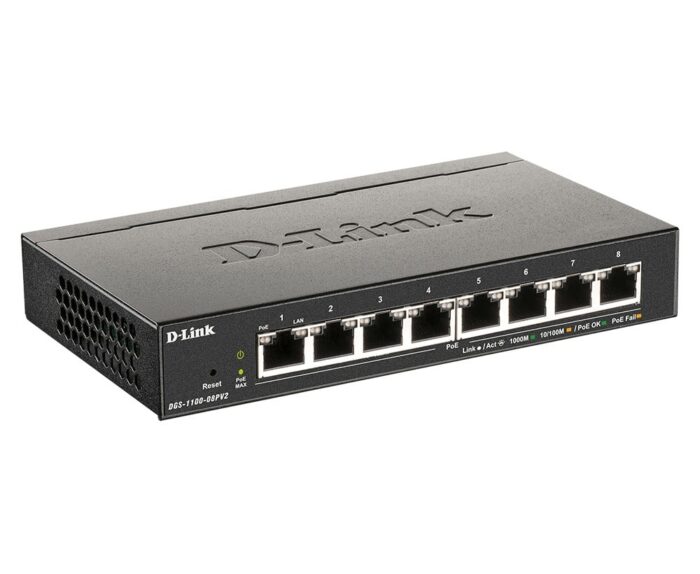

D-Link DGS-1100-08PV2 Network Switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

The D-Link DGS-1100-08PV2/B is a managed network switch designed for versatile connectivity and efficient network management. It operates on Layer 2 and Layer 3, ensuring advanced switching capabilities. The switch features 8 Gigabit Ethernet RJ-45 ports, supporting 10/100/1000 Mbps connections for fast data transfer. It operates in full duplex mode and includes a MAC address table that supports 4096 entries, with a total switching capacity of 16 Gbit/s. This device adheres to several networking standards, including IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, and IEEE 802.3at. Additionally, it supports Power over Ethernet (PoE), providing power to compatible devices directly through the network cables.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2/L3
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
8
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Half duplex
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more


Link aggregation
Yes
show more


Broadcast storm control
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Port-based VLAN, Tagged VLAN, Voice VLAN
show more


Number of VLANs
4094
show more

Data transmission

Switching capacity
Switching capacity
16 Gbit/s
show more


Forwarding rate
11.9 Mpps
show more


MAC address table
MAC address table
4096 entries
show more


Number of queues
4
show more


Jumbo frames support
Yes
show more


Jumbo frames
9216
show more

Security

IGMP snooping
Yes
show more


Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
show more


Loop protection
Yes
show more

Multicast features

Multicast support
Yes
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Performance

Flash memory
2 MB
show more


Fanless
Yes
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
786841 h
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
77.9 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
8
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
64 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
0 – 90%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Heat dissipation
Heat dissipation
265.85 BTU/h
show more

Weight & dimensions

Width
Width
171 mm
show more


Depth
Depth
97.8 mm
show more


Height
Height
28.6 mm
show more


Weight
Weight
430 g
show more

Sustainability

Sustainability compliance
Yes
show more

Certificates

Compliance certificates
CE, RoHS
show more


Certification
FCC Class B, CE Class B, VCCI Class B, BSMI
cUL, CE LVD, CB, BSMI
show more

Logistics data

Harmonized System (HS) code
85176990
