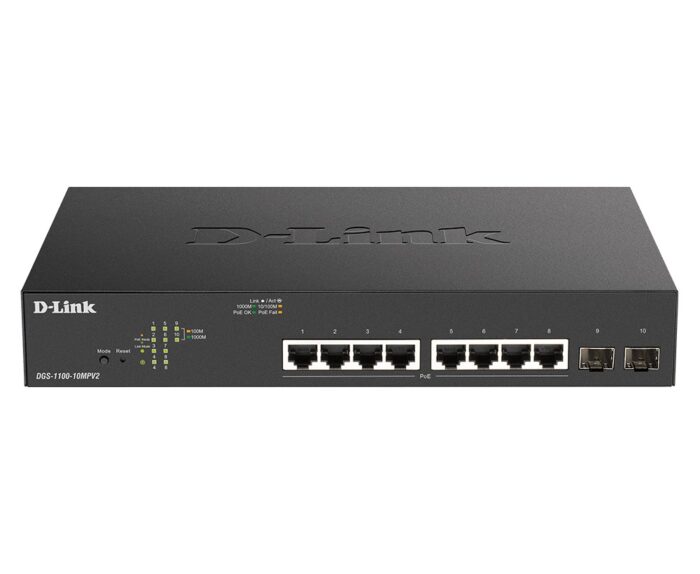

D-Link DGS-1100-10MPV2/E 10-Port PoE+ Gigabit Smart Switch

The D-Link DGS-1100-10MPV2 is a managed switch designed for efficient network management and operation at the second layer of the OSI model (Layer 2). It features 8 RJ-45 Ethernet ports, each supporting Gigabit Ethernet speeds of 10/100/1000 Mbps, and provides full duplex operation. The switch can store up to 8000 MAC addresses and offers a switching capacity of 20 Gbit/s. It adheres to several networking standards including IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, and IEEE 802.3ad. Additionally, it supports Power over Ethernet (PoE), allowing it to provide power to connected devices over the Ethernet cables. Designed for convenient installation, this switch can be mounted on a rack and is built in a 1U form factor.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP module slots quantity
2
show more

Network

Networking standards
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


Head-of-line (HOL) blocking
Yes
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Rate limiting
Yes
show more


Flow control support
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Port-based VLAN, Tagged VLAN, Voice VLAN
show more


Number of VLANs
4094
show more

Data transmission

Switching capacity
Switching capacity
20 Gbit/s
show more


Forwarding rate
14.88 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Number of queues
4
show more


Jumbo frames support
Yes
show more


Jumbo frames
9216
show more


Packet buffer memory
4.1 MB
show more

Security

IGMP snooping
Yes
show more


Queue scheduling algorithms
Weighted Round Robin (WRR)
show more


Security algorithms
Security algorithms
SSL/TLS
show more

Multicast features

Multicast support
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more

Performance

Flash memory
16 MB
show more


Noise level
Noise level
37 dB
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
406887 h
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


Power consumption (max)
Power consumption (max)
164.6 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
8
show more


Total Power over Ethernet (PoE) budget
130 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-10 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Heat dissipation
Heat dissipation
118.1 BTU/h
show more

Weight & dimensions

Width
Width
280 mm
show more


Depth
Depth
180 mm
show more


Height
Height
44 mm
show more


Weight
Weight
1.5 kg
show more

Certificates

Certification
FCC A, CE A, VCCI A, C-Tick, BSMI
cUL, UL, LVD, CB, BSMI
show more
