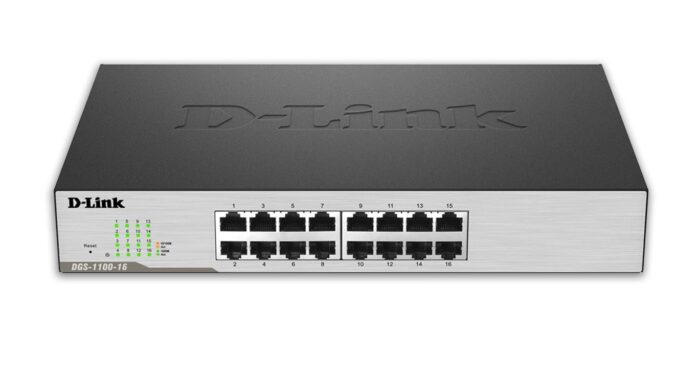

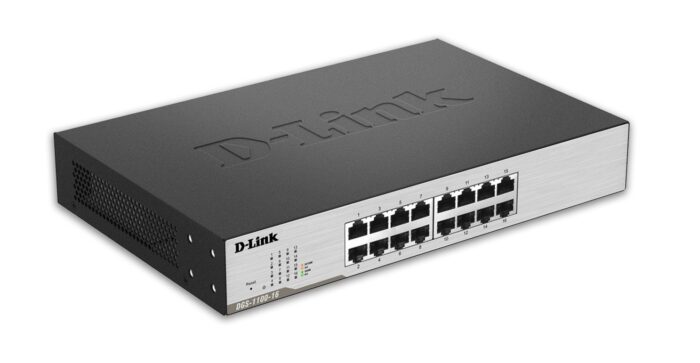

D-Link DGS-1100-16 16-Port 10/100/1000 Smart Switch

The D-Link EasySmart is a managed switch designed for efficient networking. It operates on Layer 2, providing effective data management and communication. This switch is equipped with 16 Gigabit Ethernet (10/100/1000) RJ-45 ports, allowing for fast and reliable connections. It features a MAC address table capable of storing up to 8000 entries and supports a switching capacity of 32 Gbit/s, ensuring smooth data flow across the network. Compliant with various networking standards, including IEEE 802.1ab, 802.1p, 802.3, 802.3af, 802.3at, 802.3q, and 802.3u, the D-Link EasySmart offers versatility and compatibility in diverse network environments. It also supports rack mounting for organized and efficient integration into network setups.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.1ab, IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
show more


Flow control support
Yes
show more

Data transmission

Supported data transfer rates
Supported data transfer rates
10/100/1000 Mbps
show more


Switching capacity
Switching capacity
32 Gbit/s
show more


MAC address table
MAC address table
8000 entries
show more


Maximum data transfer rate
1 Gbit/s
show more

Security

Loop protection
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Product colour
Product colour
Black
show more

Performance

Flash memory
2 MB
show more


Buffer size
Buffer size
512 KB
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


Power consumption (max)
Power consumption (max)
9.31 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Other features

Dimensions (WxDxH)
Dimensions (WxDxH)
280 x 180 x 144 mm
show more


Power requirements
100 – 240 VAC, 50/60 Hz
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more

Weight & dimensions

Width
Width
280 mm
show more


Depth
Depth
180 mm
show more


Height
Height
44 mm
show more


Weight
Weight
1.53 kg
show more

Packaging data

Package width
Package width
329 mm
show more


Package depth
Package depth
358 mm
show more


Package height
Package height
102 mm
show more


Package weight
Package weight
2.67 kg
show more

Technical details

Pallet gross weight (sea)
418.1 kg
show more


Pallet height (air)
193.5 cm
show more


Pallet gross width
110 cm
show more


Master (outer) cases per pallet (sea)
45 pc(s)
show more


Products per pallet (sea)
135 pc(s)
show more


Shipping (inner) case gross weight
8.89 kg
show more


Pallet height (sea)
193.5 cm
show more


Pallet gross length
120 cm
show more


Products per pallet (air)
135 pc(s)
show more


Shipping (inner) case length
38 cm
show more


Shipping (inner) case width
34 cm
show more


Shipping (inner) case net weight
7.72 kg
show more


Products per shipping (inner) case
3 pc(s)
show more


Master (outer) cases per pallet (air)
45 pc(s)
show more


Pallet gross weight (air)
418.1 kg
show more


Shipping (inner) case height
36 cm
show more

Logistics data

Harmonized System (HS) code
85176990
show more
