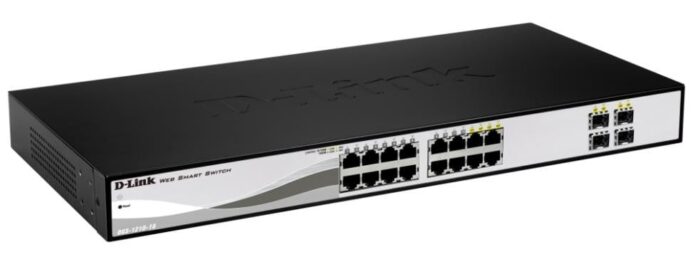

D-Link DGS-1210-16/E 16-Port Gigabit Smart Switch Layer 2 Managed

The D-Link DGS-1210-16 is a managed switch designed for Layer 2 networking. It features 16 RJ-45 Ethernet ports that support Gigabit Ethernet speeds of 10/100/1000 Mbps and offers full duplex communication. The switch can handle up to 8,000 MAC address entries and has a switching capacity of 40 Gbit/s. It supports various networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x. The device is equipped with a DC-in jack power connector and is suitable for rack mounting.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more


System event log
Yes
show more


MIB support
1213 MIB II, 1493 Bridge MIB, 1907 SNMP v2 MIB, 1215 Trap Convention MIB, 2233 Interface Group MIB, D-Link Private MIB
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Combo SFP ports quantity
4
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
show more


Copper ethernet cabling technology
1000BASE-T, 100BASE-TX, 10BASE-T
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Spanning tree protocol
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Head-of-line (HOL) blocking
Yes
show more


Link aggregation
Yes
show more


Broadcast storm control
Yes
show more


Flow control support
Yes
show more


Number of VLANs
256
show more

Data transmission

Switching capacity
Switching capacity
40 Gbit/s
show more


Forwarding rate
29.8 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Packet buffer memory
4.1 MB
show more

Security

DHCP features
DHCP client
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more

Multicast features

Multicast support
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
No
show more


Product colour
Product colour
Black
show more

Performance

Noise level
Noise level
0 dB
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
1087100 h
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50/60 Hz
show more


Power consumption (typical)
Power consumption (typical)
13.02 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Heat dissipation
Heat dissipation
44.41 BTU/h
show more

Weight & dimensions

Width
Width
280 mm
show more


Depth
Depth
180 mm
show more


Height
Height
44 mm
show more


Weight
Weight
1.75 kg
show more
