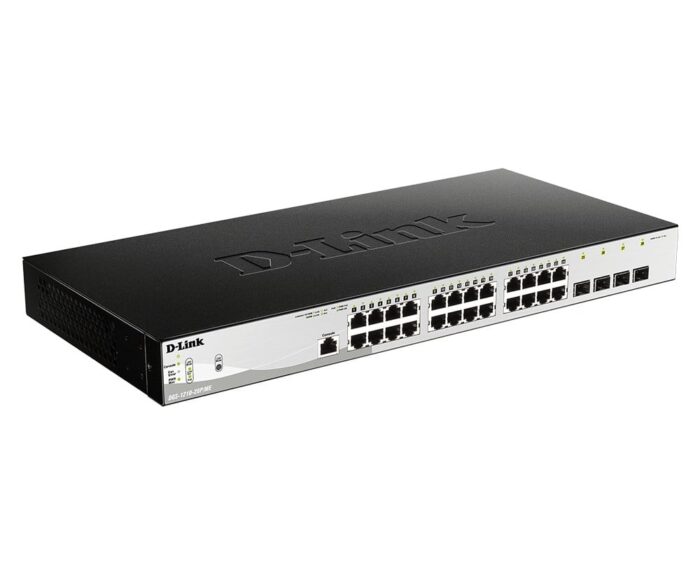

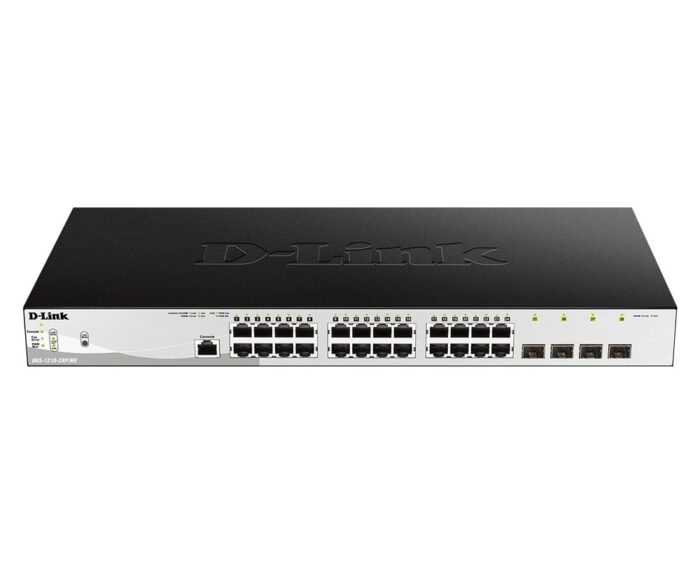

D-Link DGS-1210-28P/ME 24-Port 10/100/1000Base-T PoE + 4-Port 1 Gbps SFP Ports Metro ET

The D-Link DGS-1210-28P/ME is a managed switch designed for efficient network management at the L2 layer. It features 24 basic switching RJ-45 Ethernet ports, all supporting Gigabit Ethernet speeds of 10/100/1000 Mbps, ensuring fast data transfer and reliable connectivity. This switch operates in full duplex mode and boasts a MAC address table capable of holding up to 16,000 entries. With a switching capacity of 56 Gbit/s, it delivers robust performance for demanding network environments.

Compliant with numerous networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, and IEEE 802.3x, the DGS-1210-28P/ME is equipped with Power over Ethernet (PoE) capabilities. This feature allows compatible devices to receive power and data over the same Ethernet cable, simplifying installation and reducing the need for additional power sources. Designed for easy integration into server racks, this switch features a rack-mountable 1U form factor, making it a versatile choice for various network installations.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
24
show more


SFP/SFP+ slots quantity
4
show more


SFP module slots quantity
4
show more


Fiber optic connector
Fiber optic connector
SFP
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Spanning tree protocol
Yes
show more


Flow control support
Yes
show more


Link aggregation
Yes
show more


Number of VLANs
4094
show more

Data transmission

Switching capacity
Switching capacity
56 Gbit/s
show more


MAC address table
MAC address table
16000 entries
show more


Maximum data transfer rate
1 Gbit/s
show more

Security

DHCP features
DHCP server, DHCP client
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more


SSH/SSL support
Yes
show more


MAC address filtering
MAC address filtering
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Number of fans
Number of fans
3 fan(s)
show more

Power

Power consumption (typical)
Power consumption (typical)
238.4 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
250 mm
show more


Height
Height
44 mm
show more


Weight
Weight
3.7 kg
show more

Packaging data

Package width
Package width
365 mm
show more


Package depth
Package depth
521 mm
show more


Package height
Package height
92 mm
show more


Package weight
Package weight
4.93 kg
show more

Technical details

Pallet gross weight (sea)
652.9 kg
show more


Pallet height (air)
131.4 cm
show more


Pallet gross width
120 cm
show more


Master (outer) cases per pallet (sea)
40 pc(s)
show more


Products per pallet (sea)
120 pc(s)
show more


Shipping (inner) case gross weight
15.7 kg
show more


Pallet height (sea)
2.1 m
show more


Pallet gross length
110 cm
show more


Products per pallet (air)
72 pc(s)
show more


Shipping (inner) case length
53.9 cm
show more


Shipping (inner) case width
29.5 cm
show more


Shipping (inner) case net weight
14.8 kg
show more


Products per shipping (inner) case
3 pc(s)
show more


Master (outer) cases per pallet (air)
24 pc(s)
show more


Pallet gross weight (air)
401.7 kg
show more


Shipping (inner) case height
39.3 cm
show more

Certificates

Certification
FCC Class A
CE Class A
ICES-003
VCCI Class A
C-Tick
BSMI
show more

Logistics data

Harmonized System (HS) code
85176990
