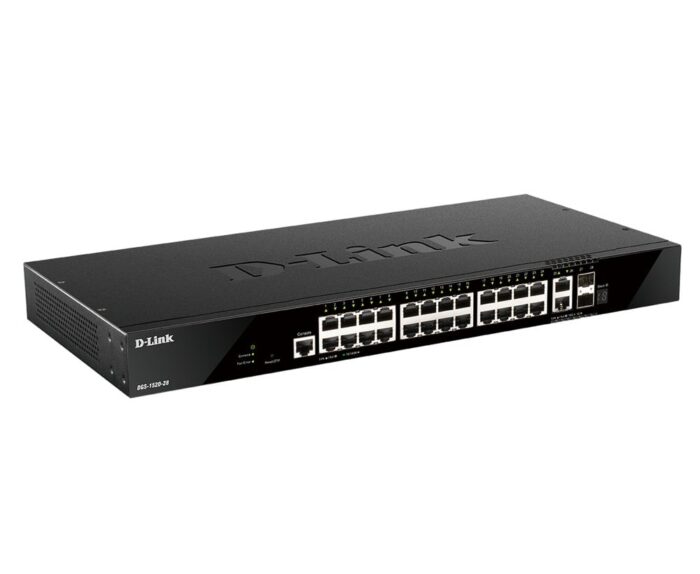

D-Link DGS-1520-28 Network Switch Managed L3 10G Ethernet (100/1000/10000) 1U Black

The D-Link Smart Managed Switch features 24 ports with 10/100/1000BASE-T connectivity, alongside 2 ports with 10GBase-T and 2 ports with 10G SFP+ options. This managed switch operates on Layer 3 and supports a total of 26 basic switching RJ-45 Ethernet ports, capable of handling 10G Ethernet (100/1000/10000). It includes a MAC address table that can store up to 16,384 entries, and the switch offers a switching capacity of 128 Gbit/s. It supports various networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, and IEEE 802.3bz. This switch is designed for easy rack mounting and comes in a 1U form factor.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L3
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
26
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


Gigabit Ethernet (copper) ports quantity
24
show more


10G Ethernet (copper) ports quantity
2
show more


SFP+ module slots quantity
2
show more


Fiber ports quantity
Fiber ports quantity
2
show more


Fiber optic connector
Fiber optic connector
SFP+
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T
show more


Spanning tree protocol
Yes
show more


Head-of-line (HOL) blocking
Yes
show more


Link aggregation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Switching capacity
Switching capacity
128 Gbit/s
show more


Forwarding rate
95.24 Mpps
show more


MAC address table
MAC address table
16384 entries
show more


Store-and-forward
Yes
show more


Static route
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
12288
show more

Security

DHCP features
DHCP snooping
show more


IGMP snooping
Yes
show more


MAC address entries
Static MAC address entries
show more


Loop protection
Yes
show more


BPDU filtering/protection
Yes
show more

Multicast features

Multicast Listener Discovery (MLD) snooping
v1/v2
show more

Protocols

Routing protocols
OSPF, RIP, RIPng, VRRP
show more


GARP VLAN Registration Protocol (GVRP)
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more


LED indicators
Activity, Link, Power, Speed
show more

Performance

Physical stacking (units)
8
show more


Virtual stacking (units)
32
show more


Noise level
Noise level
51.8 dB
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
468252 h
show more

Power

Power source
Power source
AC
show more


AC input voltage
AC input voltage
100 – 240 V
show more


Power consumption (max)
Power consumption (max)
30.4 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more


Heat dissipation
Heat dissipation
103.7 BTU/h
show more

Weight & dimensions

Width
Width
441 mm
show more


Depth
Depth
207.4 mm
show more


Height
Height
44 mm
show more


Weight
Weight
2.33 kg
show more

Certificates

Certification
CE Class A, FCC Class A, IC Class A, RCM Class A, VCCI Class A, BSMI Class A
show more

Logistics data

Harmonized System (HS) code
85176990
show more
