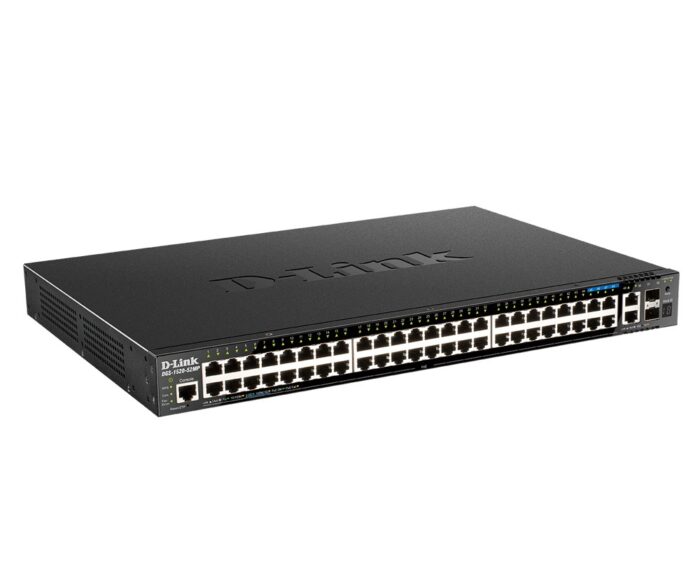

D-Link DGS-1520-52MP/E 44-Port Gigabit SmartPro Switch PoE+ 4 Ports 2.5GBase-T PoE+ 2

The D-Link DGS-1520-52MP is a managed switch designed for Layer 3 operations. It features 44 basic switching RJ-45 Ethernet ports that support Gigabit Ethernet speeds of 10/100/1000 Mbps. The switch has a MAC address table that can accommodate up to 16,384 entries, and it offers a switching capacity of 188 Gbit/s. It supports Power over Ethernet (PoE), allowing for the transmission of both data and electrical power over the same cable. This switch is suitable for rack mounting and has a compact form factor of 1U, making it ideal for space-saving installations in various networking environments.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L3
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
44
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


2.5G Ethernet (copper) ports quantity
4
show more


10G Ethernet (copper) ports quantity
2
show more


SFP+ module slots quantity
2
show more


Fiber ports quantity
Fiber ports quantity
2
show more


Fiber optic connector
Fiber optic connector
SFP+
show more

Network

10G support
10G support
Yes
show more


Spanning tree protocol
Yes
show more


Head-of-line (HOL) blocking
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Link aggregation
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Switching capacity
Switching capacity
188 Gbit/s
show more


Forwarding rate
139.88 Mpps
show more


MAC address table
MAC address table
16384 entries
show more


Store-and-forward
Yes
show more


Static route
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
12288
show more

Security

IGMP snooping
Yes
show more


BPDU filtering/protection
Yes
show more


Loop protection
Yes
show more

Multicast features

Multicast Listener Discovery (MLD) snooping
v1/v2
show more

Protocols

Routing protocols
OSPF, RIP, RIPng, VRRP
show more


GARP VLAN Registration Protocol (GVRP)
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more

Performance

Physical stacking (units)
8
show more


Virtual stacking (units)
32
show more


Noise level
Noise level
56.7 dB
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
328174 h
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


Power consumption (max)
Power consumption (max)
459.5 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
44
show more


Total Power over Ethernet (PoE) budget
370 W
show more

Operational conditions

Heat dissipation
Heat dissipation
1635.1 BTU/h
show more

Weight & dimensions

Weight
Weight
4.8 kg
show more
