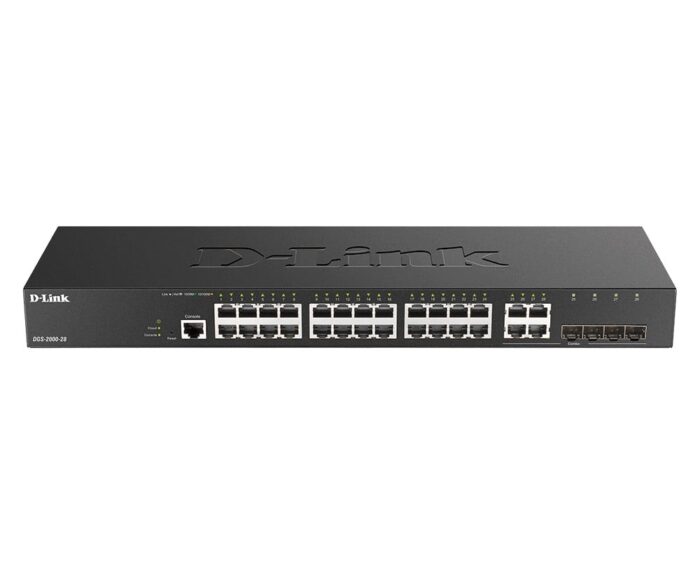

D-Link DGS-2000-28 Network Switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black

The D-Link DGS-2000-28 is a managed switch designed to operate at both Layer 2 and Layer 3 levels. It features 24 RJ-45 Ethernet ports that support Gigabit Ethernet speeds of 10/100/1000 Mbps. This switch includes a console port that uses an RJ-45 connection and operates in full duplex mode. It has a MAC address table capable of storing up to 8000 entries and offers a switching capacity of 56 Gbit/s. The switch adheres to several networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3z. It is designed for rack mounting and has a compact 1U form factor.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2/L3
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more


MIB support
Y
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Combo SFP ports quantity
4
show more


Console port
RJ-45
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Tagged VLAN
show more

Data transmission

Switching capacity
Switching capacity
56 Gbit/s
show more


Forwarding rate
41.7 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Packet buffer memory
4.1 MB
show more

Security

DHCP features
DHCP relay, DHCP snooping
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more


IP-MAC-Port binding
Yes
show more


SSH/SSL support
Yes
show more


Static port security
Yes
show more

Multicast features

Multicast support
Yes
show more


Multicast Listener Discovery (MLD) snooping
Y
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more


LED indicators
Activity, Link, Power, Speed
show more

Performance

Memory type
Memory type
DDR3-SDRAM
show more


Internal memory
Internal memory
256 MB
show more


Flash memory
32 MB
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
250 mm
show more


Height
Height
44 mm
show more


Weight
Weight
2.15 kg
show more

Logistics data

Harmonized System (HS) code
85176990
