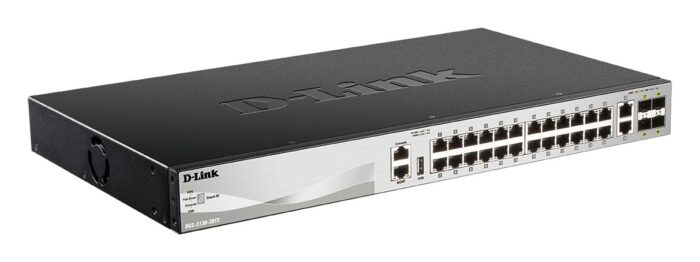

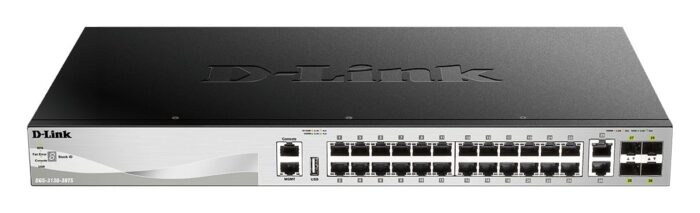

D-Link DGS-3130-30TS/E Network Switch Managed L3 Gigabit Ethernet (10/100/1000) Grey

The D-Link DGS-3130-30TS/E is a managed L3 switch designed for robust networking solutions. It features 24 basic switching RJ-45 Ethernet ports that support Gigabit Ethernet (10/100/1000), providing high-speed connectivity for network devices. Additionally, it includes one USB 2.0 port. The device is equipped with a MAC address table that supports up to 16,384 entries and offers a switching capacity of 168 Gbit/s. The switch adheres to a range of networking standards, including IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, and IEEE 802.1x, ensuring compatibility with various network protocols and enhanced performance features. The power connector for this switch is an AC-in jack.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L3
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more


ARP inspection
Yes
show more


MIB support
RFC 1213; RFC 4188; RFC 1157, 2571-2576; RFC 1907; RFC 1757, 2819; RFC 2021; RFC 1398, 1643, 1650, 2358, 2665; RFC 2674 802.1p 2233, 2863 IF MIB; RFC 2618; RFC 2620; RFC 2925; RFC 2674, 4363; RFC 1065, 1066, 1155, 1156, 2578; RFC 1215; RFC 1212; RFC 1215; RFC 1157, 2571-2576; RFC 4022; RFC 4113; RFC 4293; RFC 2737
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


10G Ethernet (copper) ports quantity
2
show more


SFP+ module slots quantity
4
show more


Fiber optic connector
Fiber optic connector
SFP+
show more


USB 2.0 ports quantity
USB 2.0 ports quantity
1
show more


Power connector
AC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x
show more


10G support
10G support
Yes
show more


Copper ethernet cabling technology
10BASE-T, 10GBASE-T, 100BASE-T, 1000BASE-T
show more


Port mirroring
Yes
show more


Spanning tree protocol
Yes
show more


Head-of-line (HOL) blocking
Yes
show more


Link aggregation
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN
show more


Number of VLANs
4000
show more

Data transmission

Switching capacity
Switching capacity
168 Gbit/s
show more


Forwarding rate
125 Mpps
show more


MAC address table
MAC address table
16384 entries
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more


Packet buffer memory
2 MB
show more

Security

DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping
show more


Access Control List (ACL)
Yes
show more


Access Control List (ACL) egress
512
show more


Access Control List (ACL) ingress
2048
show more


IGMP snooping
Yes
show more


Queue scheduling algorithms
Deficit weighted round robin (DWRR), SP, WRR+SP, Weighted Round Robin (WRR)
show more


Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
show more


BPDU filtering/protection
Yes
show more


Loop protection
Yes
show more


SSH/SSL support
Yes
show more

Multicast features

Multicast support
Yes
show more

Protocols

Routing protocols
RIP
show more

Design

Stackable
Stackable
Yes
show more


Product colour
Product colour
Grey
show more


LED indicators
Yes
show more


Number of fans
Number of fans
1 fan(s)
show more

Performance

Physical stacking (units)
9
show more


Virtual stacking (units)
32
show more


Noise level
Noise level
47 dB
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
388361 h
show more

Power

Power source
Power source
DC
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
30.36 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
103.59 BTU/h
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
250 mm
show more


Height
Height
44 mm
show more


Weight
Weight
3.2 kg
show more

Certificates

Certification
FCC A, CE A, VCCI A, IC, RCM, BSMI, CCC
show more
