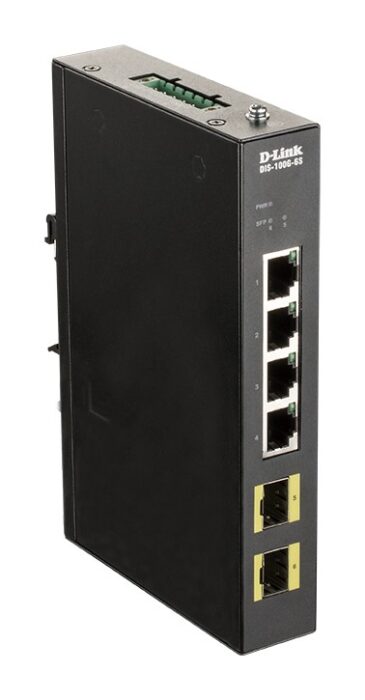

D-Link DIS-100G-6S Network Switch Managed Gigabit Ethernet (10/100/1000) Black

The D-Link Industrial Gigabit Unmanaged Switch features 2 SFP slots and is designed for unmanaged network applications. It includes four gigabit Ethernet (10/100/1000) RJ-45 ports. This switch supports a MAC address table with up to 4000 entries and boasts a switching capacity of 12 Gbit/s. It adheres to several networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3z. The device operates on a DC input voltage range of 12 to 48 volts and is designed for DIN rail mounting.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
4
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP module slots quantity
2
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
show more


Copper ethernet cabling technology
1000BASE-T
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
12 Gbit/s
show more


Forwarding rate
8.928 Mpps
show more


MAC address table
MAC address table
4000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more


Transmission method
Store-and-forward
show more

Design

Stackable
Stackable
Yes
show more


Form factor
Form factor
DIN rail
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP40
show more

Performance

Fanless
Yes
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
569768 h
show more

Power

Power source
Power source
DC
show more


DC input voltage
12 – 48 V
show more


Input current
1 A
show more


Power consumption (max)
Power consumption (max)
4.82 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-20 – 65 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 85 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
162 mm
show more


Depth
Depth
28 mm
show more


Height
Height
102 mm
show more


Weight
Weight
446 g
show more

Certificates

Certification
47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A)
EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5 Surge, EN 61000-4-6 CS, EN 61000-4-8
IEC 60068-2-27 Shock, • IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration
CE, FCC
show more

Logistics data

Harmonized System (HS) code
85176990
