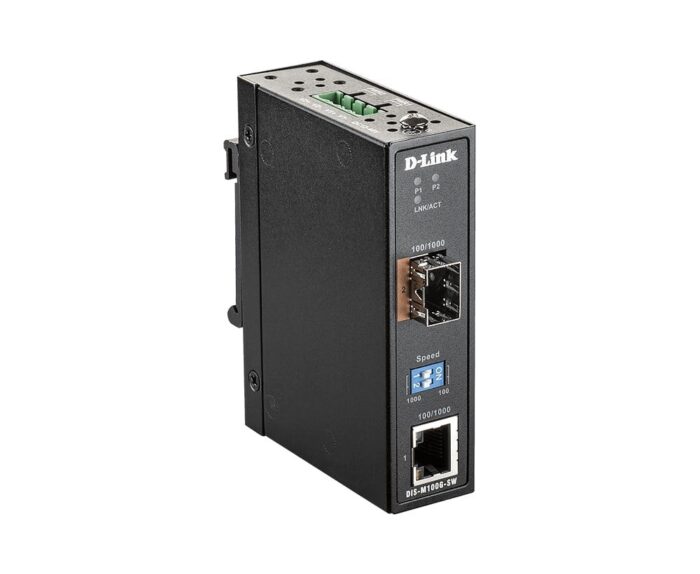

D-Link DIS-M100G-SW Network Media Converter 4000 Mbit/s Multi-Mode, Single-Mode Black

The D-Link DIS-M100G-SW is a high-performance device designed to support a maximum data transfer rate of 4000 Mbit/s. It features a versatile converter input interface that supports 100BASE-FX, 100Base-TX, 1000Base-T, and 1000Base-X standards. Compliant with networking standards IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3z, this product is well-equipped for diverse networking requirements. The device is compatible with both multi-mode and single-mode fiber mode structures.

It comes with LED indicators to display link and network status, facilitating easy monitoring and maintenance. The product's sleek, black design is complemented by its robust build which meets the International Protection (IP) code of IP30, ensuring reliable operation in various environments.

The D-Link DIS-M100G-SW is equipped with an SFP fiber optic connector and offers wired connectivity technology for stable data transmission. It operates with an output voltage range of 12 to 48 V and consumes a typical power of 3.6 W, making it an efficient choice for networking applications.

Network

Maximum data transfer rate
Maximum data transfer rate
4000 Mbit/s
show more


Converter input interface
Converter input interface
100BASE-FX, 100Base-TX, 1000Base-T, 1000Base-X
show more


Networking standards
Networking standards
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Packet forwarding rate (100 Mbps)
2.976 pps
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Auto-negotiation
Yes
show more


Duplex system
Duplex system
Full, Half
show more

Performance

Fiber mode structure
Multi-mode, Single-mode
show more

Features

Internal
Internal
No
show more


Plug and Play
Plug and Play
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP30
show more


LED indicators
Link, Network
show more


Product colour
Product colour
Black
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


Fiber ports quantity
Fiber ports quantity
1
show more


Fiber optic connector
Fiber optic connector
SFP
show more


DC-in jack
DC-in jack
Yes
show more

Power

Output voltage
12 – 48 V
show more


Power consumption (typical)
Power consumption (typical)
3.6 W
show more

Weight & dimensions

Width
Width
70 mm
show more


Depth
Depth
95 mm
show more


Height
Height
26.1 mm
show more


Weight
Weight
190 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 70 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Certificates

Certification
CE, FCC
show more

Logistics data

Harmonized System (HS) code
85176990
show more
