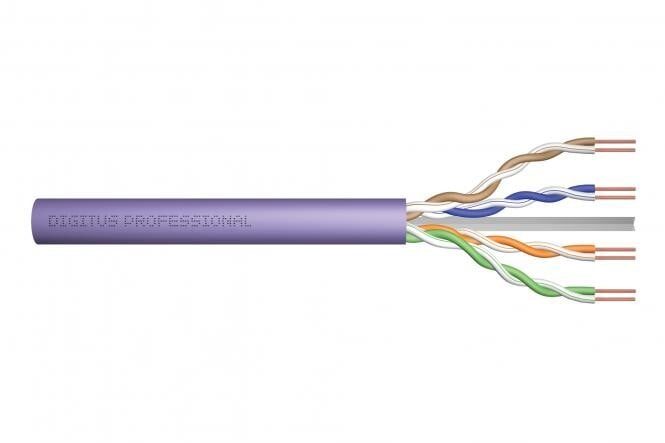

CAT 6 U-UTP Installation Cable, 250 MHz, AWG 23/1 Dca (LSZH-1), 100 m, Paper Box, Simplex, Purple

The DIGITUS DK-1614-VH-1 is a high-performance CAT 6 Twisted Pair Installation Cable designed for reliable data transmission in various environments. This cable includes bare annealed copper conductors with a solid AWG 23/1 structure, ensuring optimal conductivity and minimal signal loss. It consists of 8 insulated conductors twisted into 4 pairs, delivering excellent performance characteristics, including an impedance of 100±5 Ohm at frequencies up to 250 MHz. Constructed with HD-PE insulation and an LSZH outer sheath, it is suitable for installations that require low smoke and halogen-free materials.

Built for durability, the DIGITUS DK-1614-VH-1 can withstand temperatures ranging from -20 °C to +60 °C during shipping and storage and -20 °C to +75 °C during operation. The cable has an overall diameter of approximately 6.1 mm for Eca classification and weighs 41 kg/km. It features a maximum DC loop resistance of 147 Ohm/km and a signal propagation delay of up to 535 nS/100 m, ensuring efficient data transmission. The unshielded U-UTP design further enhances its flexibility for various installation scenarios.
