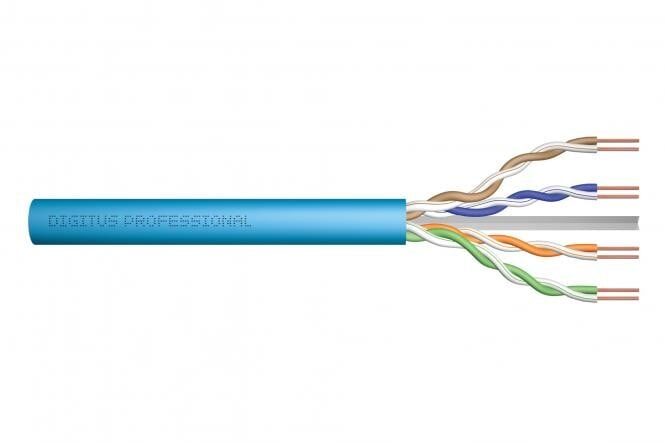

CAT 6A U-UTP Installation Cable, 500 MHz B2ca (LSZH-1), AWG 23/1, 500 m Drum, SX, Blue

The DIGITUS DK-1616-A-VH-5 is a high-quality CAT 6A cable designed to ensure reliable data transmission across various applications. It features 8 insulated conductors twisted into 4 pairs, delivering optimal performance with an impedance of 100±5 Ohm at frequencies up to 600 MHz. Its construction utilizes bare annealed copper conductors with HD-PE (High Density Polyethylene) insulation, offering excellent electrical properties, including a capacitance of 40 pF/m and a minimum insulation resistance of 5 GOhm x km. The outer sheath is made from LSZH material, complying with Dca to B2ca standards according to EN 50575, providing safety in case of fire.

The cable is designed to operate in a wide range of temperatures, with an operating range from -20 °C to +75 °C and an installation range from 0 °C to +50 °C. The light blue outer sheath offers a professional look while meeting CPR B2ca classification standards for fire safety. With a length of 500 meters, the DIGITUS DK-1616-A-VH-5 cable is ideal for extensive installations and features durability with a maximum tensile loading capacity of 150 Newtons and a dynamic bending radius of 8x AD mm minimum.
