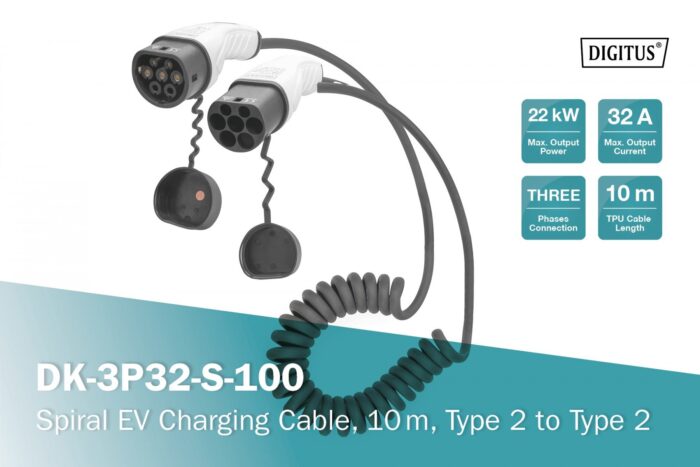

Spiral charging cable for electric vehicles EV, Type2-Type2, three-phase 400V, 32A, 22kW, 10m

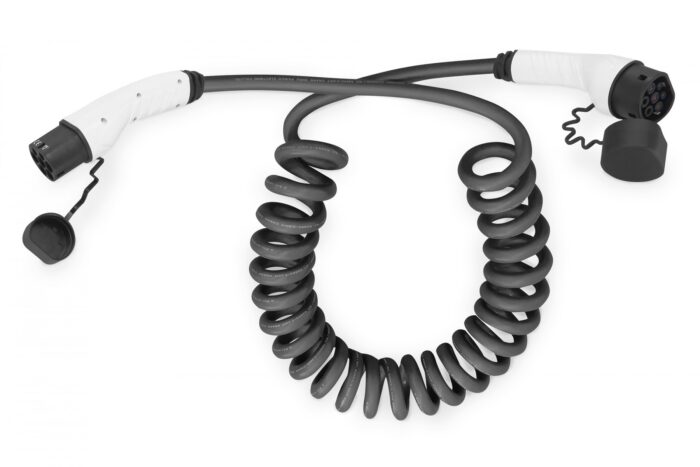

This three-phase EV charging cable is crafted for efficient energy transfer, facilitating the connection between electric vehicles and charging stations. It has a voltage rating of 400V and a current capacity of 32A, ensuring a swift and stable charging process for compatible electric vehicles. The cable is 10 meters long, providing ample reach from the charging station to the vehicle. Its spiral design offers flexibility and a compact storage solution, reducing the risk of tangles and keeping the area around the charging station organized. With Type 2 connectors on both ends, this cable is compatible with a wide range of European electric vehicles and charging systems that adhere to the Type 2 standard. The robust construction of the connectors ensures secure and consistent connectivity throughout each charge cycle. The cable is rated IP55, indicating high protection against dust ingress and low-pressure water jets from any direction, making it suitable for outdoor use and capable of withstanding various environmental conditions. The model number dk-3p32-s-100 identifies this specific product within the digitus range, allowing users to reference and verify the cable's specifications for their needs.

Features

Cable colour
Cable colour
Black
show more


Connector 1
Connector 1
Type 2
show more


Connector 2
Connector 2
Type 2
show more


Connector 1 form factor
Straight
show more


Connector 2 form factor
Straight
show more


International Protection (IP) code
International Protection (IP) code
IP55
show more


Cable type
Cable type
5G6 mm²+2×0.5 mm²
show more


Protective cap
Yes
show more

Power

Number of phases
3
show more


Maximum operating current (three-phase)
32 A
show more


Operating voltage
Operating voltage
415 V
show more

Weight & dimensions

Cable length
Cable length
10 m
show more


Cable diameter
Cable diameter
1.68 cm
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-30 – 50 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more

Packaging data

Manual
Yes
show more


Quantity per pack
1 pc(s)
show more
