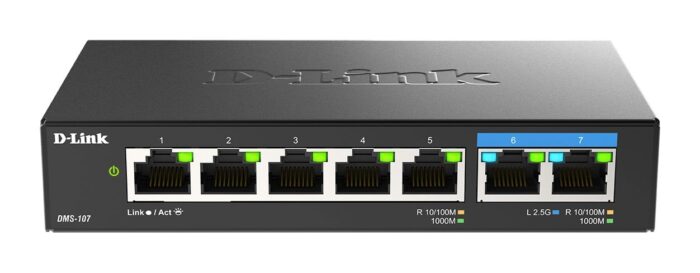

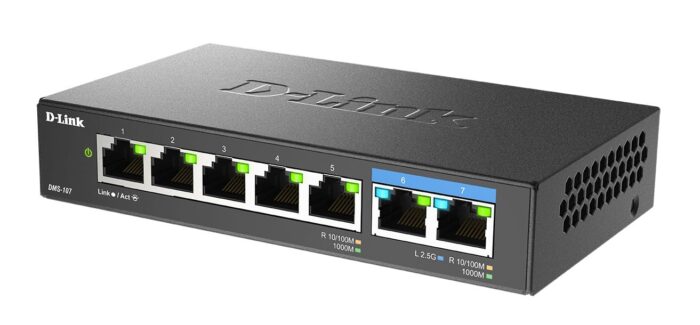

D-Link DMS-107/E Network Switch Unmanaged Gigabit Ethernet (10/100/1000) Black

Introducing the D-Link 7-Port Multi-Gigabit Unmanaged Switch, designed to enhance your network with seamless connectivity. This switch is of the unmanaged type, providing simplicity and ease of use. It features five basic switching RJ-45 Ethernet ports, compatible with Gigabit Ethernet speeds of 10/100/1000. The device supports a MAC address table with a capacity of 2000 entries, ensuring efficient network management. With a switching capacity of 20 Gbit/s, it delivers high-performance networking for demanding environments. The switch adheres to several networking standards, including IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, and IEEE 802.3x, ensuring broad compatibility and reliable performance. It operates with a DC input voltage of 12 V, making it a versatile and powerful addition to any network setup.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
5
show more

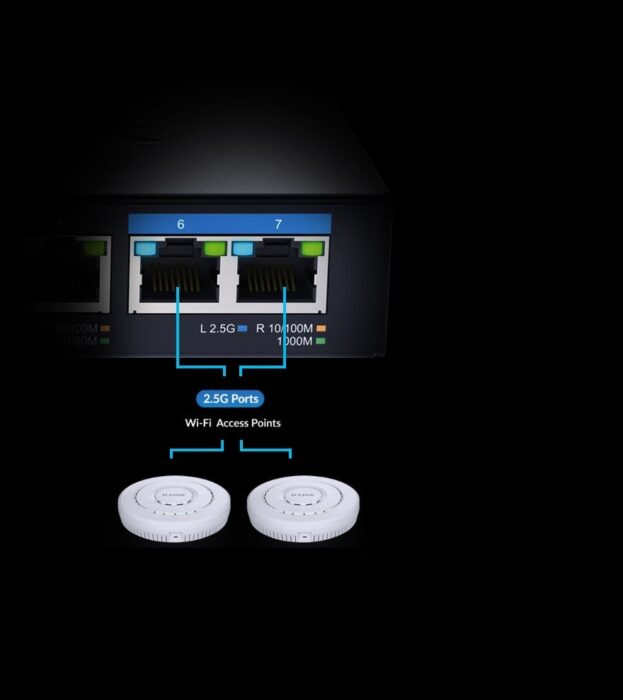

2.5G Ethernet (copper) ports quantity
2
show more

Network

Networking standards
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T, 2500BASE-T
show more


MAC address auto-learning supported
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
20 Gbit/s
show more


Forwarding rate
14.88 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more


Number of queues
8
show more


Packet buffer memory
2 MB
show more

Design

Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Activity, Link, Power
show more

Performance

Fanless
Yes
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
944277.78 h
show more

Power

Power source
Power source
DC
show more

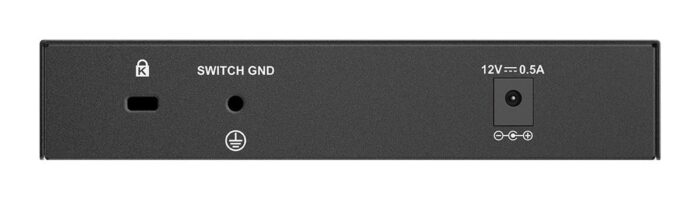

DC input voltage
12 V
show more


Input current
0.5 A
show more


Power consumption (typical)
Power consumption (typical)
3.37 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
14.28 BTU/h
show more

Weight & dimensions

Width
Width
145 mm
show more


Depth
Depth
28 mm
show more


Height
Height
82 mm
show more


Weight
Weight
295.2 g
show more

Sustainability

Sustainability compliance
Yes
show more

Certificates

Compliance certificates
BSMI, CE, Low Voltage Directive (LVD), RoHS
show more
