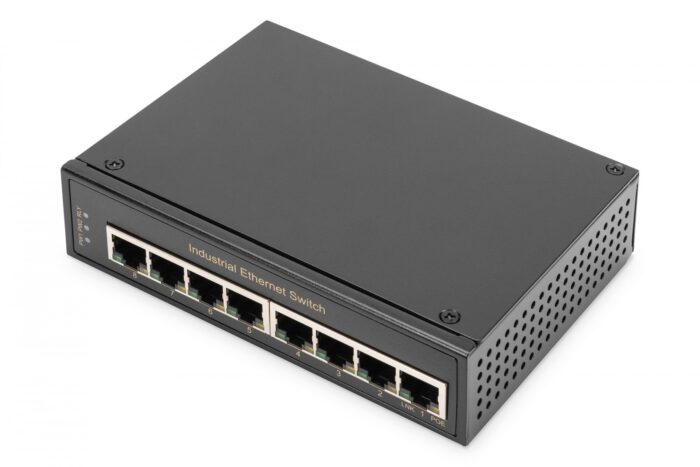

Industrial Gigabit Ethernet Switch 8-Port, DIN Rail, Extended Temperature Range

The Digitus 8 port Gigabit Ethernet network switch is designed for industrial use and operates as an unmanaged switch. It features eight basic switching RJ-45 Ethernet ports, each supporting Gigabit Ethernet speeds of 10/100/1000 Mbps. The switch operates in full duplex mode and has a MAC address table that can store up to 8000 entries. It offers a switching capacity of 16 Gbit/s and supports networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x. The device can operate with a DC input voltage ranging from 12 to 56 volts. Additionally, it is wall mountable for convenient installation.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

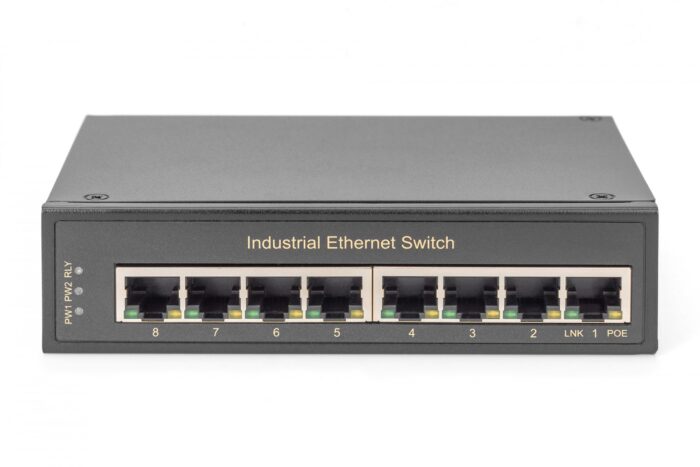

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-TX
show more


Full duplex
Full duplex
Yes
show more


Flow control support
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


VLAN support
VLAN support
No
show more

Data transmission

Switching capacity
Switching capacity
16 Gbit/s
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more

Design

Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


Suitable for outdoor use
Suitable for outdoor use
No
show more


Vandal-proof
Vandal-proof
No
show more


Wall mountable
Wall mountable
Yes
show more


DIN rail mounting
Yes
show more

Performance

Plug and Play
Plug and Play
Yes
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
500000 h
show more

Power

Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more

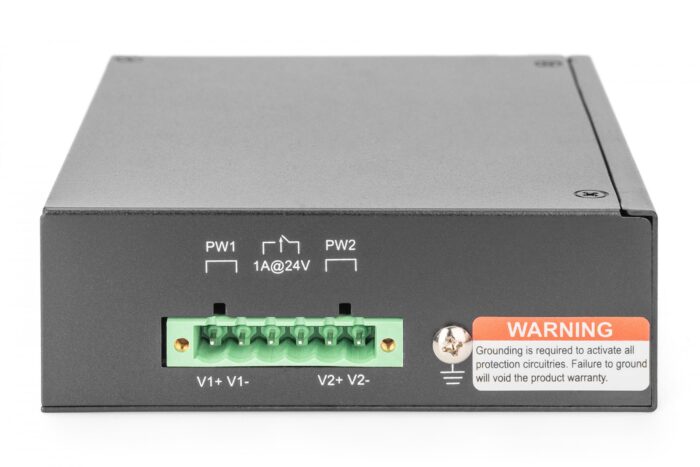

DC input voltage
12 – 56 V
show more


Power consumption (typical)
Power consumption (typical)
5 W
show more


Power protection features
Power protection features
Over voltage, Short circuit
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Other features

Ethernet interface type
Gigabit Ethernet
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 85 °C
show more

Weight & dimensions

Width
Width
36.2 mm
show more


Depth
Depth
105 mm
show more


Height
Height
142 mm
show more


Weight
Weight
520 g
show more

Packaging content

Quick start guide
Quick start guide
Yes
show more

Packaging data

Terminal block included
Yes
show more


Package width
Package width
65 mm
show more


Package depth
Package depth
165 mm
show more


Package height
Package height
215 mm
show more


Package volume
2305.88 cm³
show more


Package weight
Package weight
787.5 g
show more

Certificates

Certification
EN 50155
show more

Logistics data

UK Trade Tariff code
85176200
show more


Country of origin
Country of origin
Taiwan
show more


Master (outer) case width
240 mm
show more


Master (outer) case length
350 mm
show more


Harmonized System (HS) code
85176990
show more


Master (outer) case height
560 mm
show more


Master (outer) case gross weight
12.6 kg
show more


Master (outer) case volume
47040 cm³
show more


Products per master (outer) case
16 pc(s)
show more
