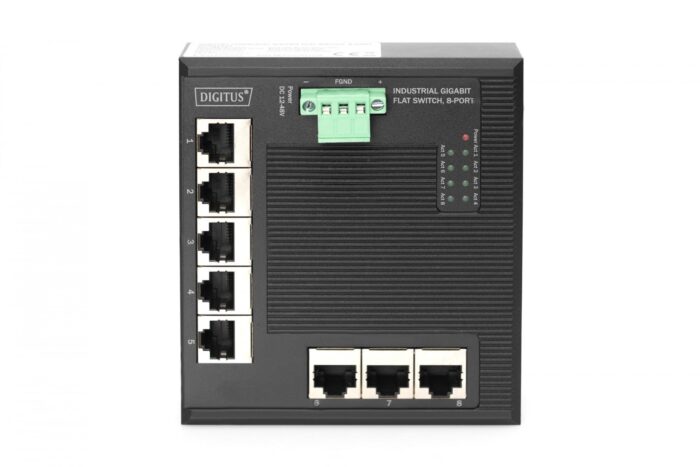

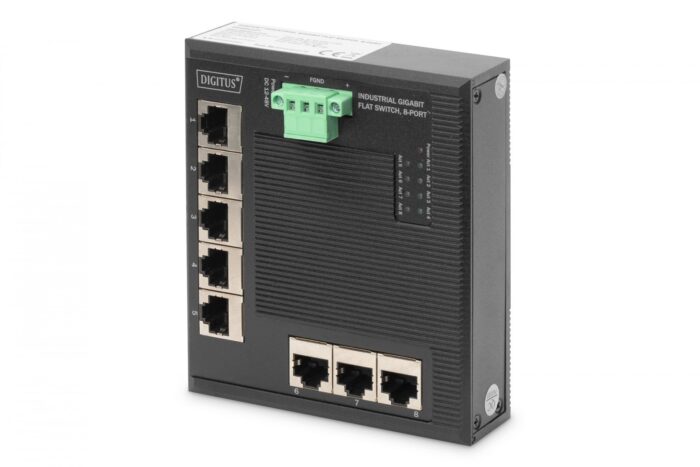

Industrial 8-Port Gigabit Flat Switch with 5 Ports, DIN Rail, Extended Temperature Range

The Digitus 8 Port Gigabit Ethernet Network Switch is a flat, industrial-grade device designed for optimal performance in diverse networking environments. This unmanaged switch type features 8 basic switching RJ-45 Ethernet ports, all supporting Gigabit Ethernet (10/100/1000), allowing for high-speed data transfer. The switch operates in full duplex mode and can handle up to 4000 entries in its MAC address table. It adheres to multiple networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x. The switch supports a DC input voltage range from 12 to 48 volts and can be conveniently mounted on a wall.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


MAC address auto-aging supported
Yes
show more


MAC address auto-learning supported
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


VLAN support
VLAN support
No
show more

Data transmission

MAC address table
MAC address table
4000 entries
show more


Store-and-forward
Yes
show more

Design

Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Link, Power
show more


Suitable for outdoor use
Suitable for outdoor use
No
show more


Vandal-proof
Vandal-proof
No
show more


International Protection (IP) code
International Protection (IP) code
IP40
show more


Wall mountable
Wall mountable
Yes
show more

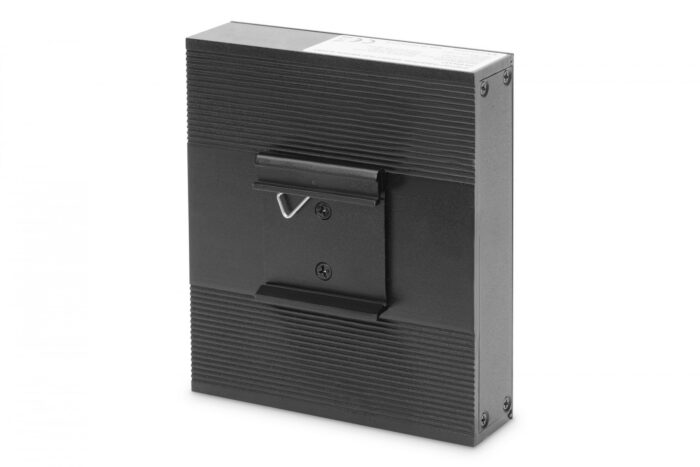

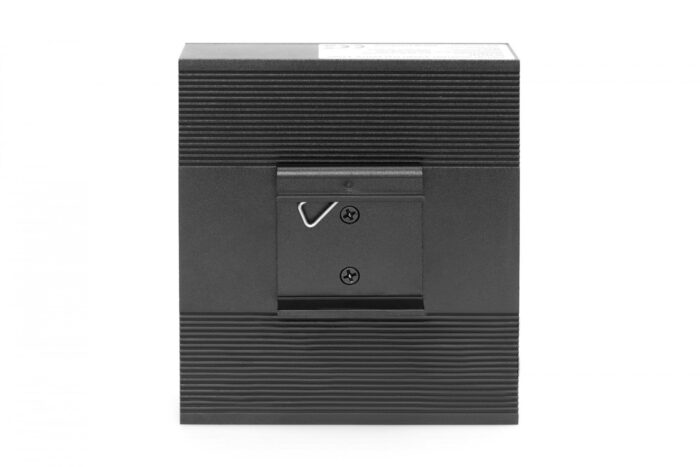

DIN rail mounting
Yes
show more

Performance

Fanless
Yes
show more

Power

DC input voltage
12 – 48 V
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Other features

Ethernet interface type
Gigabit Ethernet
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 85 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
135 mm
show more


Depth
Depth
162 mm
show more


Height
Height
53 mm
show more

Packaging content

Quick start guide
Quick start guide
Yes
show more

Packaging data

Package width
Package width
155 mm
show more


Package depth
Package depth
215 mm
show more


Package volume
2332.75 cm³
show more


Package weight
Package weight
624 g
show more

Logistics data

UK Trade Tariff code
85176200
show more


Country of origin
Country of origin
China
show more


Harmonized System (HS) code
85176990
show more
