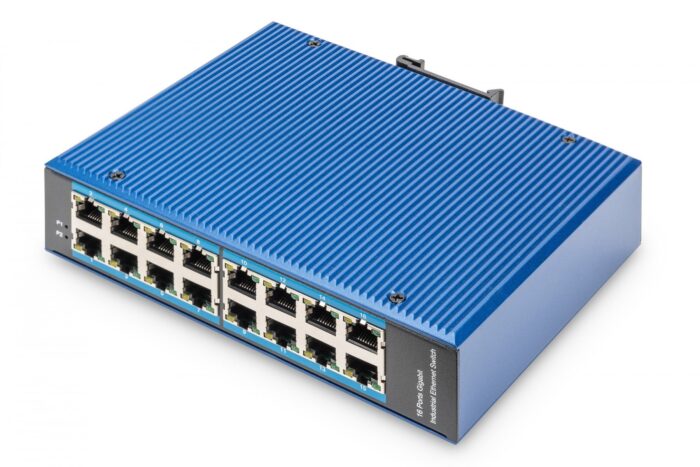

16 Port 10/100/1000Mbps Industrial Switch Wall-mount and DIN-Rail

The Digitus 16 Port Gigabit Ethernet Network Switch is an industrial-grade, unmanaged switch. It features 16 RJ-45 Ethernet ports supporting Gigabit Ethernet (10/100/1000) for basic switching. The switch operates in full duplex mode and accommodates a MAC address table with up to 8000 entries. Its switching capacity is 1 Gbit/s. The switch supports networking standards such as IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3z. It requires a DC input voltage ranging from 12 to 52 V and is equipped with a DC-in jack for power connectivity.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
16
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
No
show more


Full duplex
Full duplex
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Flow control support
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


VLAN support
VLAN support
No
show more

Data transmission

Switching capacity
Switching capacity
1 Gbit/s
show more


Forwarding rate
42 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Packet buffer memory
4.1 MB
show more

Design

Rack mounting
Rack mounting
No
show more


Stackable
Stackable
No
show more


Product colour
Product colour
Blue
show more


Housing material
Housing material
Aluminium
show more


Suitable for outdoor use
Suitable for outdoor use
No
show more


Vandal-proof
Vandal-proof
No
show more

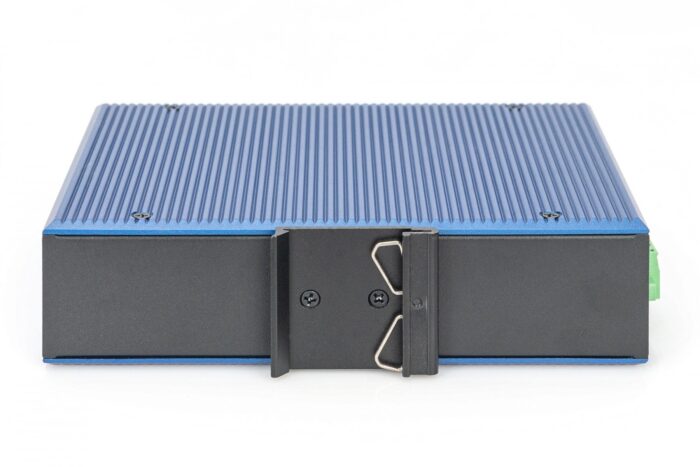

DIN rail mounting
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP40
show more

Performance

Fanless
Yes
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
300000 h
show more

Power

Power source
Power source
DC
show more


Power supply included
Power supply included
No
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more

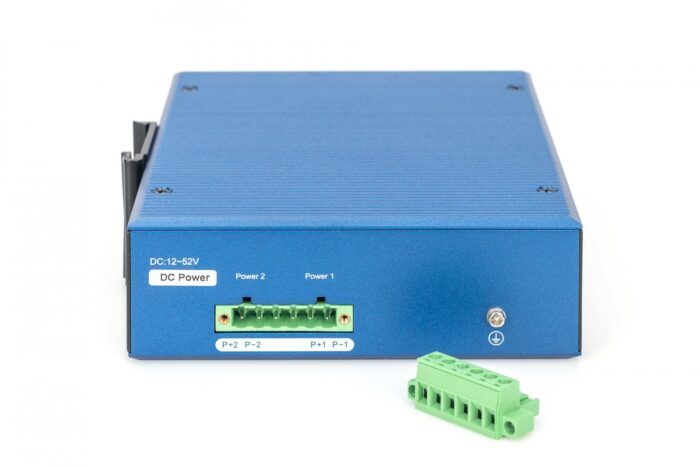

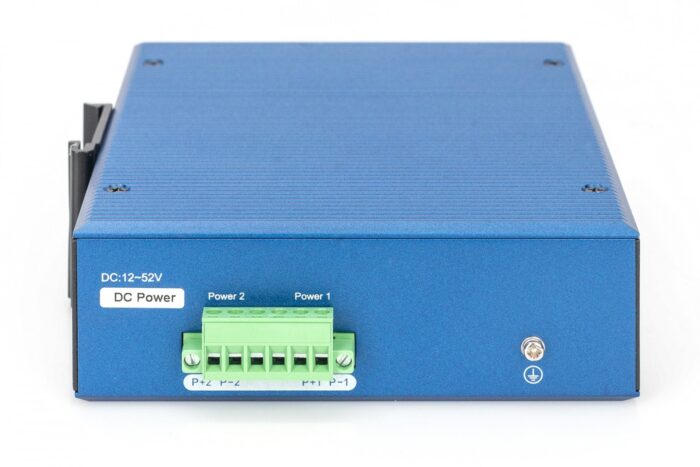

DC input voltage
12 – 52 V
show more


Power consumption (typical)
Power consumption (typical)
10 W
show more


Surge protection
Yes
show more


Surge protection voltage
4 kV
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Other features

Bandwidth
56 Gbit/s
show more


Ethernet interface type
Gigabit Ethernet
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 80 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 80 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
175.6 mm
show more


Depth
Depth
135 mm
show more


Height
Height
45.5 mm
show more


Weight
Weight
900 g
show more

Packaging content

Manual
Yes
show more

Packaging data

Package width
Package width
208 mm
show more


Package depth
Package depth
186 mm
show more


Package volume
2804.88 cm³
show more


Package height
Package height
72.5 mm
show more


Package weight
Package weight
1.08 kg
show more

Logistics data

UK Trade Tariff code
85176200
show more


Country of origin
Country of origin
China
show more
