Industrial 8+2-Port Fast Ethernet PoE Switch, 8-Port PoE FE RJ45, 2 GE SFP Ports

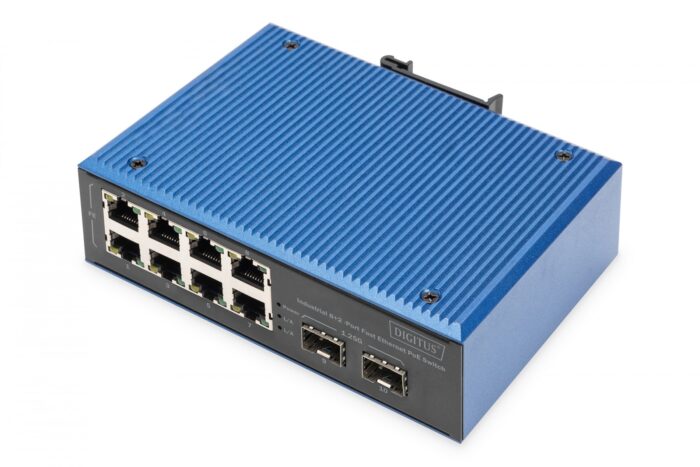

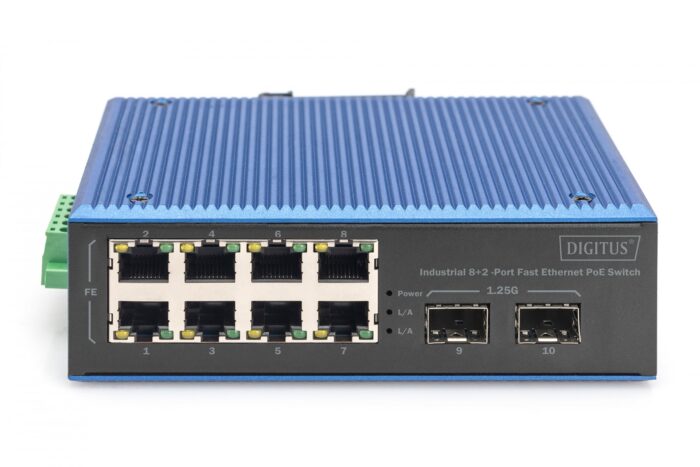

The Digitus Industrial 8+2 port Fast Ethernet PoE switch is an unmanaged switch equipped with various features. It includes 8 basic switching RJ-45 Ethernet ports of the Fast Ethernet type (10/100) and 2 installed SFP modules. The switch supports full duplex communication and offers a MAC address table with a capacity of 2000 entries. Its switching capacity is 1 Gbit/s. It adheres to networking standards of IEEE 802.3af. The DC input voltage ranges from 48 to 57 V. Additionally, the device supports Power over Ethernet (PoE).

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more


Fast Ethernet (copper) ports quantity
8
show more


Installed SFP modules quantity
Installed SFP modules quantity
2
show more


Fiber optic connector
Fiber optic connector
SFP
show more

Network

Networking standards
Networking standards
IEEE 802.3af
show more


10G support
10G support
No
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
No
show more

Data transmission

Switching capacity
Switching capacity
1 Gbit/s
show more


Forwarding rate
4.2 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more


Packet buffer memory
1.2 MB
show more

Design

Rack mounting
Rack mounting
No
show more


Stackable
Stackable
No
show more


Product colour
Product colour
Black, Blue
show more


Housing material
Housing material
Metal
show more


Suitable for outdoor use
Suitable for outdoor use
No
show more


Vandal-proof
Vandal-proof
No
show more

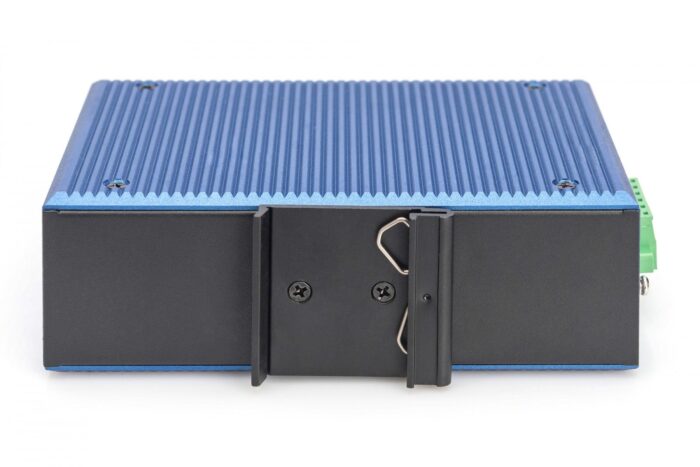

DIN rail mounting
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP40
show more

Performance

Plug and Play
Plug and Play
Yes
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
300000 h
show more

Power

Power source
Power source
DC
show more


Power supply included
Power supply included
Yes
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more

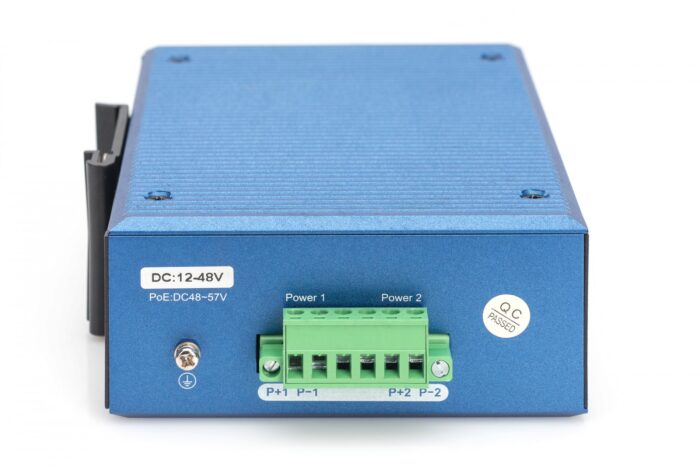

DC input voltage
48 – 57 V
show more


Power consumption (typical)
Power consumption (typical)
8 W
show more


Surge protection
Yes
show more


Surge protection voltage
4 kV
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more

Other features

Bandwidth
5.6 Gbit/s
show more


Ethernet interface type
Fast Ethernet
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 80 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 80 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
143.7 mm
show more


Depth
Depth
104 mm
show more


Height
Height
47.7 mm
show more


Weight
Weight
700 g
show more

Packaging content

Quick start guide
Quick start guide
Yes
show more


Manual
Yes
show more

Packaging data

Package width
Package width
158 mm
show more


Package depth
Package depth
66 mm
show more


Package volume
2221.16 cm³
show more


Package height
Package height
213 mm
show more


Package weight
Package weight
700 g
show more

Logistics data

UK Trade Tariff code
85176200
show more


Country of origin
Country of origin
China
show more
