Industrial Gigabit Ethernet Media Converter, MM SC Connector, 850nm, Up to 0.5km

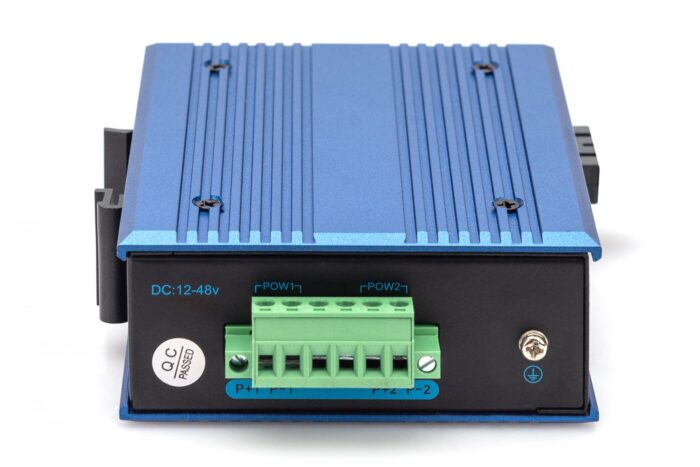

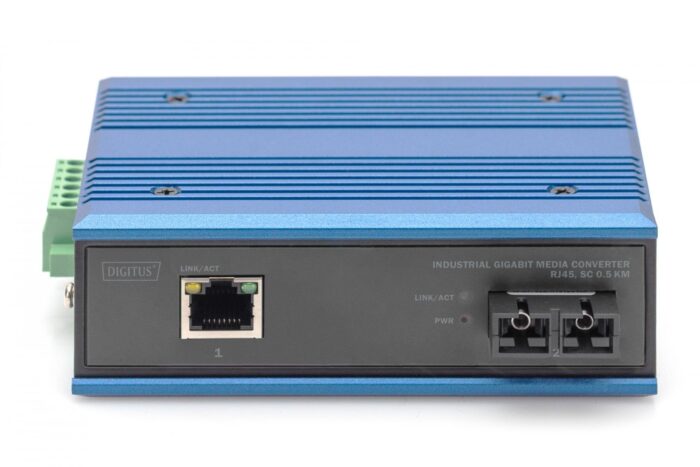

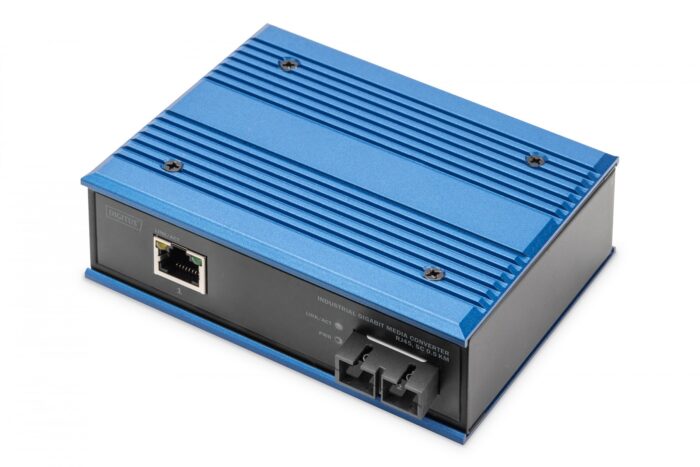

The Digitus Industrial Gigabit Media Converter features an RJ45 and SC interface with a data transfer rate of up to 1000 Mbit/s. It includes input interfaces of 10Base-T, 100Base-T, and 1000Base-T, and an output interface of 1000Base-SX. The maximum transfer distance is 500 meters, with a wavelength of 850 nm, and it is designed for multi-mode fiber structure. It comes with LED indicators for activity and status, and is available in black and blue colors. The housing of the device is made of metal, and it uses an SC fiber optic connector. The connectivity technology is wired, requiring an input voltage of 12 to 48 V, and it has a typical power consumption of 3 W.

Network

Maximum data transfer rate
Maximum data transfer rate
1000 Mbit/s
show more


Converter input interface
Converter input interface
10Base-T, 100Base-T, 1000Base-T
show more


Converter output interface
1000Base-SX
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
show more


Fiber ethernet cabling technology
1000BASE‑SX
show more


Data transfer rate
Data transfer rate
1000 Mbit/s
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Performance

Maximum transfer distance
Maximum transfer distance
500 m
show more


Wavelength
Wavelength
850 nm
show more


Fiber mode structure
Multi-mode
show more


Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
show more

Features

Internal
Internal
No
show more


Digital Diagnostics Monitoring (DDM)
No
show more


International Protection (IP) code
International Protection (IP) code
IP40
show more

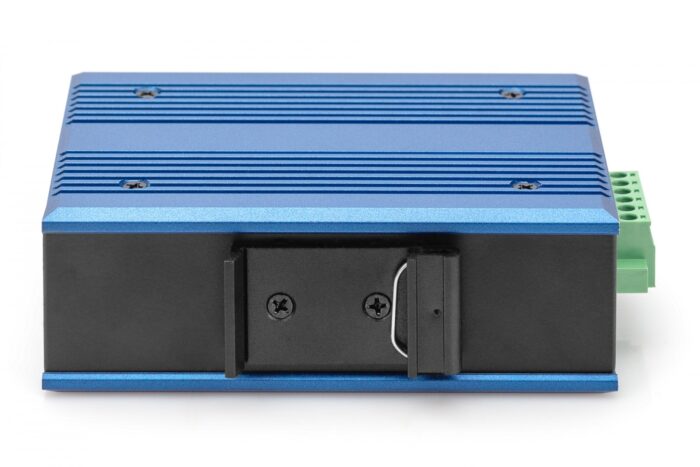

DIN rail mounting
Yes
show more


Product colour
Product colour
Black, Blue
show more


LED indicators
Activity, Status
show more


Housing material
Housing material
Metal
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


Fiber ports quantity
Fiber ports quantity
2
show more


Fiber optic connector
Fiber optic connector
SC
show more

Power

Input voltage
Input voltage
12 – 48 V
show more


Power consumption (typical)
Power consumption (typical)
3 W
show more


Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Weight & dimensions

Width
Width
118 mm
show more


Depth
Depth
92.4 mm
show more


Height
Height
40 mm
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 80 °C
show more

Packaging content

Quick installation guide
Yes
show more

Packaging data

Package width
Package width
135 mm
show more


Package depth
Package depth
54 mm
show more


Package height
Package height
165 mm
show more


Package volume
1202.85 cm³
show more


Package weight
Package weight
558.333 g
show more

Logistics data

UK Trade Tariff code
85176200
show more


Country of origin
Country of origin
China
show more
