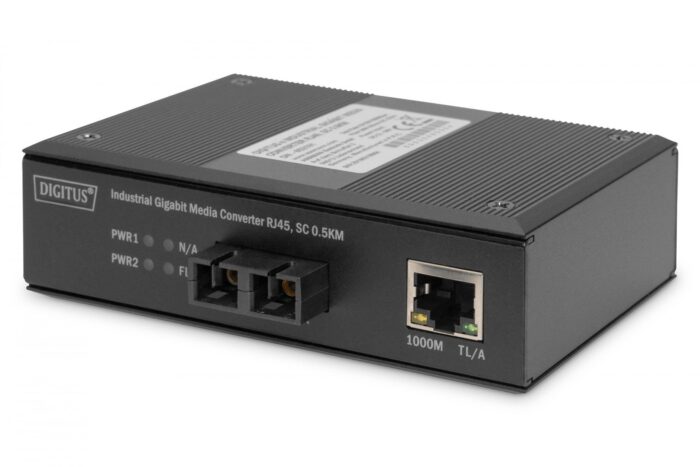

Industrial Gigabit Ethernet Media Converter, MM SC Connector, 850nm, Up to 0.5km

The Digitus Industrial Gigabit Media Converter features a maximum data transfer rate of 1000 Mbit/s. It includes an input interface compatible with 10Base-T, 100Base-TX, and 1000Base-TX, as well as an output interface suitable for 1000Base-SX. This converter supports a maximum transfer distance of 500 meters and operates at a wavelength of 850 nm with a multi-mode fiber structure. The product comes in black and is constructed with a durable metal housing, offering an International Protection rating of IP40. It is equipped with an SC fiber optic connector and utilizes wired connectivity technology. The output voltage range is between 12 and 56 volts.

Network

Maximum data transfer rate
Maximum data transfer rate
1000 Mbit/s
show more


Converter input interface
Converter input interface
10Base-T, 100Base-TX, 1000Base-TX
show more


Converter output interface
1000Base-SX
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Copper ethernet cabling technology
100BASE-TX, 1000BASE-TX
show more


Fiber ethernet cabling technology
1000BASE‑SX
show more


Data transfer rate
Data transfer rate
1000 Mbit/s
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Performance

Maximum transfer distance
Maximum transfer distance
500 m
show more


Wavelength
Wavelength
850 nm
show more


Fiber mode structure
Multi-mode
show more


Fiber cable diameters supported (core/cladding)
50/125,62.5/125,100/140 µm
show more

Features

Internal
Internal
No
show more


Digital Diagnostics Monitoring (DDM)
No
show more


International Protection (IP) code
International Protection (IP) code
IP40
show more


DIN rail mounting
Yes
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more


Housing material
Housing material
Metal
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


Fiber ports quantity
Fiber ports quantity
1
show more


Fiber optic connector
Fiber optic connector
SC
show more


DC-in jack
DC-in jack
Yes
show more

Power

Output voltage
12 – 56 V
show more


Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Weight & dimensions

Width
Width
80 mm
show more


Depth
Depth
40 mm
show more


Height
Height
120 mm
show more


Weight
Weight
300 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 85 °C
show more

Packaging content

Quick installation guide
Yes
show more

Packaging data

Package width
Package width
180 mm
show more


Package depth
Package depth
70 mm
show more


Package height
Package height
220 mm
show more


Package volume
2772 cm³
show more


Package weight
Package weight
500 g
show more

Logistics data

Harmonized System (HS) code
85176990
show more


UK Trade Tariff code
85176200
show more


Country of origin
Country of origin
China
show more


Master (outer) case width
360 mm
show more


Master (outer) case length
450 mm
show more


Master (outer) case height
370 mm
show more


Master (outer) case gross weight
10 kg
show more


Master (outer) case volume
59940 cm³
show more


Products per master (outer) case
20 pc(s)
