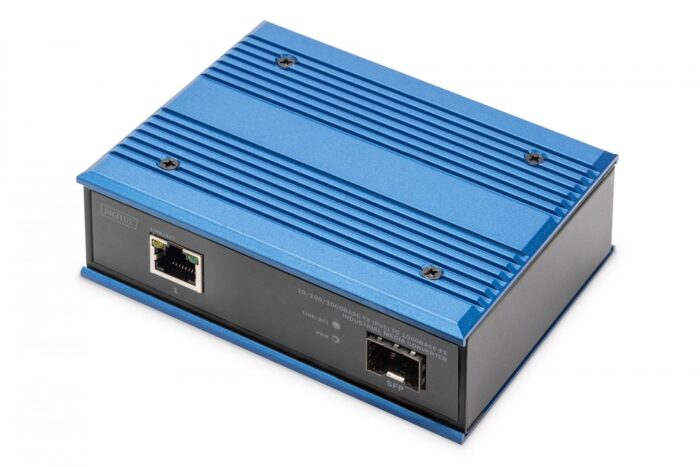

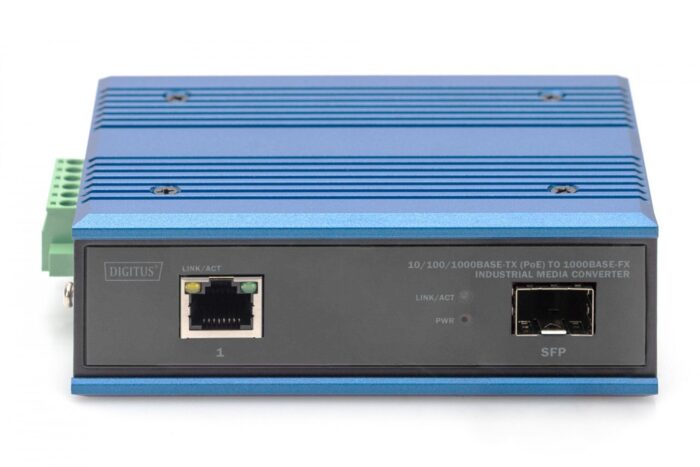

Industrial Gigabit Ethernet PoE+ Media Converter SFP Open Slot, without SFP Module, PSE, 802.3at

The Digitus 10/100/1000Base-TX (PoE) to 1000Base-FX Industrial Media Converter is a high-performance device designed for efficient data transfer. It supports a maximum data transfer rate of 1000 Mbps. The converter features multiple input interfaces, including 10Base-T, 1000Base-T, 100Base-TX, 1000Base-TX, and 100Base-T, while its output interface is 1000Base-FX. It has a buffer size of 1200 KB and a mean time between failures (MTBF) of 300,000 hours. The product comes with LED indicators for link and power status. This media converter is available in black and blue colors and is made of durable aluminum housing. It uses an FX type fiber optic connector and operates on wired connectivity technology. The input voltage range is 48 to 57 volts, with a typical power consumption of 3 watts. Additionally, it has a total Power over Ethernet (PoE) budget of 30 watts.

Network

Maximum data transfer rate
Maximum data transfer rate
1000 Mbit/s
show more


Converter input interface
Converter input interface
10Base-T, 1000Base-T, 100Base-TX, 1000Base-TX, 100Base-T
show more


Converter output interface
1000Base-FX
show more


Networking standards
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Copper ethernet cabling technology
10BASE-T, 1000BASE-T, 100BASE-TX, 1000BASE-TX, 100BASE-T
show more


Fiber ethernet cabling technology
1000BASE-FX
show more


Data transfer rate
Data transfer rate
1000 Mbit/s
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Duplex system
Duplex system
Full, Half
show more


Cable types supported
Cat3, Cat4, Cat5
show more

Performance

Buffer size
Buffer size
1200 KB
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
300000 h
show more

Features

Internal
Internal
No
show more


Digital Diagnostics Monitoring (DDM)
No
show more


International Protection (IP) code
International Protection (IP) code
IP40
show more

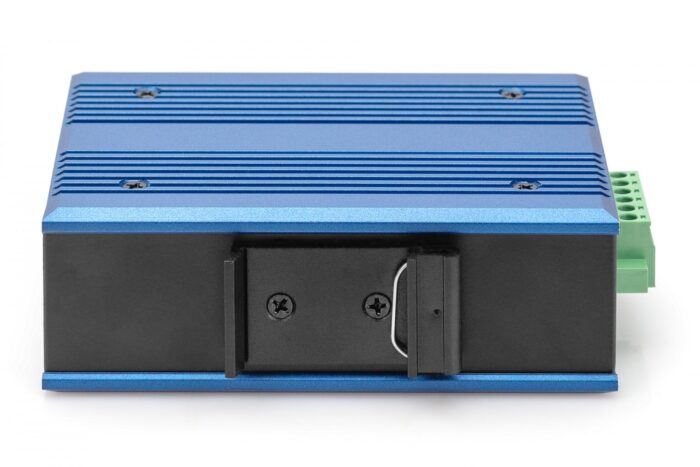

DIN rail mounting
Yes
show more


Product colour
Product colour
Black, Blue
show more


LED indicators
Link, Power
show more


Housing material
Housing material
Aluminium
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


Fiber ports quantity
Fiber ports quantity
1
show more


Fiber optic connector
Fiber optic connector
FX
show more

Power

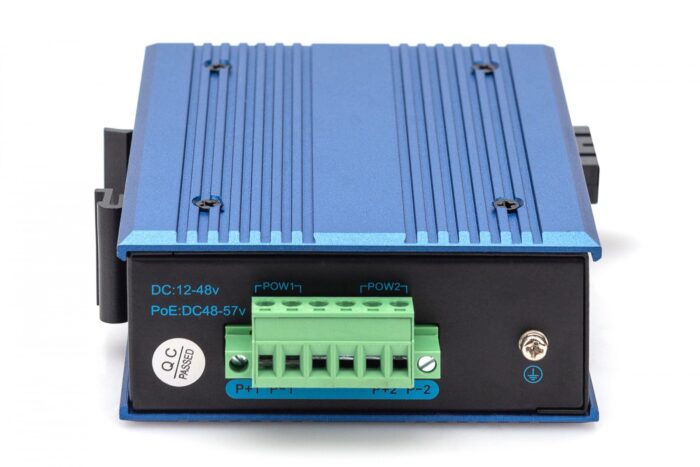

Input voltage
Input voltage
48 – 57 V
show more


Power consumption (typical)
Power consumption (typical)
3 W
show more


Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Total Power over Ethernet (PoE) budget
30 W
show more

Weight & dimensions

Width
Width
118 mm
show more


Depth
Depth
92.4 mm
show more


Height
Height
40 mm
show more


Weight
Weight
400 g
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-40 – 80 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 80 °C
show more

Packaging content

Quick installation guide
Yes
show more

Packaging data

Package width
Package width
135 mm
show more


Package depth
Package depth
54 mm
show more


Package height
Package height
165 mm
show more


Package volume
1202.85 cm³
show more


Package weight
Package weight
558.333 g
show more

Logistics data

UK Trade Tariff code
85176200
show more


Country of origin
Country of origin
China
show more
