1.25 Gbps SFP Module with Multimode LC Duplex Connector, 850nm, Up to 550m

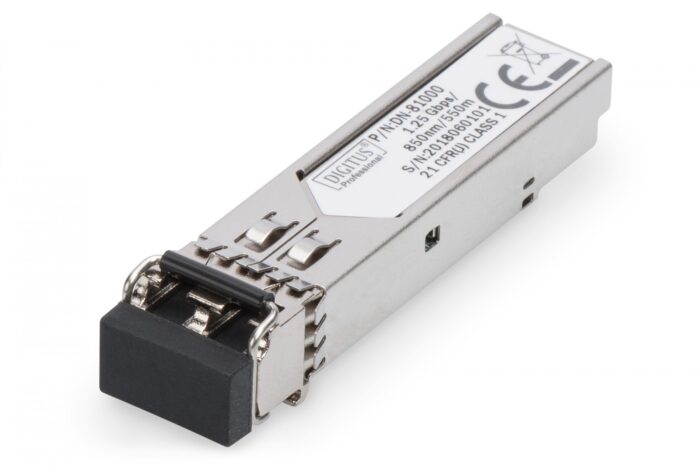

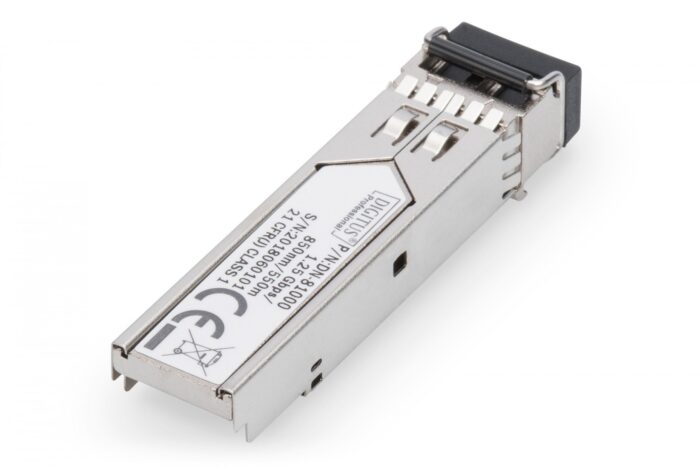

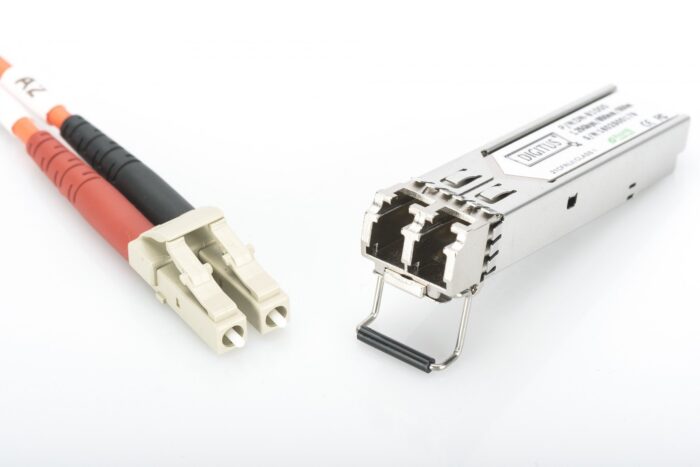

The Digitus mini GBIC (SFP) Module is designed for fiber optic communication, providing a data transfer speed of 1.25 Gbps over a distance of up to 0.55 km. This module uses an SFP transceiver type with an LC fiber optic connector. It is compatible with MSA standards. The module operates on a maximum voltage of 3.3 V. The packaging dimensions are 118 mm in width and 31 mm in depth, with a total package volume of 340.194 cm³. The product is manufactured in China.

Performance

SFP transceiver type
Fiber optic
show more


Interface type
SFP
show more


Multi-mode fiber (MMF) supported
Yes
show more


Fiber optic connector
Fiber optic connector
LC
show more


Fiber cable diameters supported (core/cladding)
50/125 µm
show more


SFP transceiver standard
SX
show more


Maximum transfer distance
Maximum transfer distance
500 m
show more


Wavelength
Wavelength
850 nm
show more


Tx power (min)
-8 dBmW
show more


Tx power (max)
-3 dBmW
show more


Rx power (min)
-20 dBmW
show more


Ethernet interface type
Gigabit Ethernet
show more


Networking standards
Networking standards
IEEE 802.3z
show more


Digital Diagnostics Monitoring (DDM)
No
show more

Features

Plug and Play
Plug and Play
Yes
show more


Brand compatibility
Brand compatibility
MSA Compliant
show more

Power

Maximum voltage
3.3 V
show more

Packaging data

Package width
Package width
118 mm
show more


Package depth
Package depth
31 mm
show more


Package volume
340.194 cm³
show more


Package weight
Package weight
35.417 g
show more

Logistics data

UK Trade Tariff code
85176200
show more


Harmonized System (HS) code
85369010
show more


Country of origin
Country of origin
China
show more
