Gigabit Ethernet PoE+ Injector Hub, 802.3at, 10G 16-port, Power Pins: 3/6(+), 1/2(-), 250W

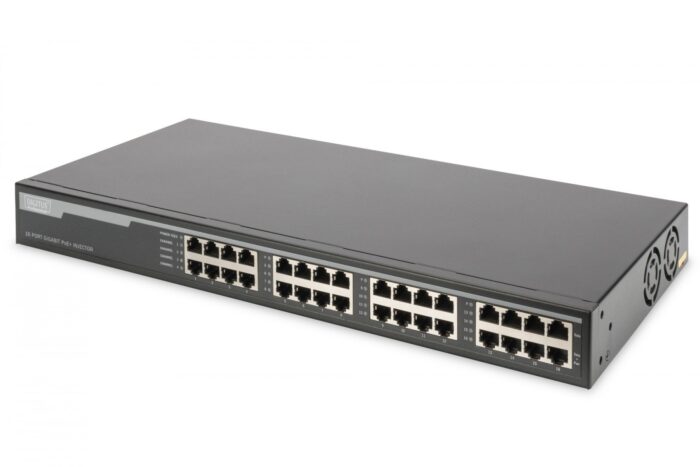

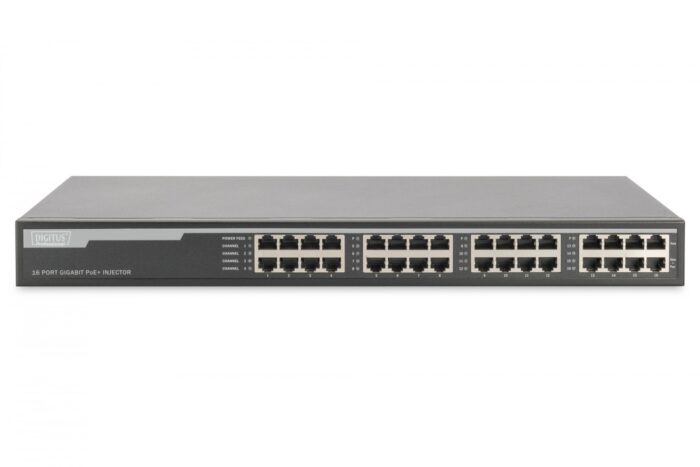

The Digitus 16-port 10G Ethernet PoE+ injector is designed to meet the IEEE 802.3at standard and delivers a total power output of 250 watts. It features 16 RJ-45 Ethernet ports, each capable of supporting Gigabit Ethernet speeds of 10/100/1000 Mbps, allowing for efficient data transfer. The device operates in full duplex mode, ensuring maximized throughput and minimized traffic bottlenecks. It supports networking standards of IEEE 802.3af, providing robust network performance and compatibility. The power connector is an AC-in jack, and the unit supports Power over Ethernet (PoE), enabling both data and power to be delivered over a single cable. Designed for easy installation, the injector is rack-mountable and comes in a compact 1U form factor, making it ideal for professional network setups.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Power connector
AC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3af
show more


10G support
10G support
No
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Grey
show more


LED indicators
Power
show more


On/off switch
On/off switch
Yes
show more

Performance

Plug and Play
Plug and Play
Yes
show more


Mean time between failures (MTBF)
Mean time between failures (MTBF)
100000 h
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Input current
3 A
show more


Power consumption (max)
Power consumption (max)
250 W
show more


Surge protection
Yes
show more


Power protection features
Power protection features
Overload, Short circuit
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
16
show more


Power over Ethernet (PoE) voltage range
1.2 – 3.6 V
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
250 W
show more

Other features

Ethernet interface type
Gigabit Ethernet
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-10 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
0 – 90%
show more


Storage relative humidity (H-H)
0 – 95%
show more

Weight & dimensions

Width
Width
200 mm
show more


Depth
Depth
440 mm
show more


Height
Height
45 mm
show more


Weight
Weight
2.8 kg
show more

Packaging content

Cables included
AC
show more


Quick start guide
Quick start guide
Yes
show more

Packaging data

Package type
Package type
Box
show more


Package width
Package width
280 mm
show more


Package depth
Package depth
500 mm
show more


Package height
Package height
100 mm
show more


Package volume
14000 cm³
show more


Package weight
Package weight
4.17 kg
show more

Logistics data

UK Trade Tariff code
85176200
show more


Country of origin
Country of origin
China
show more


Harmonized System (HS) code
85176990
show more
