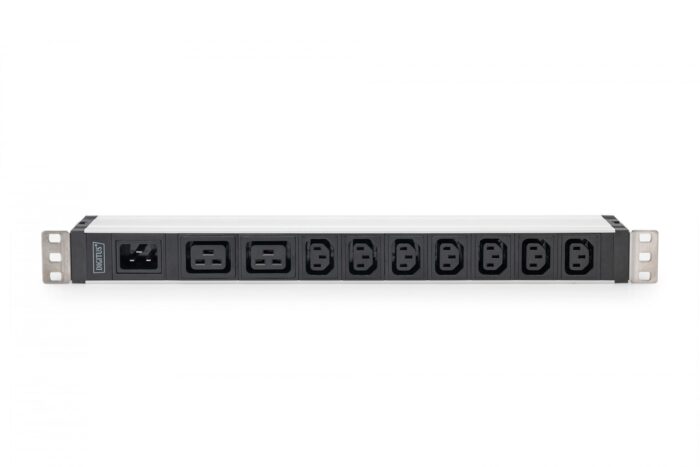

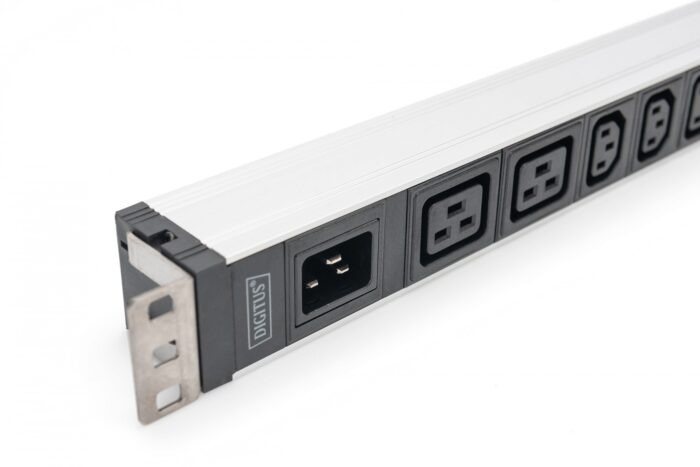

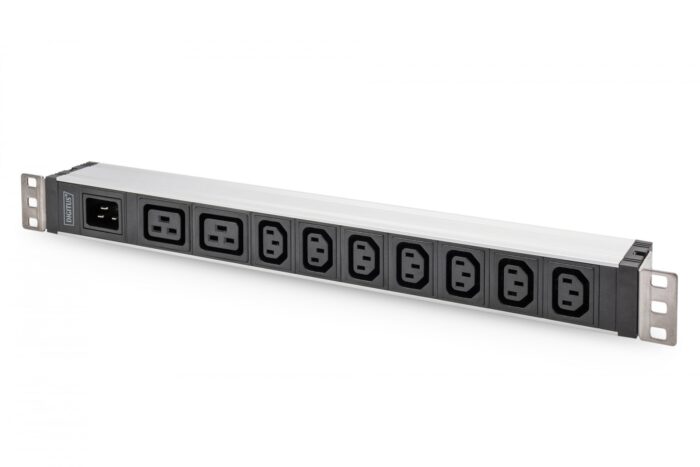

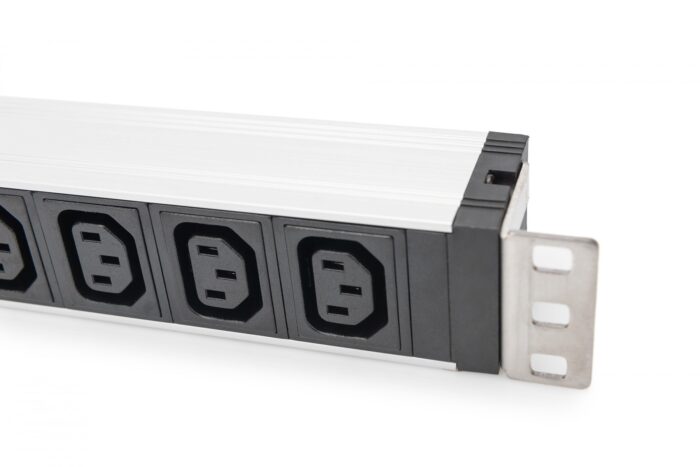

1U Aluminum PDU, Rackmountable, 7 x C13, 2 x C19 16A, 230VAC, 50/60Hz, IEC C20 Inlet

The Digitus Socket Strip features an aluminum profile and offers a 9-way configuration with an IEC C20 input. It is designed for rack use with a capacity of 1U and operates on a single-phase system. This socket strip is mounted horizontally and includes 9 AC outlets. The AC outlet types available are C13 and C19 couplers, while the power plug type is a C20 coupler. It operates on a nominal input voltage of 230 V with a maximum current of 16 A, and it supports an AC input frequency range of 50 to 60 Hz. The dimensions of the socket strip are 45 mm in width, 45 mm in depth, and 482.6 mm in height. The package has a weight of 892 grams and measures 510 mm in width and 97 mm in depth.

Design

Type
Type
Single-phase
show more


Rack capacity
Rack capacity
1U
show more


Mounting
Mounting
Horizontal
show more


Housing material
Housing material
Aluminium, Plastic
show more

Ports & interfaces

AC outlets quantity
AC outlets quantity
9 AC outlet(s)
show more


Power plug
Power plug
C20 coupler
show more


AC outlet types
AC outlet types
C13 coupler, C19 coupler
show more


Master AC outlets quantity
2
show more


Slave AC outlets quantity
7
show more

Power

Nominal input voltage
Nominal input voltage
230 V
show more


AC input frequency
50 – 60 Hz
show more


Maximum current
Maximum current
16 A
show more


Output voltage
230 V
show more


Load capacity
3600 VA
show more


Number of phases
1
show more

Weight & dimensions

Width
Width
45 mm
show more


Depth
Depth
45 mm
show more


Height
Height
482.6 mm
show more


Size (imperial)
Size (imperial)
48.3 cm (19")
show more

Packaging content

Manual
Yes
show more


Rack mount kit
Yes
show more

Packaging data

Package weight
Package weight
892 g
show more


Package width
Package width
510 mm
show more


Package depth
Package depth
97 mm
show more


Package height
Package height
58 mm
show more


Package volume
2869.26 cm³
show more

Logistics data

Country of origin
Country of origin
China
show more
