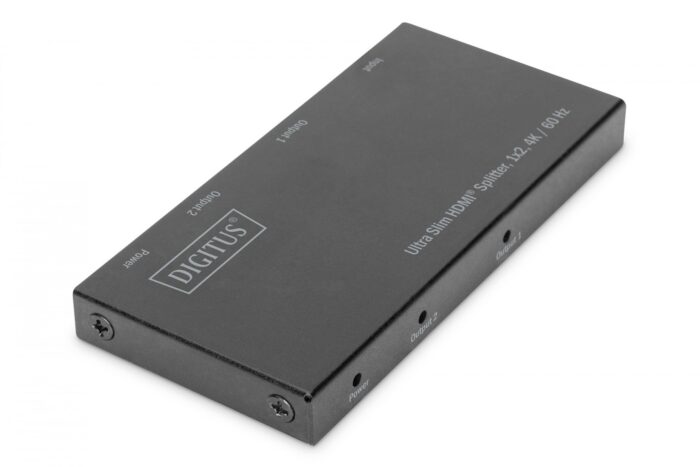

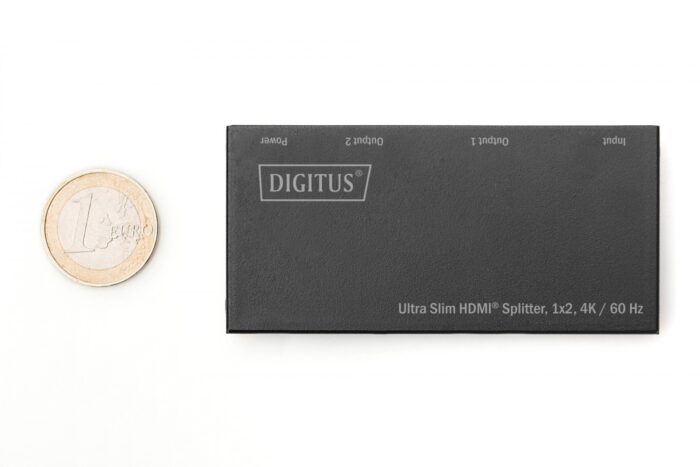

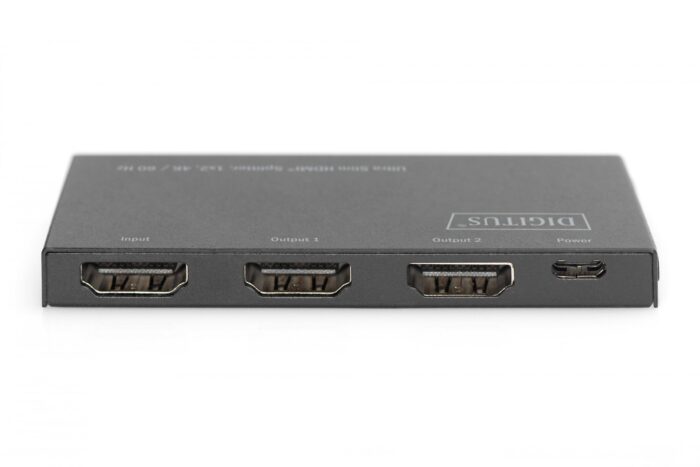

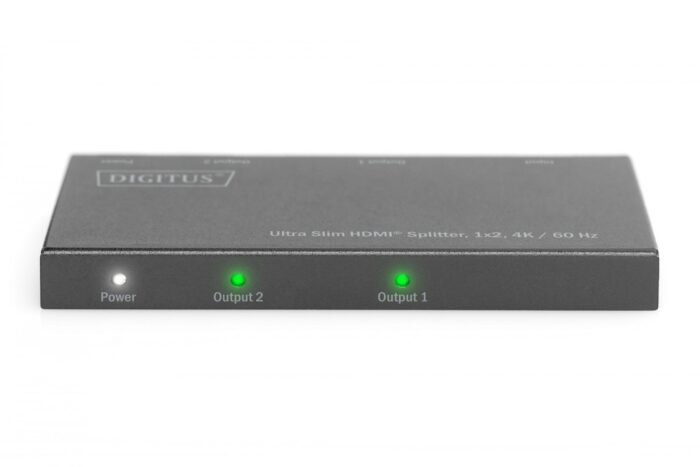

Ultra Slim HDMI Splitter, 1×2, 4K/60Hz HDR, HDCP 2.2, 18 Gbps, Micro USB Powered

The Digitus Ultra Slim HDMI Splitter, 1×2, supports 4K resolution at 60 Hz. It features HDMI as the video port type for both input and output. The maximum supported resolution is 4096 x 2160 pixels. The splitter is black and made from metal. It requires an AC input voltage of 5 V and an input current of 0.4 A, with a typical power consumption of 2 W. The product dimensions are 83 mm in width, 40 mm in depth, and 9 mm in height. The packaging dimensions are 150 mm in width, 110 mm in depth, and 25 mm in height.

Ports & interfaces

Video port type
Video port type
HDMI
show more


Video out
HDMI
show more


HDMI version
1.4
show more


Video ports quantity
Video ports quantity
2
show more

Features

Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


Maximum resolution
Maximum resolution
4096 x 2160 pixels
show more


HD type
HD type
4K Ultra HD
show more


3D
3D
Yes
show more


Colour depth
36 bit
show more


Maximum refresh rate
60 Hz
show more


HDCP
HDCP
Yes
show more


LED indicators
Yes
show more


Plug and Play
Plug and Play
Yes
show more


Certification
CE
show more

Power

AC input voltage
AC input voltage
5 V
show more


Input current
0.4 A
show more


Power consumption (typical)
Power consumption (typical)
2 W
show more


USB powered
USB powered
Yes
show more

Weight & dimensions

Width
Width
83 mm
show more


Depth
Depth
40 mm
show more


Height
Height
9 mm
show more


Weight
Weight
60 g
show more

Packaging data

Package width
Package width
150 mm
show more


Package depth
Package depth
110 mm
show more


Package height
Package height
25 mm
show more


Package weight
Package weight
300 g
show more


Package volume
412.5 cm³
show more

Packaging content

Cables included
Micro-USB
show more


Manual
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 45 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-10 – 80 °C
show more


Operating relative humidity (H-H)
10 – 85%
show more

Technical details

Connector 1
Connector 1
HDMI
show more

Logistics data

Harmonized System (HS) code
85176990
show more


UK Trade Tariff code
85437090
show more


Master (outer) case width
520 mm
show more


Master (outer) case length
320 mm
show more


Master (outer) case height
175 mm
show more


Master (outer) case gross weight
6 kg
show more


Master (outer) case volume
29120 cm³
show more


Products per master (outer) case
20 pc(s)
show more


Country of origin
Country of origin
China
show more
