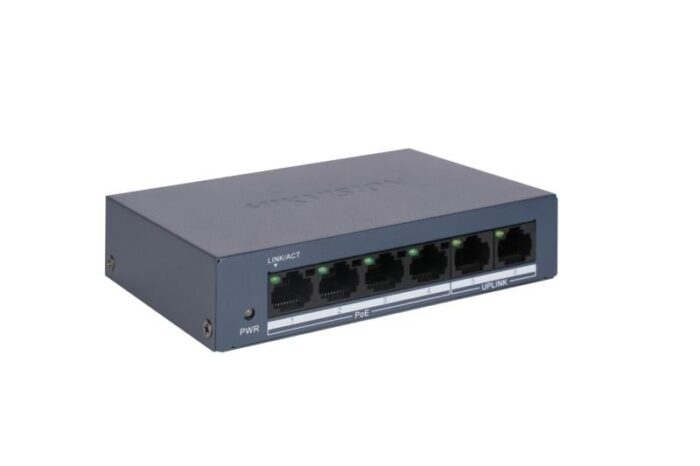

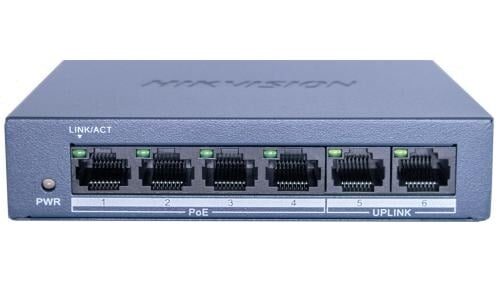

Hikvision DS-XS0106-P Polish POE Switch

The Hikvision DS-XS0106-P/POLISH is an unmanaged switch designed for efficient networking. It features two Fast Ethernet (10/100) RJ-45 ports for basic switching needs. The switch supports a MAC address table with up to 2000 entries and has a switching capacity of 1.2 Gbit/s. It operates with a DC input voltage of 48 V. The device also supports Power over Ethernet (PoE) and can be conveniently mounted on a wall.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
2
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more

Network

10G support
10G support
No
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
1.2 Gbit/s
show more


Forwarding rate
0.89 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more

Security

MAC address filtering
MAC address filtering
Yes
show more

Design

Product colour
Product colour
Dark Blue
show more


Housing material
Housing material
Metal
show more


LED indicators
Yes
show more


Number of fans
Number of fans
0 fan(s)
show more


Wall mountable
Wall mountable
Yes
show more

Power

Power source
Power source
DC
show more


Power supply included
Power supply included
Yes
show more


DC input voltage
48 V
show more


Input current
1.04 A
show more


Power consumption (max)
Power consumption (max)
50 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
4
show more


Total Power over Ethernet (PoE) budget
45 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
121.1 mm
show more


Depth
Depth
83.1 mm
show more


Height
Height
27.6 mm
show more


Weight
Weight
190 g
show more

Packaging data

Package weight
Package weight
630 g
show more

Certificates

Certification
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
show more
