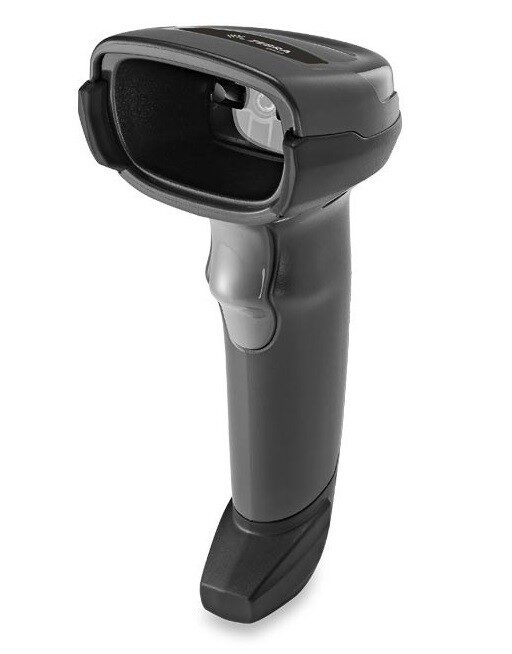

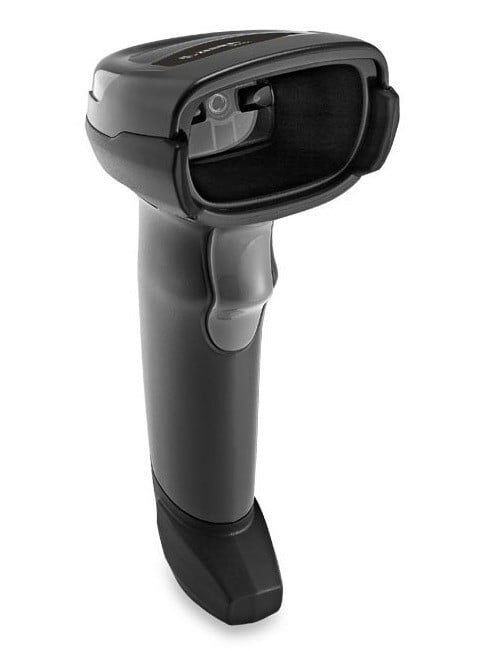

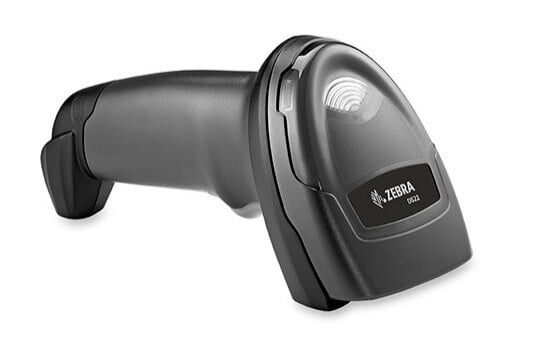

Zebra DS2208 Handheld Bar Code Reader 1D/2D LED Black

The Zebra DS2208 is a handheld bar code reader designed for efficient scanning. It supports both 1D and 2D barcodes and utilizes LED sensor technology. This device offers wired connectivity with standard interfaces including keyboard wedge, RS-232, RS-485, and USB. It also features a wireless range of up to 10 meters. The barcode reader comes in black and is rated with an International Protection (IP) code of IP42, ensuring a certain level of dust and water resistance. The product is certified under various standards, including EN 60950-1 2ed with amendments, IEC 60950-1 2ed, UL 60950-1, and CAN/CSA-C22.2. The power source for the DS2208 is DC, and it is equipped with a Lithium-Ion battery that has a capacity of 2400 mAh. It weighs 161.6 grams and has dimensions of 66 mm in width and 99 mm in depth.

Scanning

Type
Type
Handheld bar code reader
show more


Scanner type
Scanner type
1D/2D
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39
show more


Sensor type
Sensor type
LED
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar Expanded, Interleaved 2 of 5, MSI
show more


Optical sensor resolution (W x H)
640 x 480 pixels
show more


Working distance
36.8 cm
show more


Wavelength
Wavelength
645 nm
show more


Tilt reading angle
-65 – 65°
show more


Pitch reading angle
-65 – 65°
show more


Yaw reading angle
-65 – 65°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
Keyboard wedge, RS-232, RS-485, USB
show more


Wireless range
10 m
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP42
show more


LED indicators
Yes
show more


Product colour
Product colour
Black
show more


Certification
EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
IEC 62471
EN 55022 (Class B); EN 55032 (Class B)
EN 55024
EN 61000-3-2
EN 61000-3-3
47 CFR Part 15, Subpart B, Class B
ICES-003 Issue 6, Class B
show more

Power

Power source type
Power source type
DC
show more


Battery technology
Battery technology
Lithium-Ion (Li-Ion)
show more


Battery capacity
Battery capacity
2400 mAh
show more


Battery life
Battery life
100 h
show more


AC adapter output voltage
5 V
show more


Power consumption
250 mA
show more

Weight & dimensions

Width
Width
66 mm
show more


Depth
Depth
99 mm
show more


Height
Height
165 mm
show more


Weight
Weight
161.6 g
show more

Packaging data

Charging base
No
show more


Cables included
Micro-USB
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more

Technical details

Compliance certificates
RoHS
show more

Logistics data

Harmonized System (HS) code
84716070
show more
