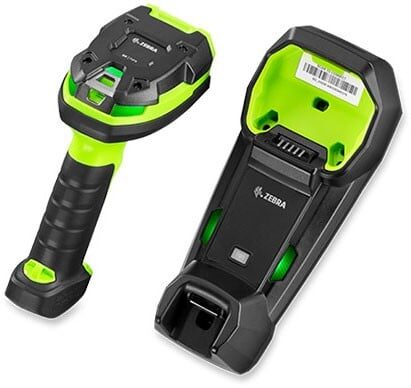

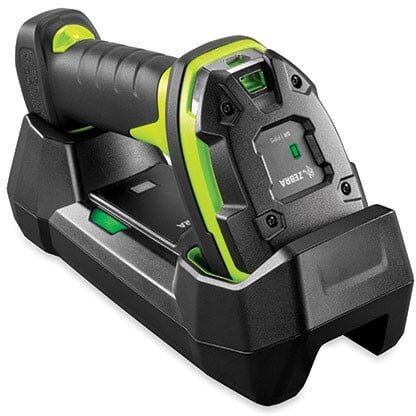

Zebra DS3678-DP Handheld Bar Code Reader 1D/2D Black, Green

The Zebra DS3678-DP is a handheld barcode reader designed to scan both 1D and 2D barcodes. It supports various linear (1D) barcodes including Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, and U.P.C. The device offers both wired and wireless connectivity, with standard interfaces such as RS-232, USB, and keyboard wedge. It operates within a wireless range of up to 100 meters. The product is available in a black and green color scheme and is constructed using durable plastic and rubber materials, maintaining an IP67 international protection rating for excellent resistance against dust and water. The device is powered by a lithium-ion battery with a capacity of 3100 mAh. Its dimensions are 142 mm in width, 76 mm in depth, and 185 mm in height.

Scanning

Type
Type
Handheld bar code reader
show more


Optical sensor resolution
1280 pixels
show more


Scanner type
Scanner type
1D/2D
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
show more


Tilt reading angle
-65 – 65°
show more


Pitch reading angle
-65 – 65°
show more


Yaw reading angle
-45 – 45°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired & Wireless
show more


Standard interfaces
Standard interfaces
RS-232, USB, Keyboard wedge
show more


Wireless range
100 m
show more


Bluetooth Low Energy (BLE)
Yes
show more


Bluetooth version
Bluetooth version
4.0
show more

Performance

Housing material
Housing material
Plastic, Rubber
show more


International Protection (IP) code
International Protection (IP) code
IP67
show more


Protection features
Protection features
Dust resistant, Shock resistant, Water resistant
show more


LED indicators
Yes
show more


Product colour
Product colour
Black, Green
show more


Programming function
Yes
show more

Power

Power source type
Power source type
Battery
show more


Battery technology
Battery technology
Lithium-Ion (Li-Ion)
show more


Battery capacity
Battery capacity
3100 mAh
show more


Number of reads per charge
70000
show more

Weight & dimensions

Width
Width
142 mm
show more


Depth
Depth
76 mm
show more


Height
Height
185 mm
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
-20 – 50 °C
show more

Technical details

Compliance certificates
RoHS
show more

Logistics data

Harmonized System (HS) code
84716070
