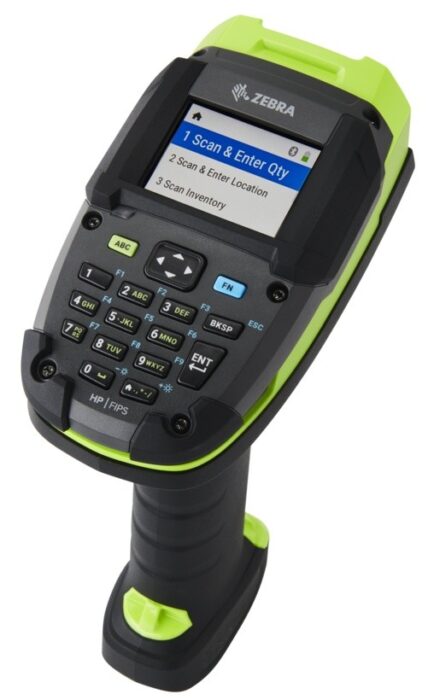

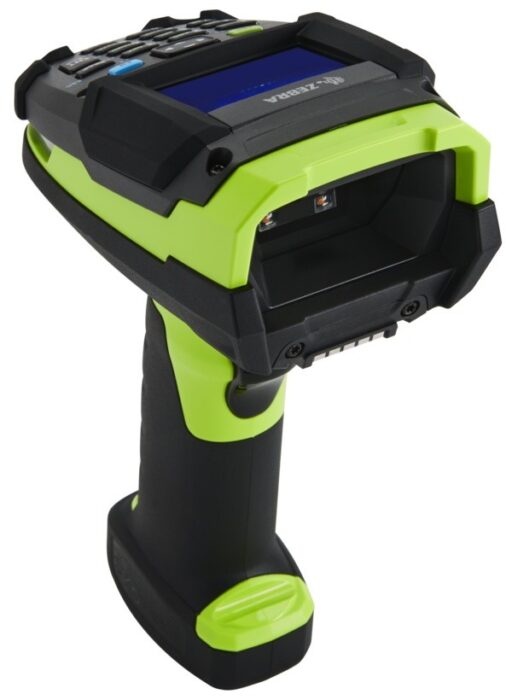

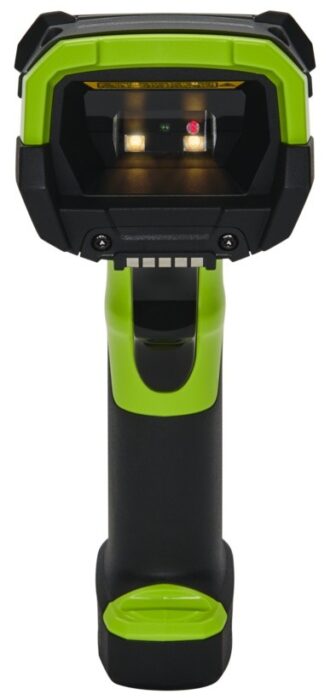

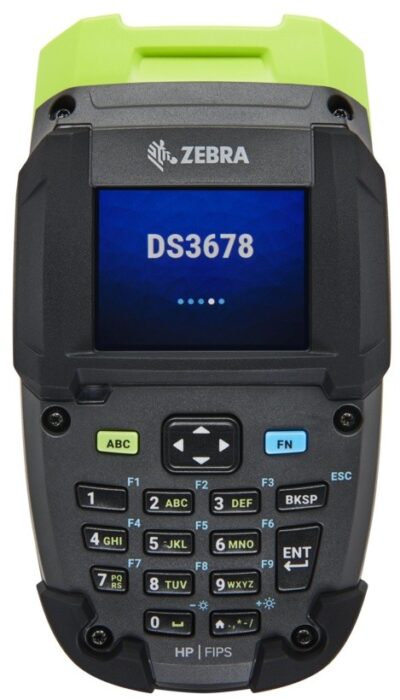

Zebra DS3678 Rugged Cordless Area Imager Keypad and Display – Industrial Green

The Zebra DS3678-HP2F003VKWW is a high-performance barcode scanner designed for logistics applications. It features standard range scanning technology capable of reading both 2D and 1D codes, making it versatile for various scanning needs. With an impressive IP68 rating, this scanner is resistant to dust and waterproof, ensuring durability in challenging environments.

The DS3678 is equipped with a lithium-ion battery boasting a capacity of 3,100 mAh, offering a remarkable battery life of up to 16 hours. This allows for extended use without frequent recharging. The device supports Bluetooth wireless connectivity and has an RS232 interface, making it easy to integrate into existing systems. Additionally, its Optical Character Recognition (OCR) capability enhances functionality by providing advanced data capture options.

This model is part of Zebra's commitment to delivering superior technology, ensuring users benefit from optimal performance and reliability. For added peace of mind, Zebra offers the OneCare service package, which provides direct support and maintenance options to keep your device running smoothly.

Scanning

Type
Type
Handheld bar code reader
show more


Scanner type
Scanner type
1D/2D
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
show more


Sensor type
Sensor type
Laser
show more


Wavelength
Wavelength
655 nm
show more


Tilt reading angle
-65 – 65°
show more


Pitch reading angle
-65 – 65°
show more


Yaw reading angle
-45 – 45°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired & Wireless
show more


Standard interfaces
Standard interfaces
Keyboard wedge, RS-232, USB
show more


Wireless range
100 m
show more


Bluetooth Low Energy (BLE)
Yes
show more


Bluetooth version
Bluetooth version
4.0
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP67
show more


Protection features
Protection features
Dust resistant, Shock resistant, Water resistant
show more


LED indicators
Yes
show more


Product colour
Product colour
Black, Green
show more


Programming function
Yes
show more

Power

Power source type
Power source type
Battery
show more


Battery technology
Battery technology
Lithium-Ion (Li-Ion)
show more


Battery capacity
Battery capacity
3100 mAh
show more


Number of reads per charge
100000
show more

Weight & dimensions

Width
Width
142 mm
show more


Depth
Depth
76 mm
show more


Height
Height
185 mm
show more


Weight
Weight
411 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
-20 – 50 °C
show more
