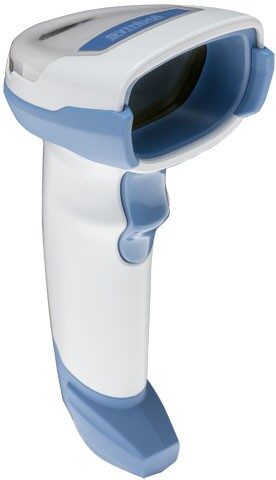

Zebra Symbol DS4308-SR Handheld Bar Code Reader 2D White

The Motorola Symbol DS4308-SR is a handheld bar code reader designed for efficient and accurate scanning. This device is capable of reading various 2D barcodes including Han Xin, Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, and PDF417. It offers wired connectivity technology for reliable performance. The product has a sleek white color and complies with several certifications, including UL60950-1 2nd edition, CSA C22.2 No. 60950-1 2nd edition, and EN60950-1/IEC60950-1 2nd edition, as well as IEC 62471:2006. The scanner operates at an input voltage of 5 V and has a power consumption of 360 mA. It weighs 162 grams and has dimensions of 67 mm in width and 98 mm in depth.

Scanning

Type
Type
Handheld bar code reader
show more


Scanner type
Scanner type
2D
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Han Xin, Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
show more


Pitch reading angle
-65 – 65°
show more


Yaw reading angle
-60 – 60°
show more


Motion tolerance (cm/s)
76.2
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more

Performance

LED indicators
Yes
show more


Buzzer
Yes
show more


Built-in display
Built-in display
No
show more


Product colour
Product colour
White
show more


Certification
UL60950-1 2nd ed, CSA C22.2 No. 60950-1 2nd ed, EN60950-1/IEC60950-1 2nd ed.

IEC 62471:2006 and EN 62471:2008

FCC Part 15 Class B, ICES-003 Class B,
EN55022 Class B, EN55024, Medical
Electrical Equipment: EN60601-1-2

show more

Power

Input voltage
Input voltage
5 V
show more


Power consumption
360 mA
show more

Weight & dimensions

Width
Width
67 mm
show more


Depth
Depth
98 mm
show more


Height
Height
165 mm
show more


Weight
Weight
162 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more

Technical details

Compliance certificates
RoHS
show more

Logistics data

Harmonized System (HS) code
84716070
show more
