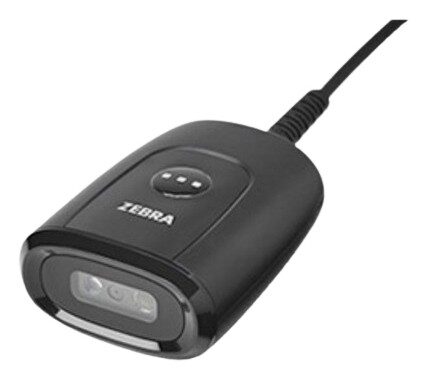

Zebra DS5502 Fixed Bar Code Reader 1D/2D LED Black

The Zebra DS5502 is a fixed bar code reader designed for scanning both 1D and 2D barcodes. It utilizes an LED sensor type for its scanning needs. The device connects via wired technology and supports standard interfaces such as RS-232 and USB. It comes in a sleek black color and is built with an International Protection (IP) rating of IP54, indicating a good level of protection against dust and water ingress. Additionally, it features Electrostatic Discharge (ESD) protection to safeguard against static electricity. The power source for the Zebra DS5502 is DC, operating with an input voltage of 4.75 V and a power consumption rate of 360 mA. The scanner is lightweight, weighing only 65.2 grams, and has dimensions of 72 mm in width and 30 mm in depth.

Scanning

Type
Type
Fixed bar code reader
show more


Scanner type
Scanner type
1D/2D
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, EAN 2, EAN 5, GS1 DataBar, MSI-Plessey, PDF417, U.P.C.
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
show more


Sensor type
Sensor type
LED
show more


Optical sensor resolution (W x H)
1280 x 800 pixels
show more


Horizontal field of view
48°
show more


Vertical field of view
30°
show more


Wavelength
Wavelength
525 nm
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
RS-232, USB
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP54
show more


Protection features
Protection features
Electrostatic Discharge (ESD) protection
show more


Product colour
Product colour
Black
show more

Power

Power source type
Power source type
DC
show more


Input voltage
Input voltage
4.75 V
show more


Power consumption
360 mA
show more

Weight & dimensions

Width
Width
72 mm
show more


Depth
Depth
30 mm
show more


Height
Height
56 mm
show more


Weight
Weight
65.2 g
show more

Packaging data

External power adapter
Yes
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
-20 – 50 °C
show more

Certificates

Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
show more

Technical details

Compliance certificates
China RoHS, REACH, RoHS
show more
