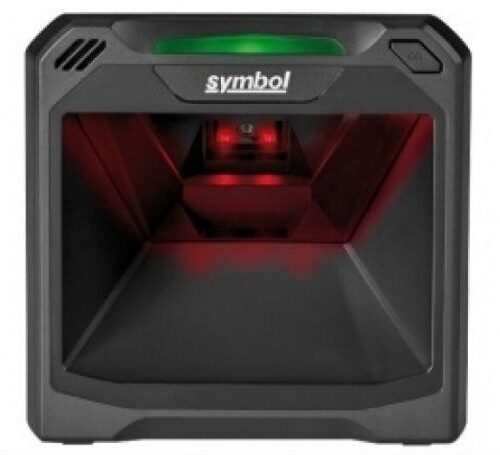

Zebra DS7708 Fixed Bar Code Reader 1D/2D LED Black

The Motorola DS7708 is a fixed bar code reader designed for efficient and versatile scanning. It is capable of reading both 1D and 2D barcodes, utilizing a LED sensor for accurate capture. This device offers wired connectivity, primarily through standard USB interfaces, ensuring reliable data transfer. The product is presented in a sleek black color and holds an International Protection code of IP52, indicating its resistance to dust and water spray. It operates with a DC power source at an input voltage of 5 volts, and consumes 480 mA of power. The scanner is compact in its dimensions, weighing 500 grams, with a width of 149 mm and a depth of 97 mm.

Scanning

Type
Type
Fixed bar code reader
show more


Scanner type
Scanner type
1D/2D
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
show more


Sensor type
Sensor type
LED
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C.
show more


Motion tolerance (cm/s)
254
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
USB
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP52
show more


Built-in display
Built-in display
No
show more


Product colour
Product colour
Black
show more

Power

Power source type
Power source type
DC
show more


Input voltage
Input voltage
5 V
show more


Power consumption
480 mA
show more

Weight & dimensions

Width
Width
149 mm
show more


Depth
Depth
97 mm
show more


Height
Height
143 mm
show more


Weight
Weight
500 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 85%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more

Logistics data

Harmonized System (HS) code
84716070
show more
