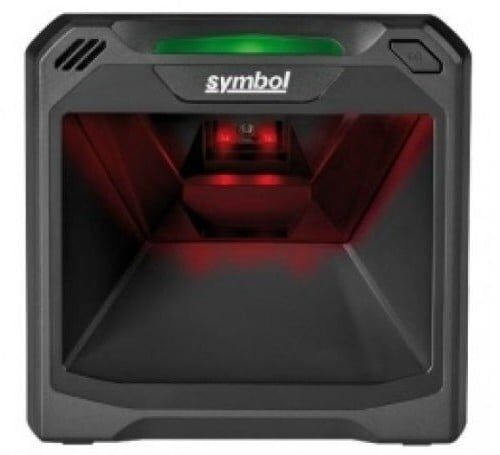

Zebra DS7708 Fixed Bar Code Reader 1D/2D LED Black

The Motorola DS7708 is a fixed bar code reader designed for efficient scanning of both 1D and 2D codes. It utilizes LED sensor technology to ensure accurate reading. The device supports wired connectivity and includes standard RS-232 interfaces for easy integration. It comes in a sleek black color. The scanner is rated with an International Protection (IP) code of IP52, indicating resistance to dust and water spray. It requires a DC power source with an input voltage of 5V and has a power consumption of 480 mA. The device is portable, weighing 500 grams, and has dimensions of 149 mm in width and 97 mm in depth.

Scanning

Type
Type
Fixed bar code reader
show more


Scanner type
Scanner type
1D/2D
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
show more


Sensor type
Sensor type
LED
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C.
show more


Motion tolerance (cm/s)
254
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
RS-232
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP52
show more


Built-in display
Built-in display
No
show more


Product colour
Product colour
Black
show more

Power

Power source type
Power source type
DC
show more


Input voltage
Input voltage
5 V
show more


Power consumption
480 mA
show more

Weight & dimensions

Width
Width
149 mm
show more


Depth
Depth
97 mm
show more


Height
Height
143 mm
show more


Weight
Weight
500 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 85%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more

Logistics data

Harmonized System (HS) code
84716070
show more
