Zebra DS7708-SR Midnight Black, Checkpoint EAS, USB Kit: DS7708-SR00004ZCWW Scanner, CBA-U23-S07ZBR Shielded USB Power+ Cable, Table Mount (11-TM0077-04)

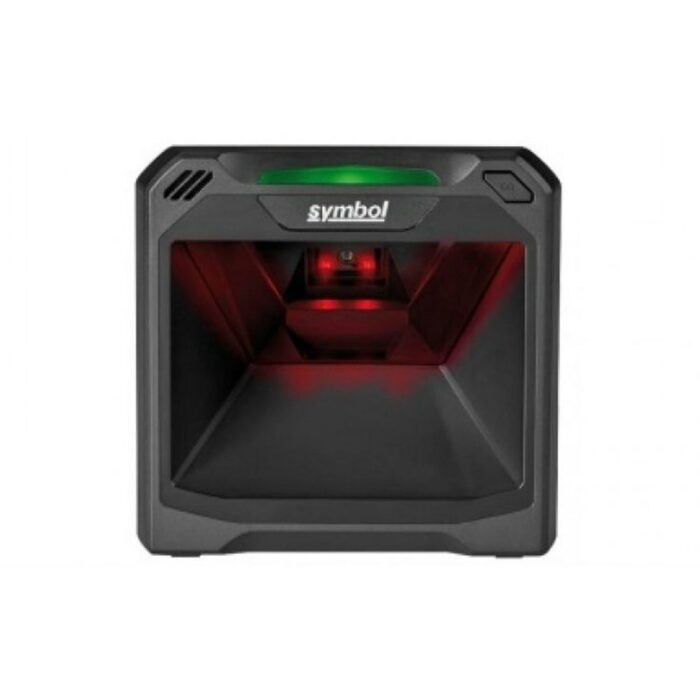

The Zebra DS7708 is a fixed barcode reader designed for both 1D and 2D scanning. It uses LED sensor technology to provide accurate and efficient scanning capabilities. This device connects via wired technology and supports standard interfaces such as USB, RS-232, RS-485, and a keyboard wedge, ensuring versatile connectivity options. The scanner is finished in black and has an International Protection (IP) code of IP52, indicating solid protection against dust and water. It is powered via USB with an input voltage of 12 V. The Zebra DS7708 weighs 500 grams and has dimensions of 149 mm in width and 97 mm in depth.

Scanning

Type
Type
Fixed bar code reader
show more


Scanner type
Scanner type
1D/2D
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, MSI, Plessey, U.P.C.
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
show more


Sensor type
Sensor type
LED
show more


Wavelength
Wavelength
660 nm
show more


Tilt reading angle
0 – 360°
show more


Pitch reading angle
-70 – 70°
show more


Yaw reading angle
-70 – 70°
show more


Motion tolerance (cm/s)
254
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
USB, RS-232, RS-485, Keyboard wedge
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP52
show more


Product colour
Product colour
Black
show more

Power

Power source type
Power source type
USB
show more


Input voltage
Input voltage
12 V
show more

Weight & dimensions

Width
Width
149 mm
show more


Depth
Depth
97 mm
show more


Height
Height
143 mm
show more


Weight
Weight
500 g
show more

Packaging data

Cables included
USB
show more

Operational conditions

Operating relative humidity (H-H)
5 – 85%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more

Logistics data

Harmonized System (HS) code
84716070
show more
