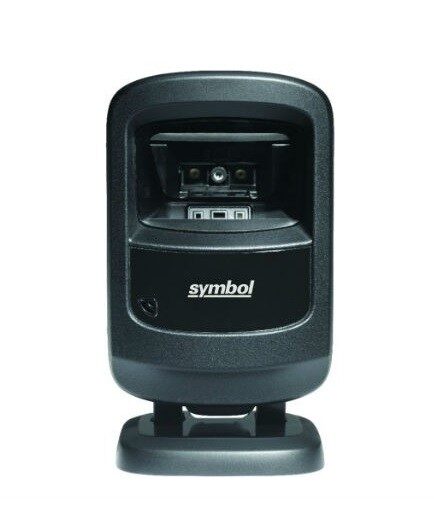

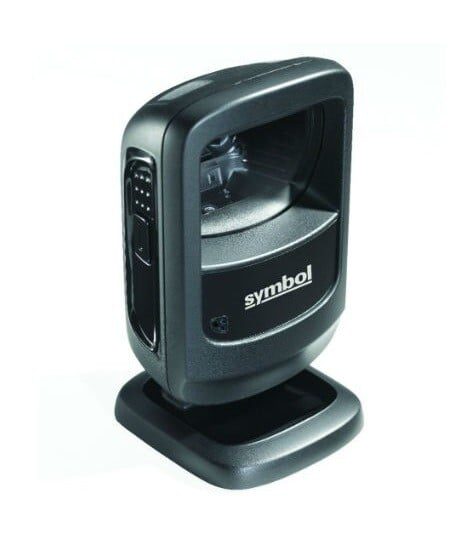

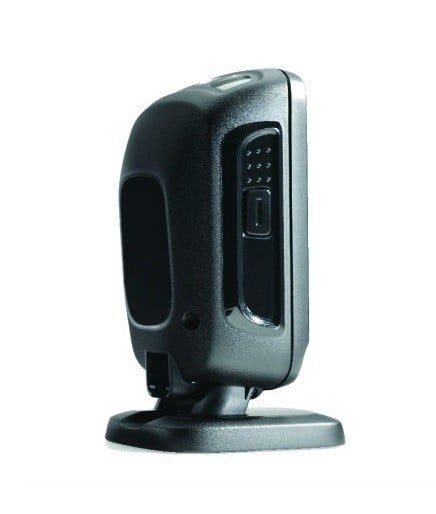

Zebra DS9208 Fixed Bar Code Reader 1D/2D Black

The Zebra DS9208 is a fixed bar code reader designed for efficient and versatile scanning. It supports both 1D and 2D scanning capabilities. The reader can accurately process various linear (1D) barcodes, including Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), and JAN. It utilizes wired connectivity technology and is compatible with standard interfaces such as USB and RS-232. The device offers a data transfer rate of 12 Mbit/s, ensuring quick and reliable data communication. The Zebra DS9208 boasts a sleek black finish and operates using a DC power source. Its compact design has a weight of 269 grams, a width of 82 millimeters, and a depth of 80 millimeters.

Scanning

Type
Type
Fixed bar code reader
show more


Scanner type
Scanner type
1D/2D
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, TLC-39
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), JAN
show more


Wavelength
Wavelength
630 nm
show more


Tilt reading angle
-360 – 360°
show more


Pitch reading angle
-65 – 65°
show more


Yaw reading angle
-60 – 60°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
USB, RS-232
show more


USB version
USB version
2.0
show more


Data transfer rate
Data transfer rate
12 Mbit/s
show more

Performance

Product colour
Product colour
Black
show more

Power

Power source type
Power source type
DC
show more

Weight & dimensions

Width
Width
82 mm
show more


Depth
Depth
80 mm
show more


Height
Height
140 mm
show more


Weight
Weight
269 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 85%
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more

Technical details

Compliance certificates
RoHS
show more
