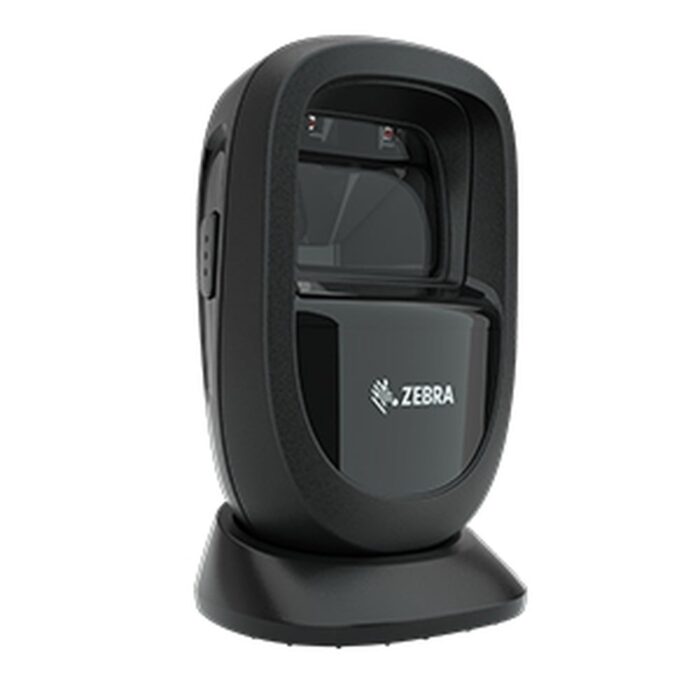

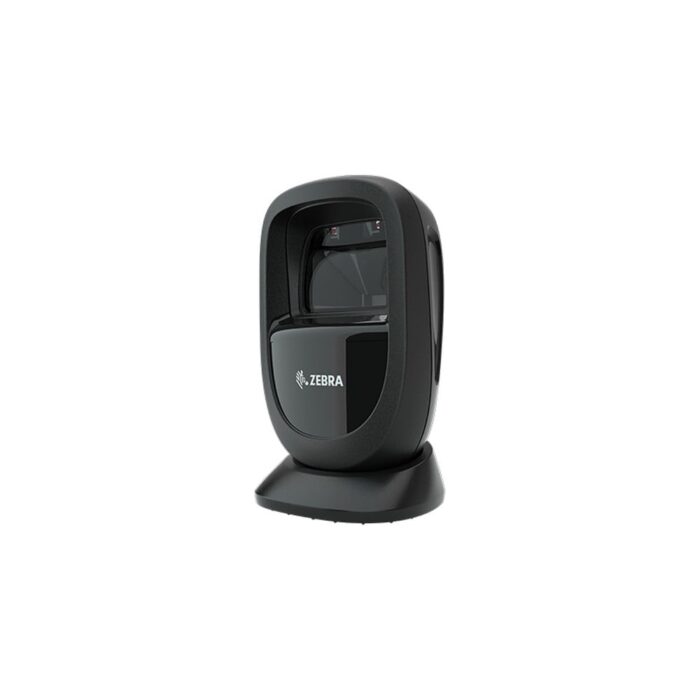

Zebra DS9308-SR Fixed Bar Code Reader 1D/2D LED Black

The Zebra DS9308-SR is a fixed barcode reader designed to scan both 1D and 2D barcodes. It utilizes an LED sensor for scanning. This device offers wired connectivity with standard interfaces that include RS-232 and USB. The scanner comes in a sleek black color and boasts an International Protection (IP) rating of IP52, ensuring certain levels of protection against dust and water. It has several certifications, including EN 50581:2012, RoHS 2011/65/EU (2015/863), IEC 63000, REACH 1907/2006, and IEC 62368-1. The power source for the device is provided via RS-232 or USB, with an input voltage requirement of 5.5 volts. Compact in size, the scanner weighs 318 grams, with dimensions of 86 mm in width and 83 mm in depth.

Scanning

Type
Type
Fixed bar code reader
show more


Scanner type
Scanner type
1D/2D
show more


Linear (1D) barcodes supported
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar, MSI, U.P.C.
show more


2D (matrix & stacked) barcodes supported
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
show more


Sensor type
Sensor type
LED
show more


Optical sensor resolution (W x H)
1280 x 800 pixels
show more


Working distance
66 cm
show more


Light levels (direct sunlight)
0 – 107700 lx
show more


Pitch reading angle
-60 – 60°
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Standard interfaces
Standard interfaces
RS-232, USB
show more

Performance

International Protection (IP) code
International Protection (IP) code
IP52
show more


Product colour
Product colour
Black
show more


Certification
EN 50581:2012, RoHS 2011/65/EU (2015/863) – EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS
show more

Power

Power source type
Power source type
RS-232, USB
show more


Input voltage
Input voltage
5.5 V
show more

Weight & dimensions

Width
Width
86 mm
show more


Depth
Depth
83 mm
show more


Height
Height
145 mm
show more


Weight
Weight
318 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more

Logistics data

Harmonized System (HS) code
84716070
