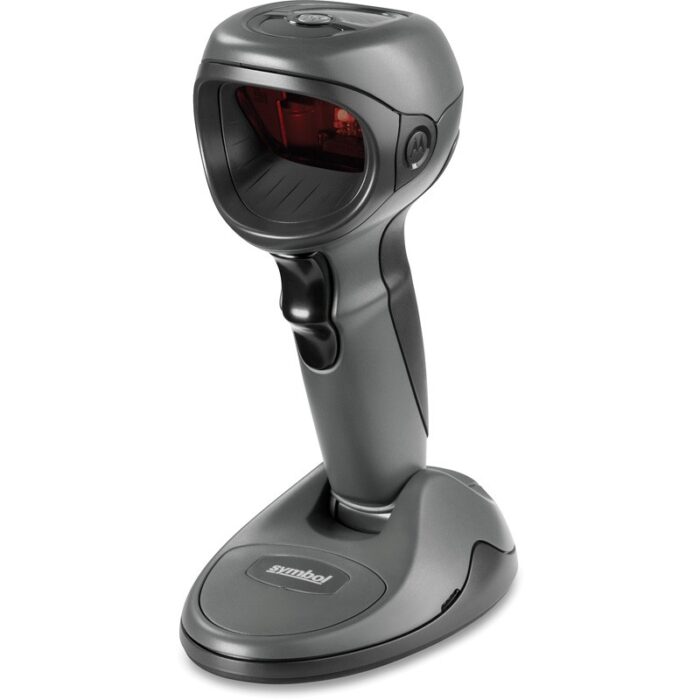

Zebra DS9808 Black

The Motorola DS9808 is a versatile scanning device with impressive features. It has a maximum read rate of 60 reads per second. The device is capable of tilt reading at angles ranging from -180 to 180 degrees and pitch reading from -65 to 65 degrees. It is equipped with standard interfaces including RS-232 and USB, and comes with a 1.5-meter cable length for flexibility in use. The scanner is aesthetically designed in a sleek black color and features LED indicators for power status. In compliance with safety and quality standards, it is certified with RoHS, FCC, VCCI, and UL. The device operates with an input voltage of 5 volts and has a power consumption of 450 milliampere. It weighs just 340 grams, making it a lightweight and efficient tool for various scanning needs.

Scanning

Read rate (max)
60 reads/s
show more


Tilt reading angle
-180 – 180°
show more


Pitch reading angle
-65 – 65°
show more


Yaw reading angle
-60 – 60°
show more


Decoding standards
UPC/EAN
Code 39
Code 39 Full ASCII
Code 39 Trioptic
Code 128
Code 128 Full ASCII
UCC/EAN-128
ISBT-128
Code 93
Codabar/NW7
Code 11
Code 11 Matrix 2/5
MSI Plessey
I 2/5
Discrete 2/5
IATA
Chinese 2/5
GS1 DataBar
Base 32
PDF417
MicroPDF417
TLC-39
Aztec
MaxiCode
DataMatrix/ECC 200
QR Code
show more

Ports & interfaces

Standard interfaces
Standard interfaces
RS-232, USB
show more


Cable length
Cable length
1.5 m
show more

Performance

LED indicators
Power
show more


Product colour
Product colour
Black
show more


Certification
RoHS, FCC, VCCI, UL
show more

Power

Input voltage
Input voltage
5 V
show more


Power consumption
450 mA
show more

Weight & dimensions

Weight
Weight
340 g
show more

Operational conditions

Operating relative humidity (H-H)
5 – 95%
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more

Other features

Light source
650 nm
show more


Safety
Safety
UL6950-1, CSA C22.2 No. 60950-1, EN60950-1 / IEC60950-1, EN 60825-1,IEC 60825-1, 21CFR1040.10, CDRH Class II, IEC Class 2
show more


Dimensions (WxDxH)
Dimensions (WxDxH)
86 x 137 x 203 mm
show more
